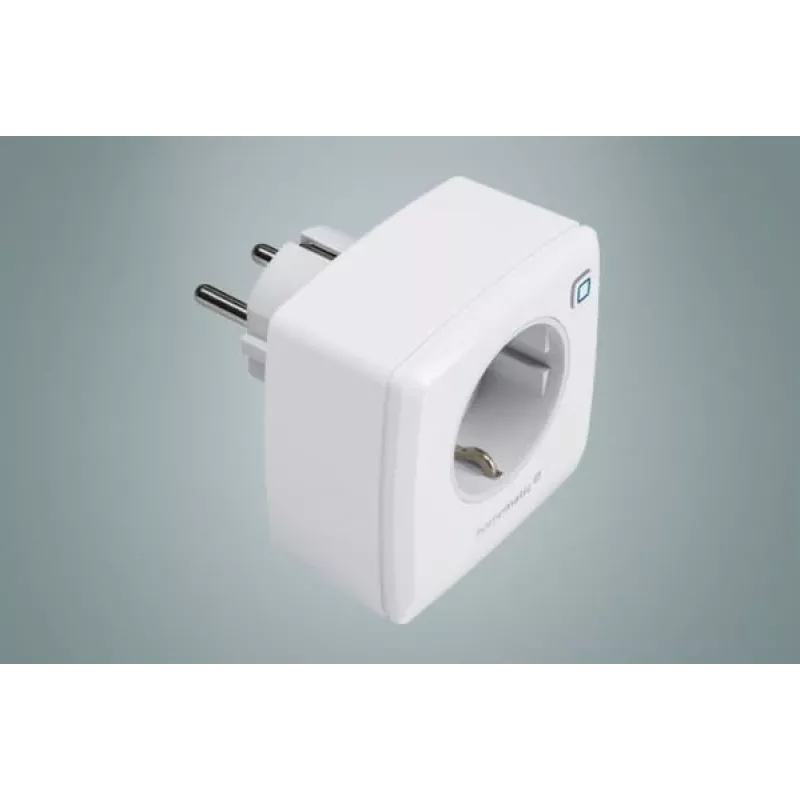

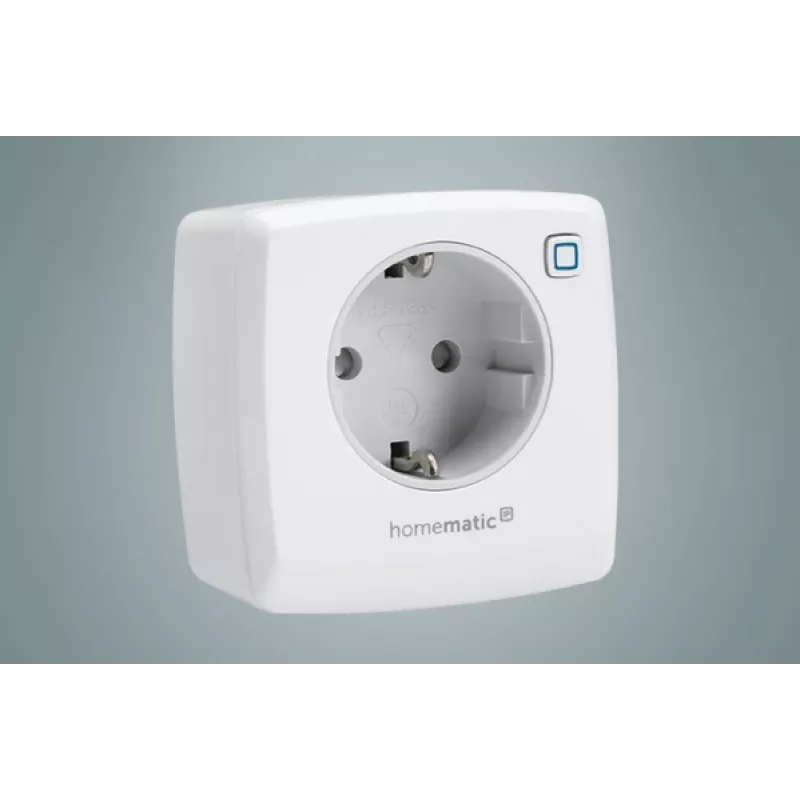

Dimmer & schakelaar eQ-3 AG HmIP-PDT extern wit

The eQ-3 AG HmIP-PDT External White is a compact external dimmer and switch designed for integration into HomeMatic smart home systems. It accepts an AC input voltage of 230 V at 50 Hz and communicates via RF at 868 MHz. With an IP20 rating and small dimensions of 70 mm x 39 mm x 70 mm, this white device is intended for indoor installation where reliable remote control of lighting and switching functions is required.

Advantages

The device combines dimming and switching functions in a single compact unit, enabling both brightness control and on/off switching without additional modules. Radio communication at 868 MHz provides compatibility with HomeMatic IP networks and supports remote operation. Its small footprint and lightweight design simplify mounting in confined spaces behind fixtures or in distribution boxes. The IP20 protection class makes it suitable for indoor environments while the neutral white finish integrates unobtrusively with common interior styles.

Suitable for

• Controlling indoor lighting circuits in a HomeMatic smart home
• Dimming LED or incandescent luminaires compatible with phase-controlled dimming
• Replacing or extending wall switch functionality where a compact external module is needed

Key specifications

• AC input voltage: 230 V
• Input frequency: 50 Hz
• RF transmission frequency: 868 MHz
• Protection rating: IP20 (indoor use)
• Dimensions: 70 mm x 39 mm x 70 mm
• Weight: 0.138 kg
• Colour: White

How to use

Install the eQ-3 AG HmIP-PDT External White in accordance with local electrical regulations and HomeMatic installation instructions. Mount the unit in a dry indoor location or inside an electrical distribution box where space permits. Connect the live and neutral conductors to the device input and the switched outputs to the lighting circuit. Pair the module with a HomeMatic IP central unit or compatible gateway using the prescribed inclusion procedure to enable RF control and configuration. After commissioning, adjust dimming and switch behavior through the home automation interface.

Recommendations

Use the device only indoors in dry environments and ensure compatibility of connected lamps with phase-controlled dimming. Follow manufacturer instructions for electrical connections and pairing with HomeMatic systems. For installations inside distribution boxes or behind fixtures, allow adequate ventilation and avoid exposure to moisture or direct heat sources.
