DSIT 32U 19 inch outdoor-serverkast 600x1000x1600mm IP55 (DS6032-OUT)

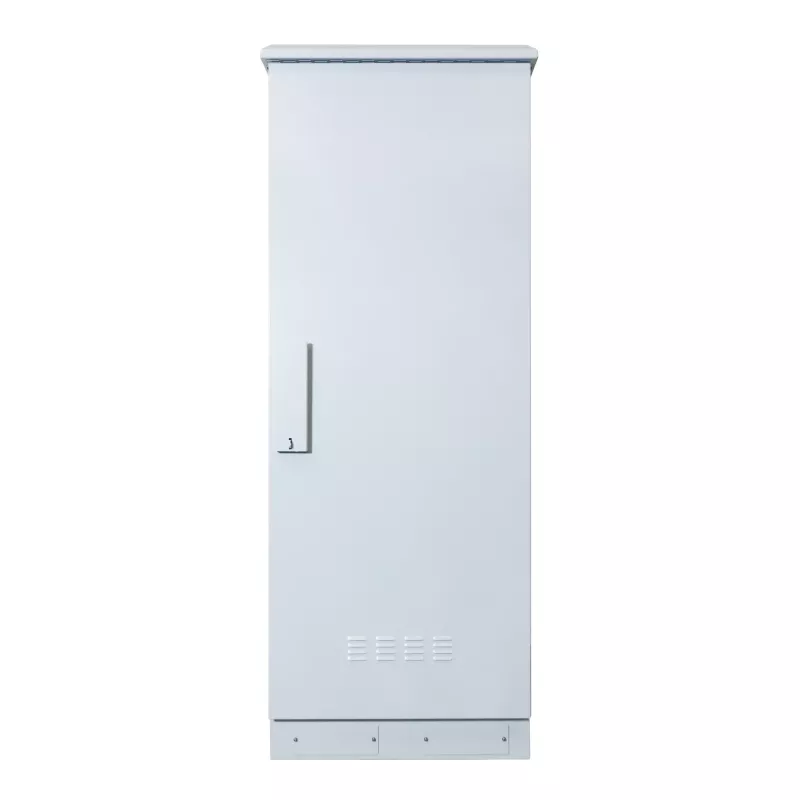

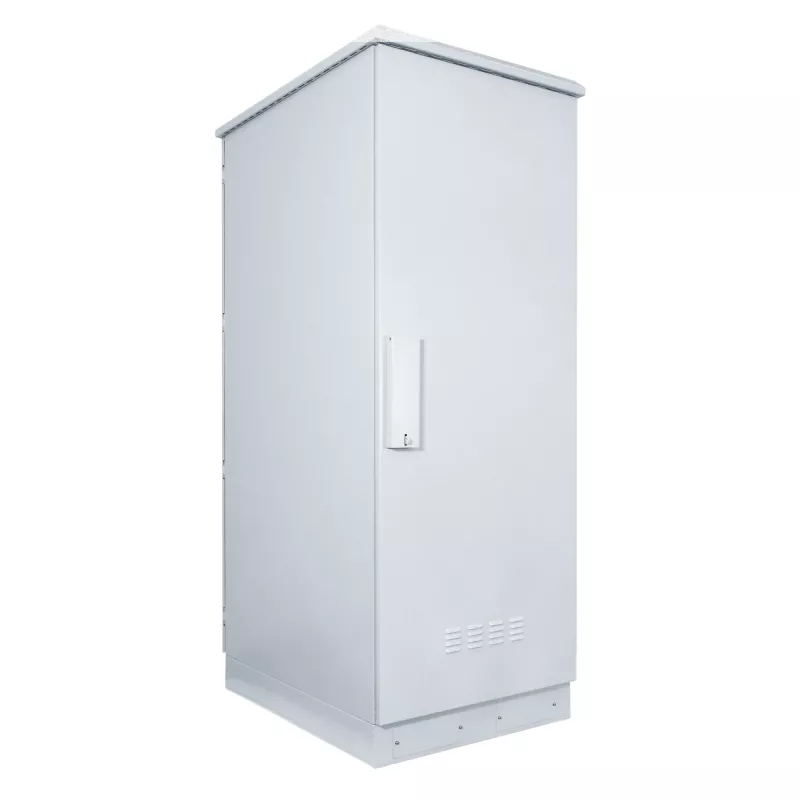

Outdoor server cabinet with 32U of 19-inch rack space, built to house network and server equipment in exposed locations. The IP55-rated enclosure protects against dust and water jets, while the powder-coated steel body delivers long-term durability.

Advantages

This cabinet offers a robust welded frame with a lockable front door and a 3-point locking system. Passive ventilation with filtered air inlets keeps equipment cool without active fans. Integrated grounding and multiple gland plates simplify cable management.

Suitable for

• Outdoor IT installations in industrial or campus environments
• Network switches, servers, and UPS systems requiring weather protection
• Applications needing secure, floor-standing rack infrastructure

Key specifications

• Rack capacity: 32U
• External dimensions (WxDxH): 600 x 1000 x 1600 mm
• Ingress protection: IP55
• Material: Powder-coated steel
• Colour: RAL 7035 light grey
• Static load capacity: 800 kg

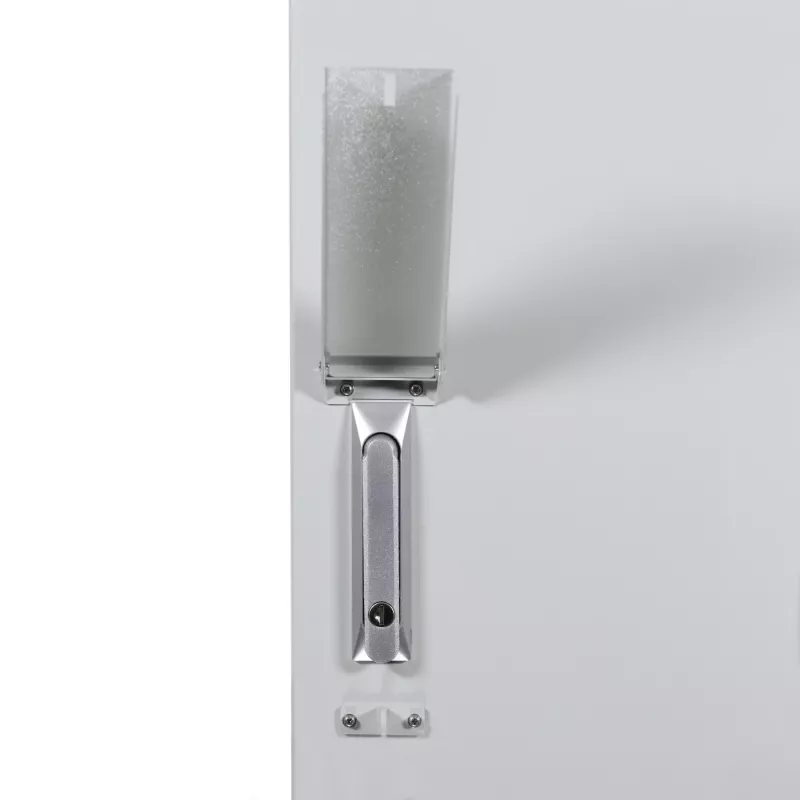

• Locking: Front door with 3-point locking system

Recommendations

Verify that the installation site can support the cabinet's weight and that cable entry points align with your conduit layout. For added security, consider anchoring the cabinet to a concrete pad.
