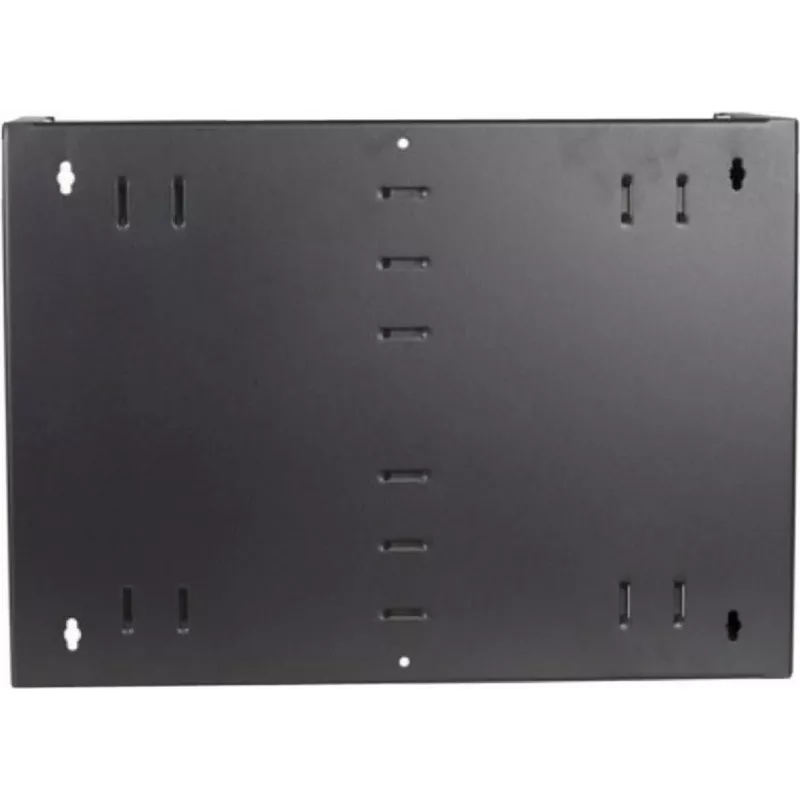

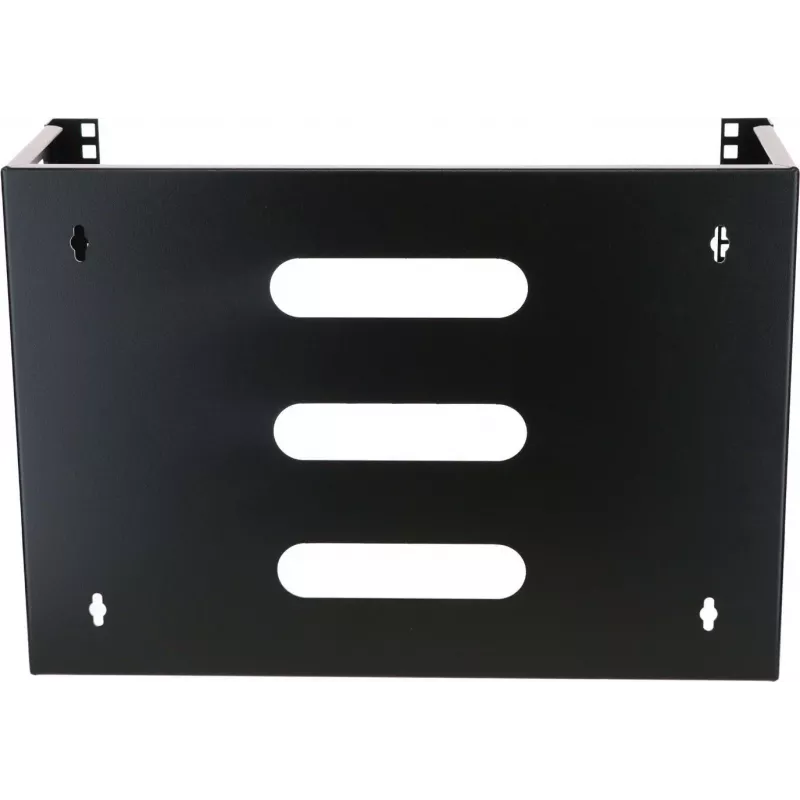

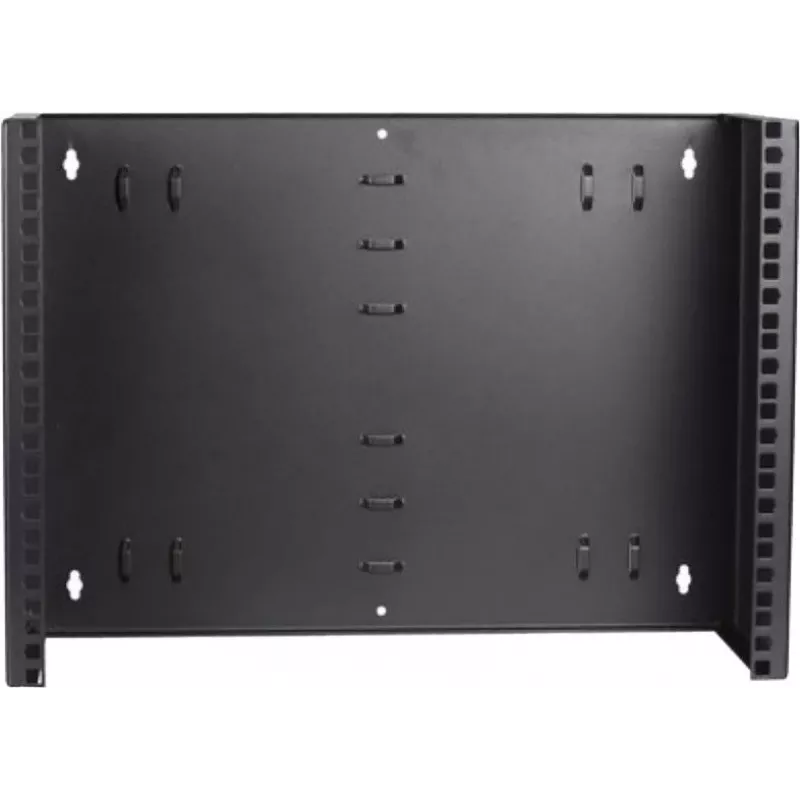

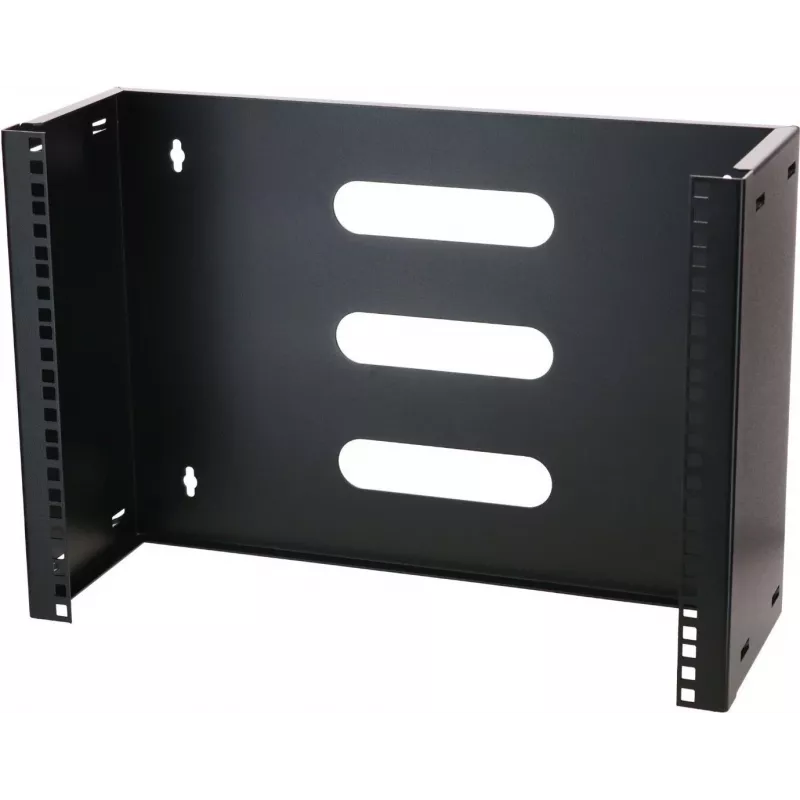

DSIT 8U 19-inch wandmontage vast frame, 180 mm diepte, zwart (DS-WMB8-S)

Wall-mounting 19-inch equipment often means choosing between bulky floor-standing racks and flimsy brackets that sag under load. The DSIT DS-WMB8-S solves this by providing a fixed, open-frame wall rack that holds up to 8U of standard 19-inch gear in a compact 180 mm depth. Its steel construction and powder-coated black finish deliver a robust, space-saving solution for network, server, and AV installations where floor space is at a premium.

Who is it for

IT technicians, network installers, and AV professionals who need to mount patch panels, switches, or shallow-depth servers on a wall in offices, classrooms, retail back rooms, or home networking closets. It suits anyone requiring a reliable, non-hinged wall rack that keeps equipment secure and accessible without consuming valuable floor area.

Main features

• Fixed 8U open frame for standard 19-inch rack equipment
• 180 mm usable depth accommodates shallow network devices and patch panels
• Sturdy steel construction with black powder-coated finish (RAL 9005)
• 4-point wall mounting ensures stability and even weight distribution
• Open-frame design allows easy access for cabling and ventilation
• Compliant with IEC 60297-3-100 (DIN 41494 Part 1) rack standards

Specifications

• Rack Units: 8U
• Rack Width: 19 inch
• Mounting Type: Wall Mount
• Frame Type: Fixed (Non-Hinged)
• Usable Depth: 180 mm
• Material: Steel
• Colour: Black (RAL 9005)
• Construction: Open Frame
• Installation: Easy Assembly
• Compatibility: Standard 19-inch rack equipment
• Mounting Points: 4-point wall mounting
• Finish: Powder Coated
• Application: Network, Server, AV Equipment
• Design: Space-saving, robust design
• Standards Compliance: IEC 60297-3-100 (DIN 41494 Part 1)

Tips

Ensure the wall can support the combined weight of the rack and installed equipment. Use appropriate anchors for the wall type (concrete, drywall, etc.) and verify level alignment before final tightening. For cable management, consider adding horizontal or vertical cable organizers to keep the installation tidy.
