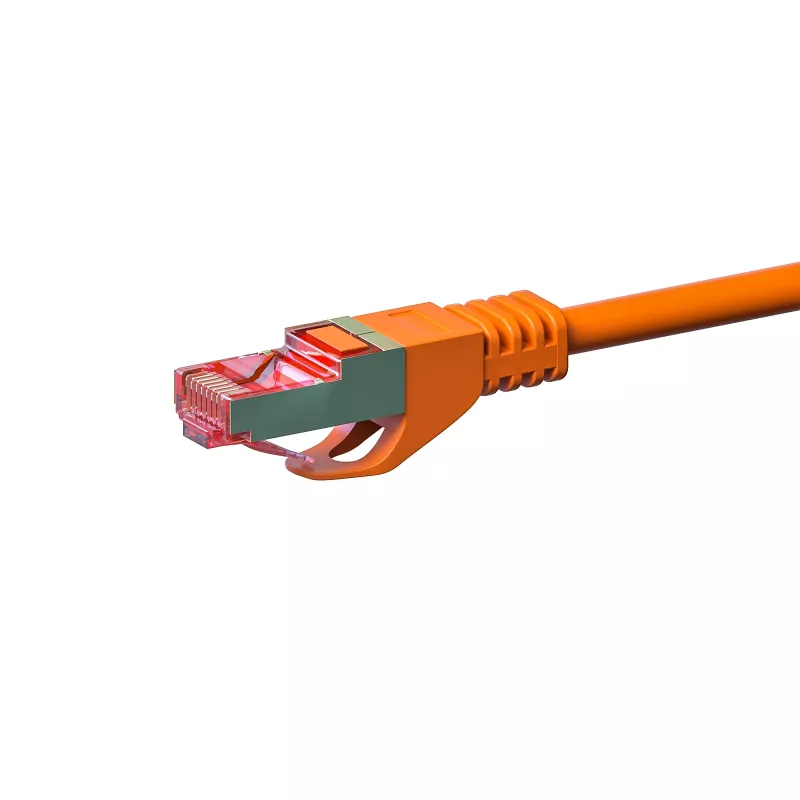

DSIT CAT 6 S/FTP LSOH netwerkkabel 50m oranje

Engineered for high-speed data transmission up to 10 Gigabit Ethernet, this DSIT CAT 6 S/FTP cable delivers exceptional performance with a bandwidth of 250 MHz. The 50-meter orange cable is ideal for professional network installations where reliability and safety are paramount.

Overview

The DSIT DC-S66-500 is a premium CAT 6 network installation cable featuring S/FTP shielding (screened/foiled twisted pair) for superior protection against electromagnetic interference (EMI) and crosstalk. Its LSOH (Low Smoke Zero Halogen) jacket ensures minimal toxic smoke and corrosive gas emission in the event of fire, making it suitable for indoor environments with strict safety regulations. With solid bare copper conductors (23 AWG) and four twisted pairs, this cable meets TIA/EIA-568-C.2 and ISO/IEC 11801 standards, guaranteeing consistent performance for demanding network infrastructures.

What stands out

• Supports 10GBASE-T for high-speed data transfer up to 10 Gbps
• S/FTP shielding: each pair individually foiled plus overall braid screen for maximum noise immunity
• LSOH jacket complies with IEC 60332-1, IEC 61034-2, and IEC 60754-2 fire safety standards
• Solid bare copper conductors ensure low attenuation and excellent signal integrity over 50 meters
• Unterminated design allows custom termination with RJ45 connectors or patch panels

Technical details

• Cable type: CAT 6 S/FTP (Screened/Foiled Twisted Pair)
• Length: 50 meters
• Colour: Orange
• Conductor: Solid bare copper, 23 AWG
• Number of pairs: 4
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet
• Impedance: 100 Ohm
• Outer diameter: Approximately 7.2 mm
• Application: Indoor
• Connectors: None (unterminated)
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Our verdict

For installers and network professionals, the DSIT CAT 6 S/FTP LSOH cable offers a robust, future-proof solution. Its combination of high-speed capability, excellent shielding, and low-smoke zero-halogen jacket makes it a safe and reliable choice for structured cabling in offices, data centers, and industrial environments.
