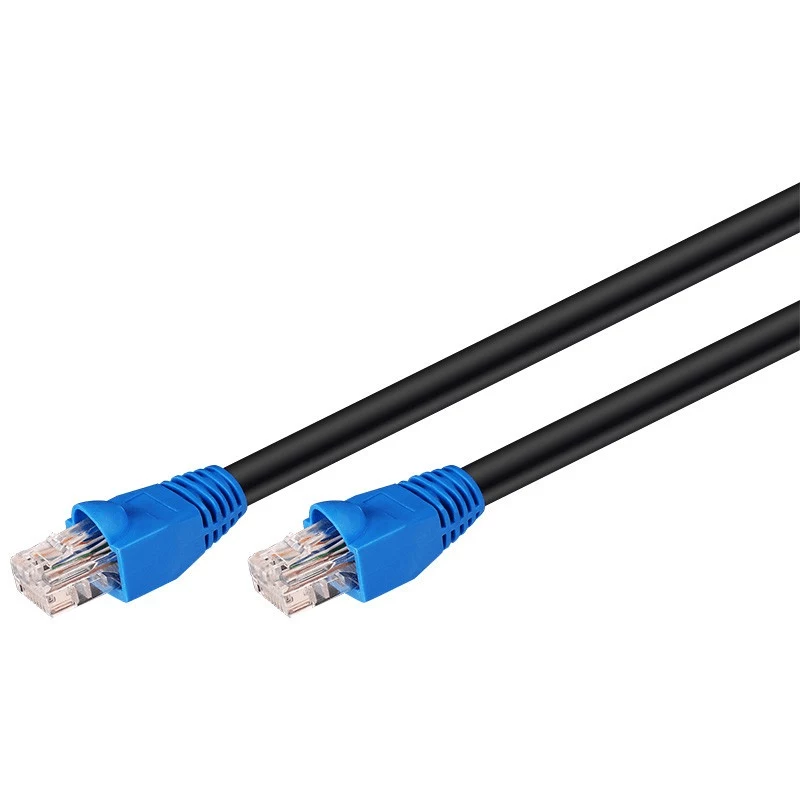

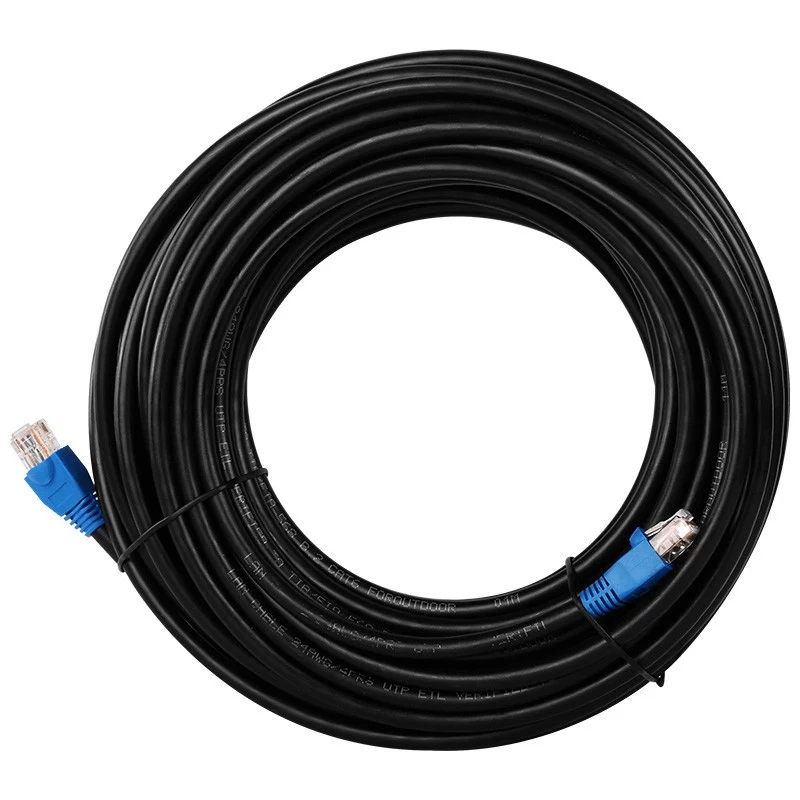

DSIT DANICOM CAT6 outdoor UTP kabel 20m zwart 100% koper (DC-OUT-60-200)

With a 250 MHz bandwidth and Gigabit Ethernet support, this 20-metre CAT6 outdoor cable delivers high-speed data transmission even in harsh environments. The 100% solid copper conductors ensure superior signal integrity and low attenuation, making it ideal for reliable network connections over longer distances.

Overview

The DSIT DANICOM CAT6 Outdoor UTP Cable is engineered for outdoor network installations where durability and performance are critical. Its UV-resistant PE jacket protects against sunlight and weathering, while the unshielded twisted pair design provides excellent crosstalk cancellation. The cable is supplied in bulk without connectors, giving you the flexibility to terminate it to your exact requirements.

What stands out

• 100% solid copper conductors for maximum conductivity and performance
• UV-resistant and weatherproof PE jacket for outdoor use
• Supports Gigabit Ethernet (up to 1000 Mbps) and 250 MHz bandwidth
• Complies with TIA/EIA-568-C.2 and ISO/IEC 11801 standards
• 23 AWG solid conductors ensure stable connections over 20 metres

Technical details

• Cable type: CAT6 UTP (Unshielded Twisted Pair)
• Length: 20 metres
• Colour: Black
• Conductor material: 100% copper, solid
• Jacket material: PE (Polyethylene), UV-resistant
• Data transfer rate: up to 1000 Mbps (1 Gigabit Ethernet)
• Bandwidth: 250 MHz
• Number of pairs: 4 twisted pairs
• Wire gauge: 23 AWG
• Connector type: none (bulk cable)
• Operating temperature: -20°C to 60°C
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Our verdict

For outdoor network runs up to 20 metres, this DSIT cable offers a robust, high-performance solution. The combination of solid copper conductors and a UV-resistant jacket ensures long-term reliability, making it a smart choice for connecting buildings, IP cameras, or access points.
