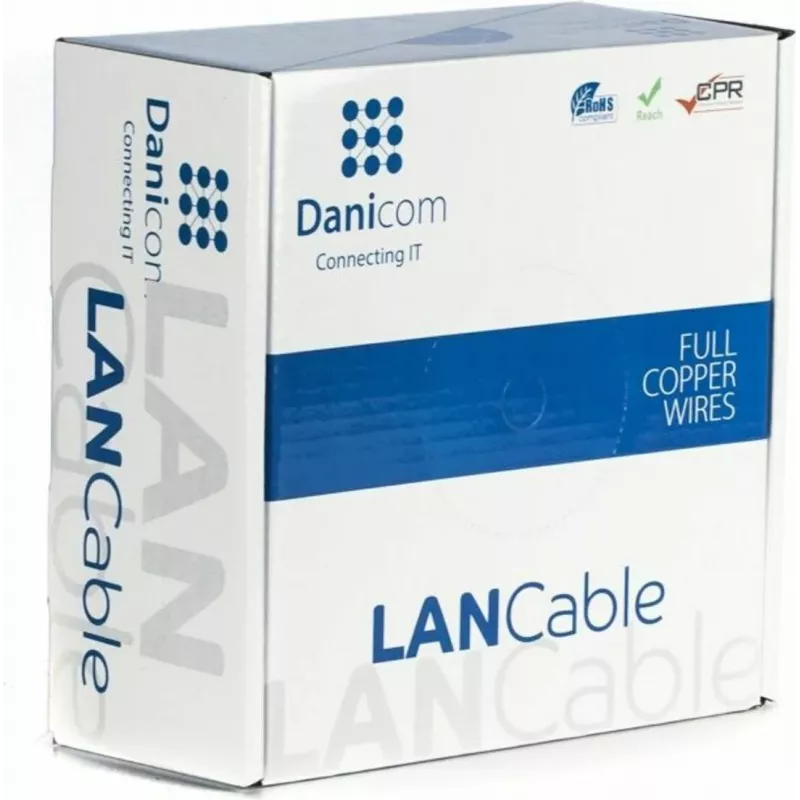

DSIT DANICOM CAT6A FTP 100m buitenkabel met massieve geleider en PE-mantel (Fca)

Outdoor network links often fail when exposed to harsh weather, UV radiation, and electromagnetic interference. This DSIT DANICOM CAT6A FTP cable overcomes those challenges with a rugged polyethylene jacket and foil shielding, delivering reliable 10 Gigabit Ethernet performance over 100 meters even in direct sunlight or buried conduit.

Who is it for

Network installers, system integrators, and IT professionals who need to connect buildings, IP cameras, access points, or industrial equipment across outdoor spans. It suits commercial campuses, residential complexes, and any project where a permanent, weatherproof link is required.

Main features

• CAT6A performance up to 500 MHz bandwidth and 10GBASE-T data rates over 100 meters.
• FTP shielding with foil around all four twisted pairs blocks EMI and crosstalk.
• Solid bare copper conductors (23 AWG) ensure low attenuation and support Power over Ethernet.
• PE (polyethylene) outer jacket resists UV, moisture, and abrasion for long outdoor life.
• Euroclass Fca fire reaction rating for safe use in building exits and risers.
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Specifications

• Length: 100 meters (pull box)
• Cable type: CAT6A FTP (Foiled Twisted Pair)
• Conductor: Solid bare copper, 23 AWG, 4 pairs
• Shielding: Aluminium foil per pair, overall foil
• Jacket: PE (Polyethylene), outdoor rated
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C
• Fire reaction class: Fca (EN 50575)
• RoHS compliance: Yes

Tips

For best performance, avoid sharp bends and use proper outdoor-rated connectors. When burying, use a conduit to protect against physical damage. Test the link after installation to ensure full 10G speeds.
