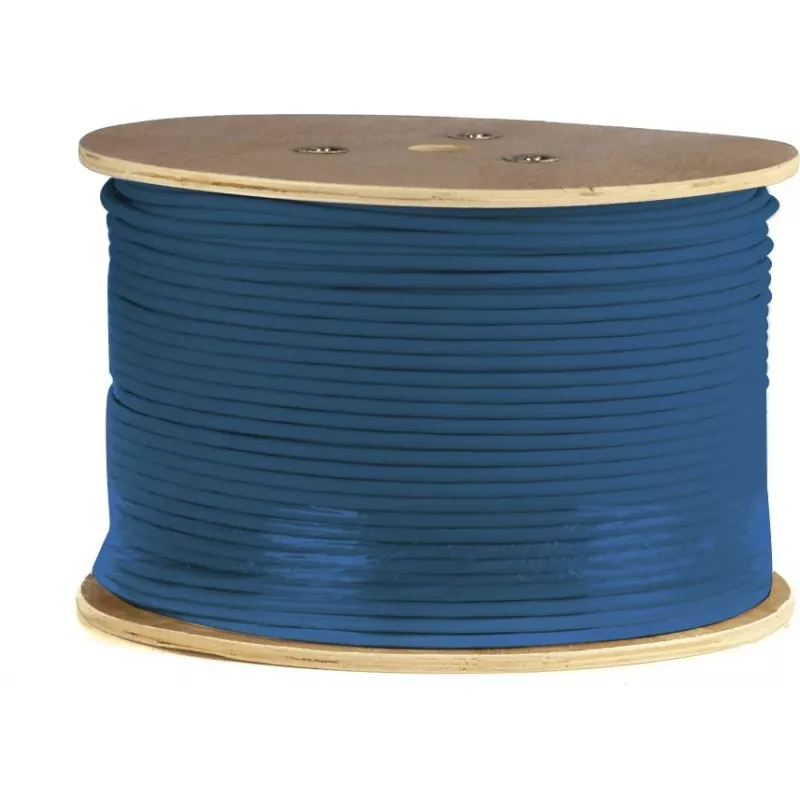

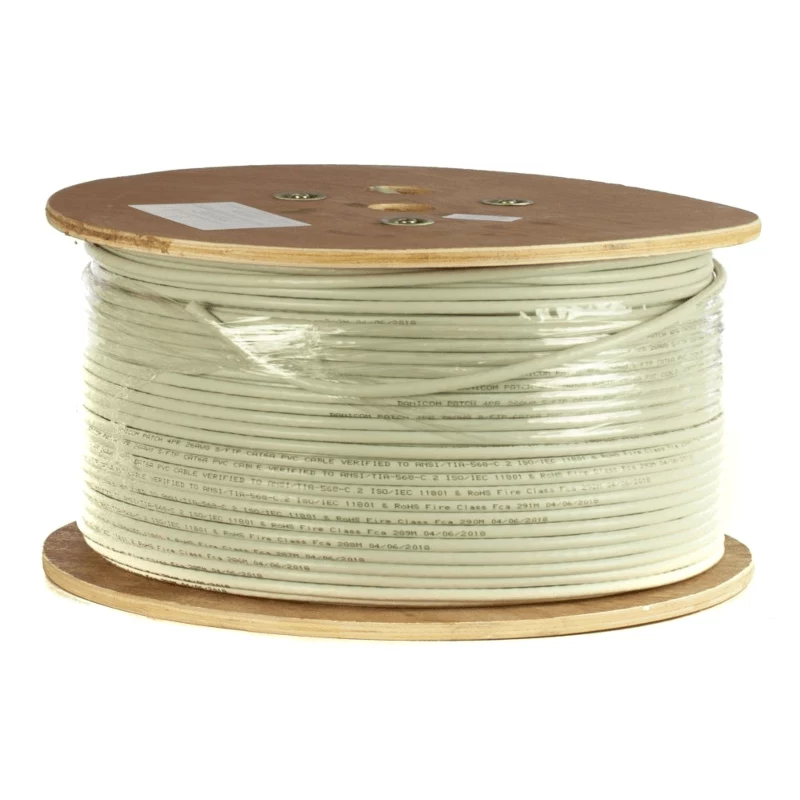

DSIT DANICOM CAT6A U/UTP 500m flexibele PVC-kabel (Fca) – 10Gbps, 500MHz, massief koper, binnen

Network installers pulling high-speed backbone links through conduits and cable trays in office buildings and data centres will find this 500-metre reel of DSIT DANICOM CAT6A U/UTP cable a reliable choice. The flexible PVC jacket and unshielded twisted-pair construction make it easy to handle, while solid bare copper conductors ensure stable signal integrity for 10GBASE-T Ethernet up to 100 metres per segment. With a Euroclass Fca fire rating, it is suitable for indoor installations where basic flame retardancy is required.

Key specifications

• Category: Cat6a
• Shielding: U/UTP (unshielded twisted pair)
• Length: 500 metres on reel
• Jacket material: PVC (polyvinyl chloride)
• Fire rating: Euroclass Fca
• Data rate: up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: up to 500 MHz
• Conductor: solid bare copper, 23 AWG, 4 pairs
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: indoor, flexible

Why choose it

This cable delivers full Cat6a performance without the cost and weight of shielded variants. The flexible PVC jacket simplifies installation in tight spaces, while the solid copper core ensures stable connections for PoE and high-speed data. The 500-metre reel is ideal for large projects, reducing the number of splices and ensuring consistent quality throughout the run.

Ideal use cases

• Structured cabling in office buildings and campuses
• Data centre backbone and horizontal cabling
• High-density patch panel terminations
• PoE applications up to 100W (with proper installation)
• Long horizontal runs

Good to know

The cable is supplied on a convenient reel for easy deployment. Its unshielded design reduces weight and cost while maintaining excellent performance in electrically quiet environments. For installations requiring higher fire safety ratings, consider LSZH jacketed alternatives.
