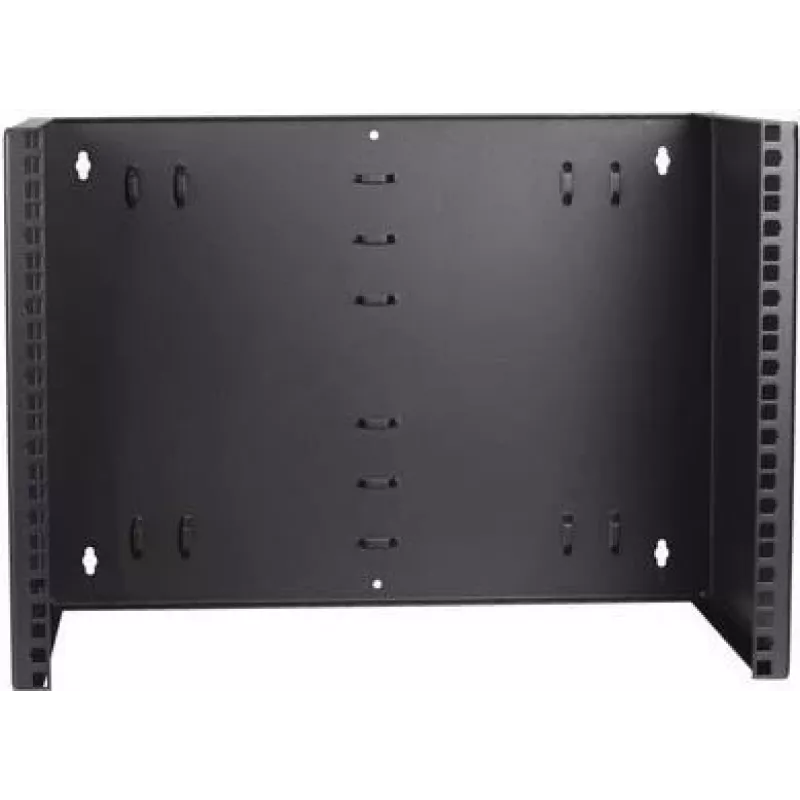

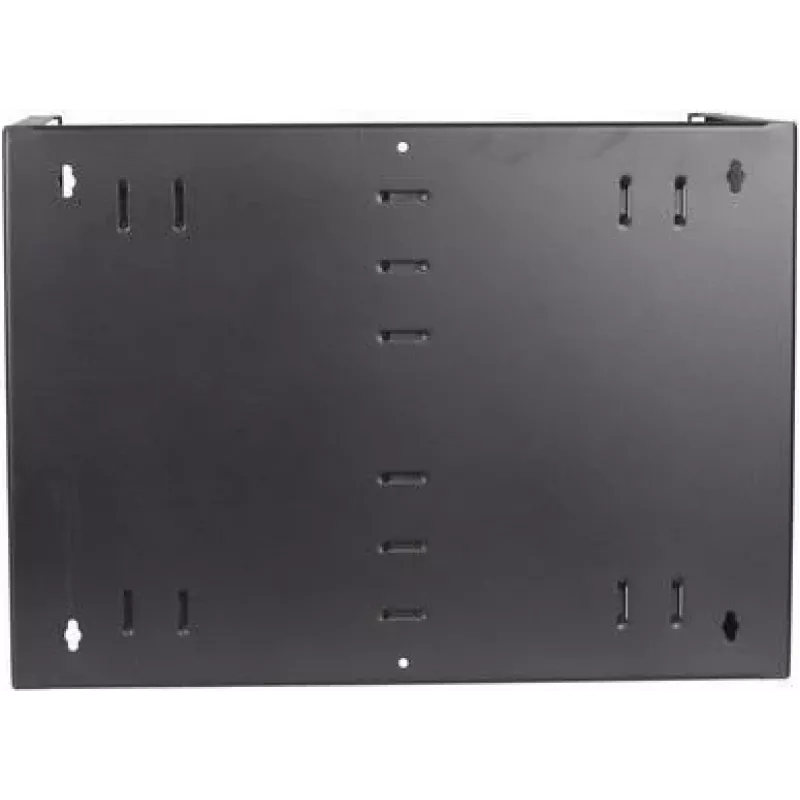

DSIT DS-WMB8-M 8U 19-inch vaste wandmontage rackbehuizing, 300 mm diepte, zwart

With a robust welded steel construction and a 40 kg load capacity, this 8U wall-mount frame securely houses your 19-inch equipment in a compact 300 mm depth. The powder-coated black finish (RAL 9005) ensures durability in demanding environments.

Overview

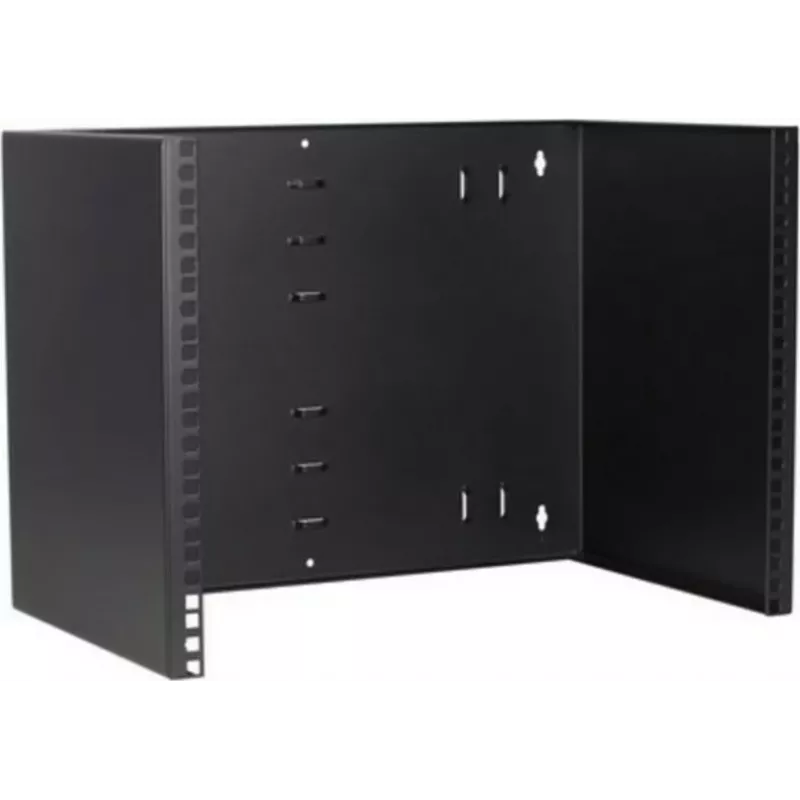

The DSIT DS-WMB8-M is a fixed (non-hinged) wall-mount rack frame designed for 19-inch standard equipment. It provides 8 rack units (8U) of vertical mounting space with a usable depth of 300 mm, making it ideal for patch panels, switches, and other shallow-depth devices. The frame features square mounting holes compatible with cage nuts, allowing flexible equipment installation. Its sturdy steel construction and black powder coating deliver both strength and a professional appearance.

What stands out

• 8U height fits a wide range of networking and AV gear
• 300 mm usable depth supports shallow components while saving space
• Fixed design ensures stability and security; no swinging or sagging
• Square mounting holes accept cage nuts for versatile equipment mounting
• 40 kg load capacity handles multiple devices without compromise
• Powder-coated black finish resists scratches and corrosion

Technical details

• Rack standard: 19-inch
• Rack units: 8U
• Mounting type: wall mount, fixed (non-hinged)
• Usable depth: 300 mm
• External width: approx. 500 mm
• External height: approx. 380 mm
• Material: steel
• Color: black (RAL 9005)
• Finish: powder-coated
• Mounting holes: square (for cage nuts)
• Max load capacity: 40 kg
• Compliance: RoHS
• Product series: DSIT WMB Series
• Application: data, network, telecom, A/V installations

Our verdict

The DSIT DS-WMB8-M is a solid choice for any installation requiring a fixed, shallow-depth wall-mount rack. Its 40 kg capacity and durable finish make it a reliable long-term solution.
