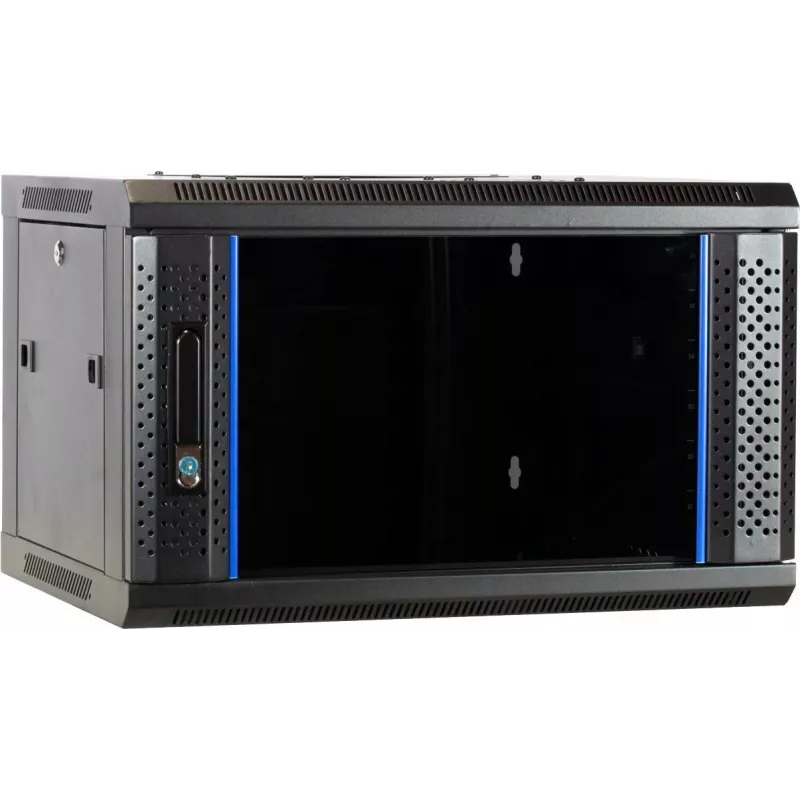

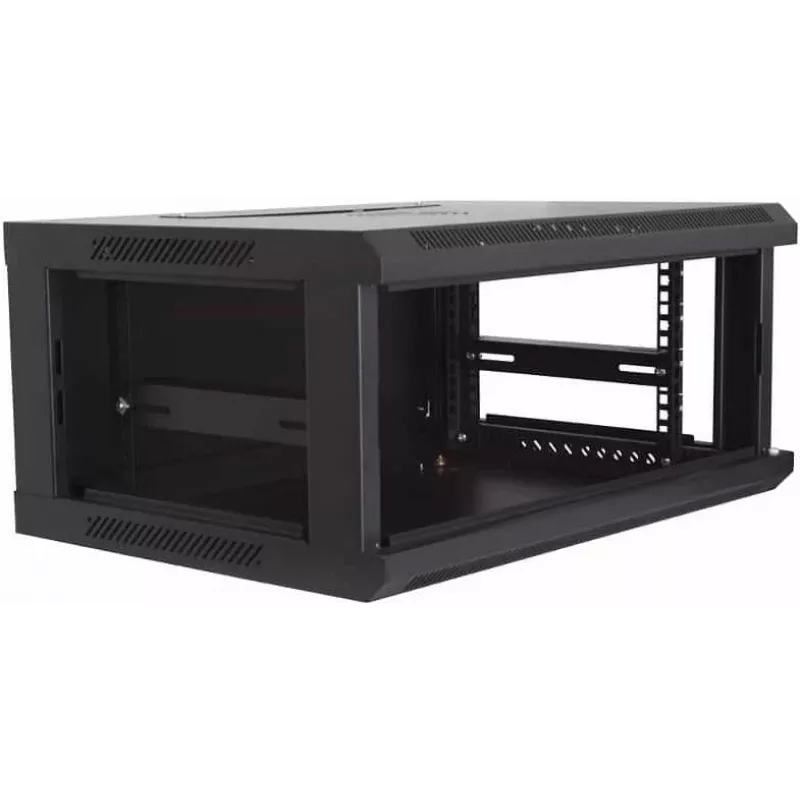

DSIT DS6604 4U wandmontage-serverbehuizing met glazen deur, 600x600x280 mm, zwart

IT technicians and network administrators often need a secure, space-saving enclosure for patch panels and small switches in offices or retail back rooms. The DSIT DS6604 answers that call with a 4U wall-mount cabinet that keeps equipment protected yet accessible. Its tempered glass front door allows quick visual checks of indicator lights without unlocking, while the lockable design deters unauthorized access. Built from SPCC cold rolled steel with a powder-coated black finish (RAL 9005), it withstands daily use and blends into professional environments. The welded frame supports up to 60 kg, and adjustable 19-inch rails accommodate various device depths. Cable entry knockouts on top and bottom simplify routing, and removable side panels ease installation and maintenance. Passive ventilation through perforated top and bottom panels helps prevent heat buildup. Compliant with RoHS and CE, this cabinet is a reliable choice for structured cabling and small network deployments.

Key specifications

• Rack capacity: 4U
• External dimensions (WxDxH): 600 x 600 x 280 mm
• Maximum load capacity: 60 kg
• Front door: tempered glass, lockable
• Material: SPCC cold rolled steel, powder coated
• Color: black (RAL 9005)
• Mounting type: wall mount
• Rack standard: 19-inch
• Adjustable mounting rails: front and rear
• Cable entry: top and bottom with knockouts
• Ventilation: passive (perforated top/bottom)
• Side panels: removable
• IP protection class: IP20
• Certification: CE, RoHS

Why choose it

This cabinet combines security, visibility, and durability. The glass door lets you monitor equipment status at a glance, while the key lock prevents tampering. Its compact 280 mm depth fits tight spaces, yet the 600 mm width and depth provide ample room for standard 19-inch gear. The adjustable rails offer flexibility for different device depths, and the removable side panels make cabling and hardware swaps straightforward. The robust steel construction and 60 kg load rating ensure long-term reliability, even in busy environments.

Ideal use cases

• Small office network closets
• Retail point-of-sale back offices
• Branch office IT installations
• Industrial control panels
• Security system enclosures

Good to know

Mounting hardware is not included; use appropriate wall anchors for the load. The cabinet is IP20 rated, meaning it is intended for indoor use only. The usable depth is approximately 550 mm, accommodating most switches and patch panels. For cable management, plan entry points using the top and bottom knockouts to maintain a clean installation. The powder-coated finish resists scratches and corrosion, keeping the cabinet looking professional over time.
