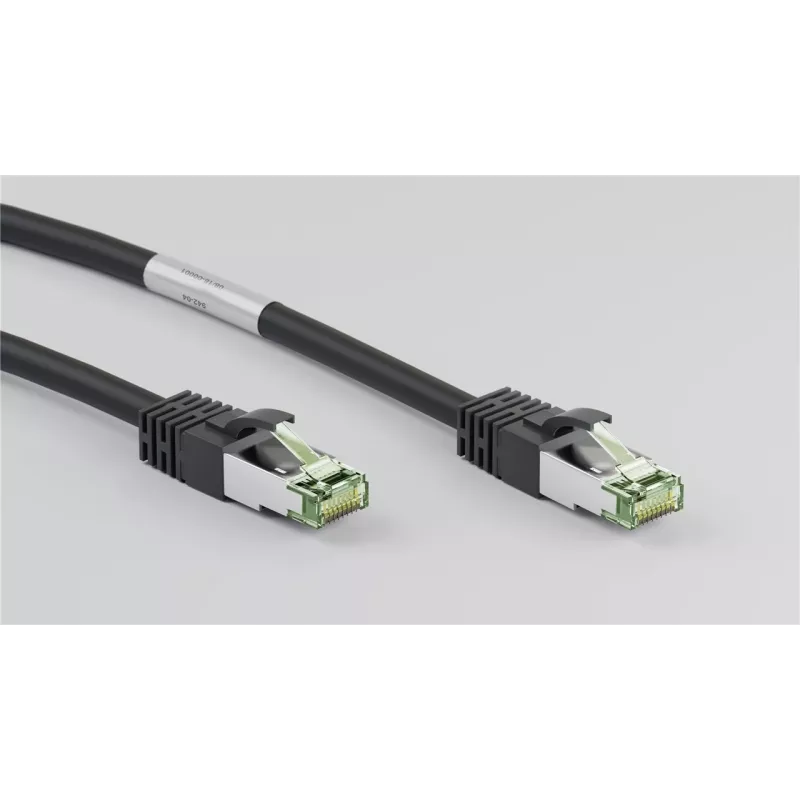

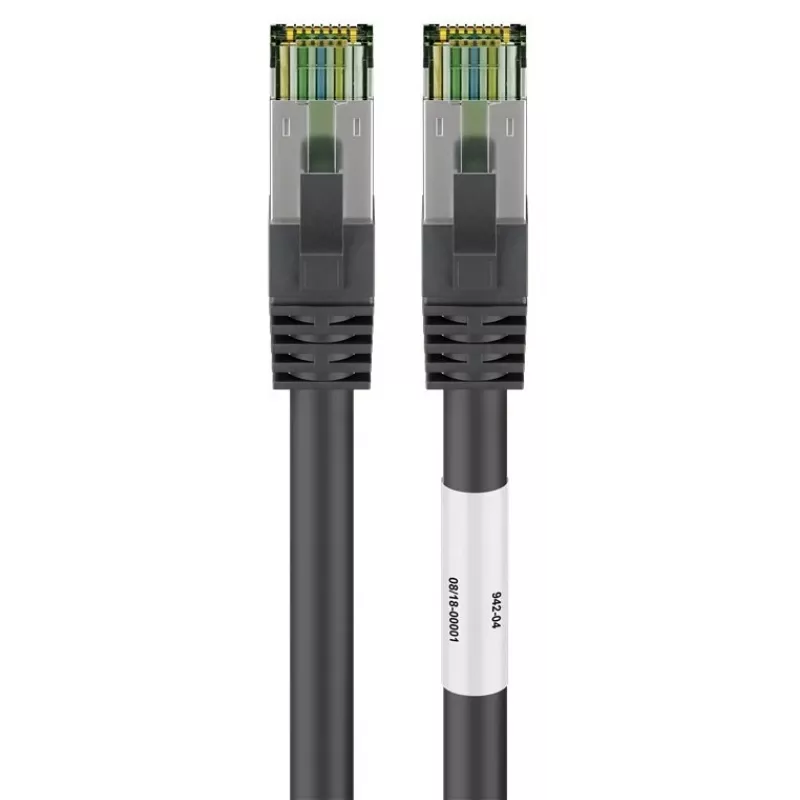

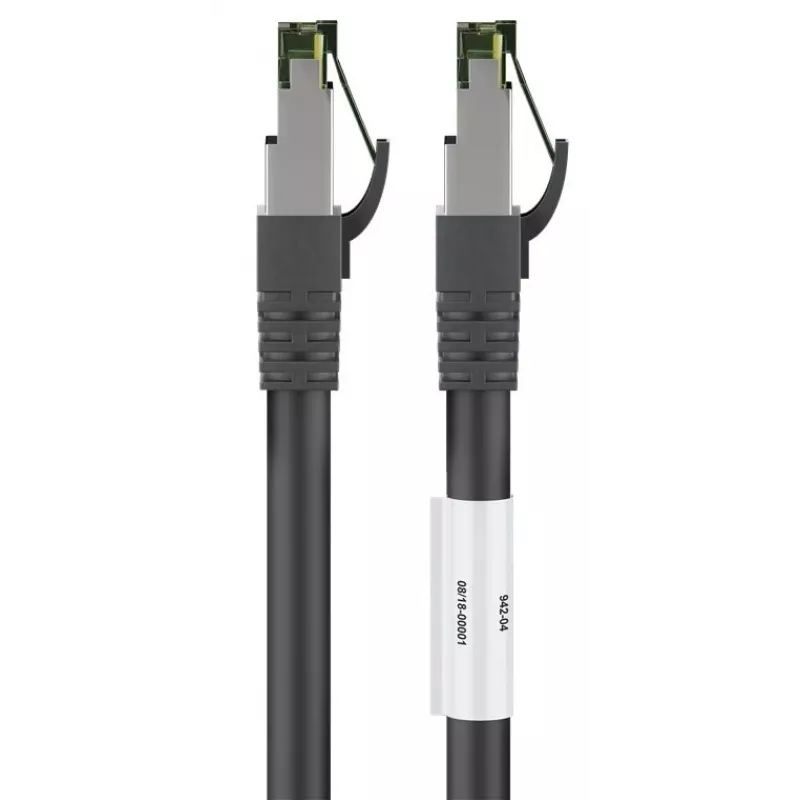

DSIT RJ45-netwerkkabel S/FTP PiMF CAT 8 kabel zwart 2m

With a staggering 2000 MHz bandwidth and 40 Gbit/s data transfer capability, this DSIT CAT 8 network cable pushes copper Ethernet to its absolute limit. The S/FTP shielding with PiMF (Pairs in Metal Foil) construction virtually eliminates crosstalk and EMI, making it the go-to choice for 25G/40GBASE-T data centers, high-frequency trading floors, and lag-free gaming rigs.

Overview

Engineered for the most demanding network environments, the DSIT DC-80-020 is a 2-meter CAT 8 patch cable terminated with gold-plated RJ45 connectors. It features 100% copper conductors (AWG 26, stranded) for superior signal integrity and flexibility, wrapped in a low-smoke zero-halogen (LSZH) jacket for safety in commercial and residential installations. Fully backward compatible with CAT 7a, CAT 7, CAT 6a, CAT 6, and CAT 5e, it supports PoE, PoE+, and PoE++ to power devices like access points, IP cameras, and VoIP phones.

What stands out

• CAT 8 performance: 2000 MHz bandwidth, 40 Gbit/s up to 30 meters
• S/FTP PiMF shielding: each pair individually foil-wrapped, plus overall braid screen
• 100% copper stranded conductors for reliable, flexible connections
• LSZH jacket reduces toxic smoke and corrosive gases in fire conditions
• Gold-plated contacts resist corrosion and ensure repeated mating cycles
• PoE++ ready: delivers up to 100W for high-power devices

Technical details

• Standard: Category 8 (CAT 8), backward compatible with CAT 7a/7/6a/6/5e
• Cable type: S/FTP (Screened Foiled Twisted Pair), PiMF construction
• Length: 2 meters
• Color: Black
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: 100% copper, AWG 26, stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Impedance: 100 Ohm
• Max bandwidth: 2000 MHz
• Max data rate: 40 Gbit/s (40GBASE-T)
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Our verdict

If you need future-proof cabling for 25G/40G Ethernet or simply want the lowest possible latency for competitive gaming, this DSIT CAT 8 cable delivers enterprise-grade shielding and pure copper performance in a compact 2-meter length. The LSZH jacket adds peace of mind for in-wall or plenum-adjacent runs, and the gold-plated connectors ensure a rock-solid link every time.
