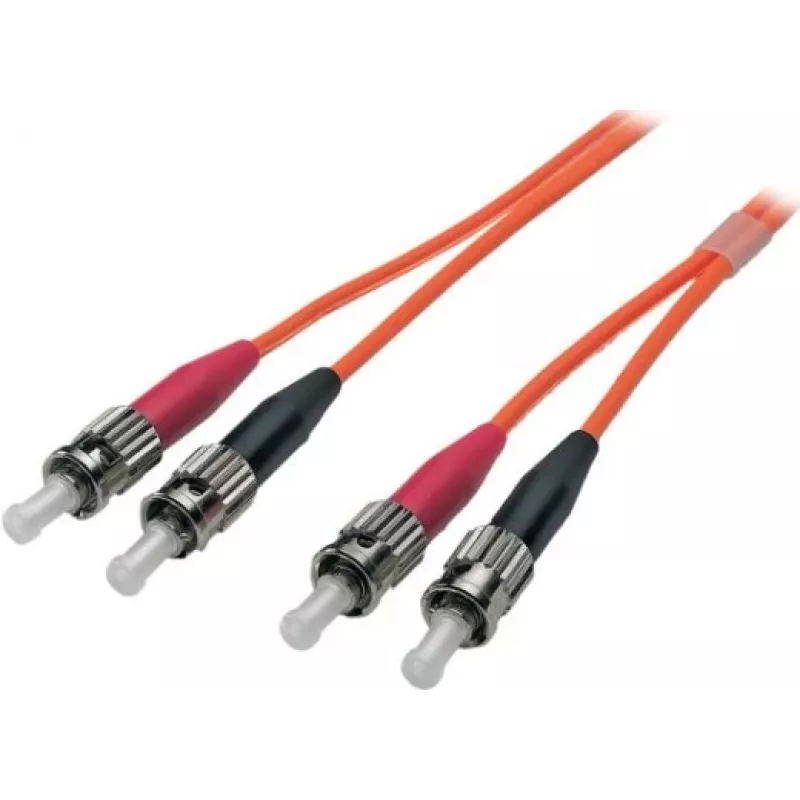

EFB ECOFIBER duplex jumper ST-ST 50/125 µm OM2 LSZH oranje 3,0 mm 20 m

The EFB ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a 50/125 µm core/cladding and OM2 grade, it supports bandwidths up to 500 MHz·km at both 850 nm and 1300 nm, making it ideal for data networking, telecommunications, LAN, and SAN applications.

Advantages

This cable features a durable LSZH (Low Smoke Zero Halogen) jacket that minimizes toxic emissions in case of fire, ensuring safety in enclosed spaces. The duplex configuration with ST connectors provides secure and stable connections, while the 3.0 mm diameter per simplex strand offers flexibility and ease of installation. Typical insertion loss is less than 0.3 dB, and return loss exceeds 20 dB, ensuring excellent signal integrity.

Suitable for

• Data centers and server rooms
• Telecommunications infrastructure
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Fiber optic patching between switches, routers, and patch panels

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Fiber Grade: OM2
• Connector A: ST
• Connector B: ST
• Cable Configuration: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Length: 20 m
• Cable Diameter (per simplex strand): 3.0 mm
• Maximum Bandwidth (850nm): 500 MHz·km
• Maximum Bandwidth (1300nm): 500 MHz·km
• Typical Insertion Loss: < 0.3 dB
• Typical Return Loss: > 20 dB

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard ST port equipment and is suitable for indoor use where low smoke and halogen-free characteristics are required.
