EFB Elektronik MTPF12LCAPC-2 - 2 m - OS2 - MTP - 12x LC glasvezel breakout-kabel

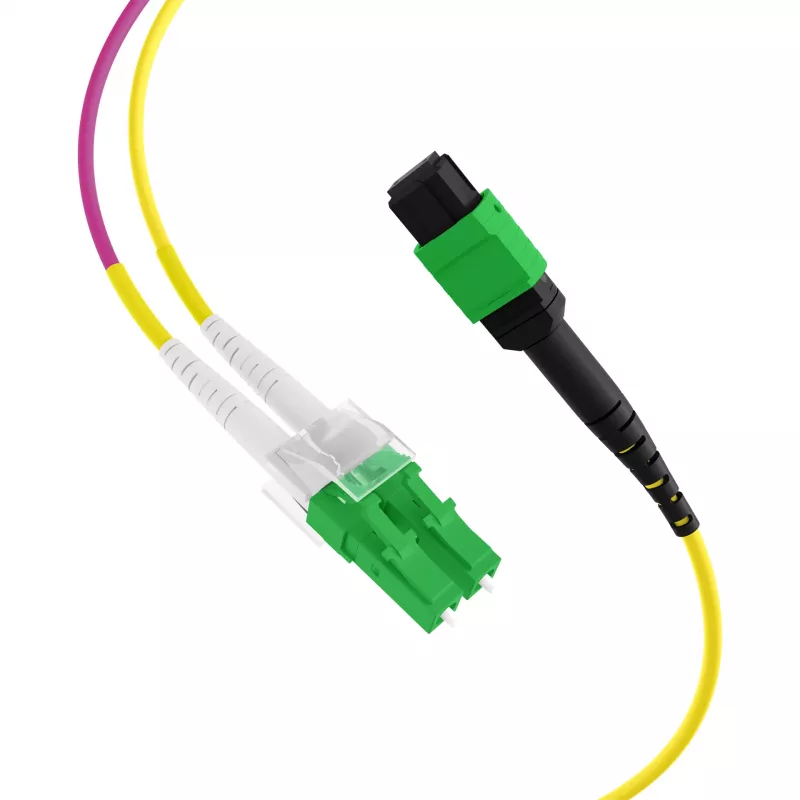

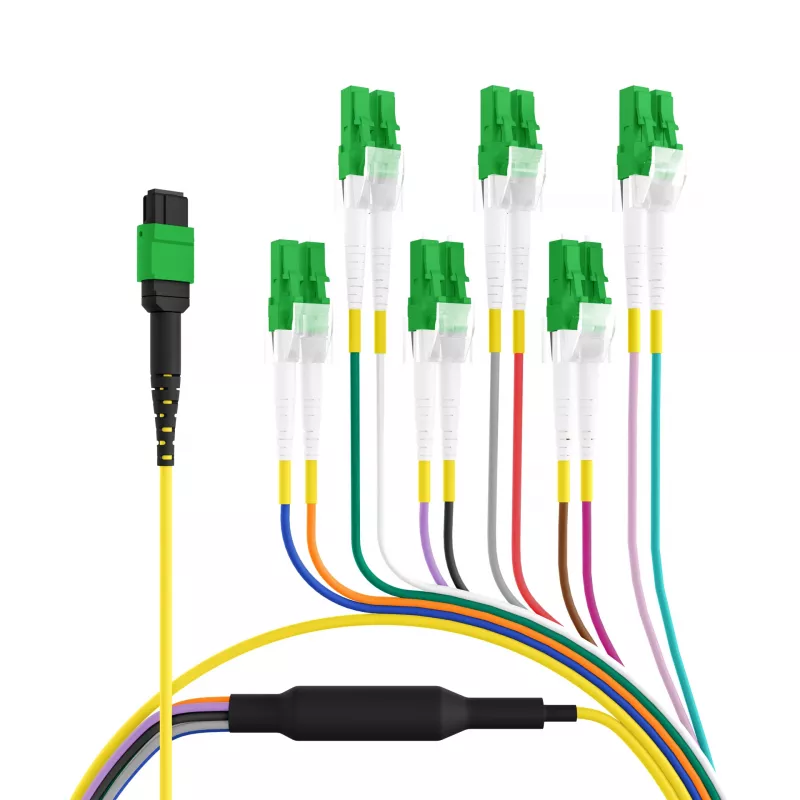

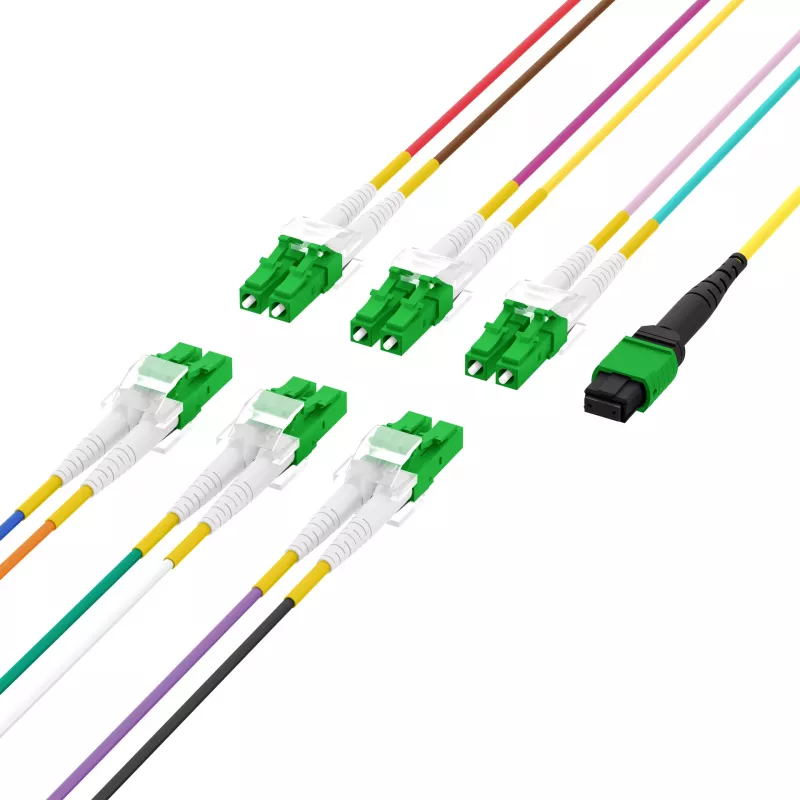

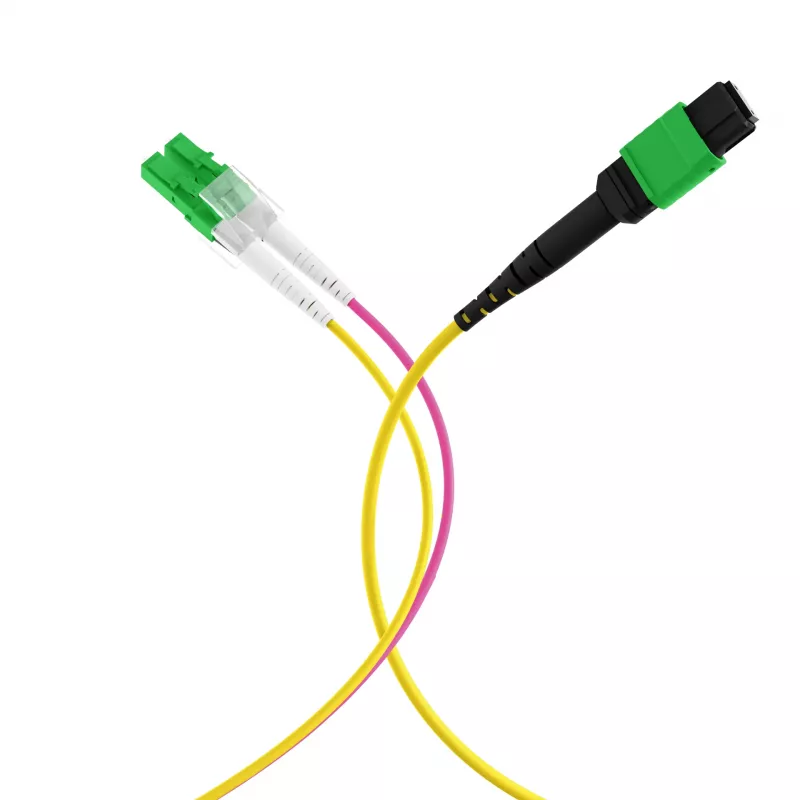

The EFB Elektronik MTPF12LCAPC-2 is a high-performance fiber optic breakout cable designed for demanding network environments. It features a 12-fiber single-mode OS2 trunk terminated with an MTP male connector on one end and 12 individual LC/APC connectors on the other, enabling efficient breakout from high-density MTP ports to LC interfaces. Ideal for 40G/100G Ethernet, data centers, SAN, and LAN applications, this cable ensures reliable, low-loss connectivity.

Advantages

This breakout cable simplifies network deployment by converting a single MTP connection into 12 LC connections, reducing cable clutter and installation time. The OS2 single-mode fiber supports long-distance transmission with minimal signal loss. LSZH jacket material enhances safety in confined spaces, and the yellow jacket provides easy identification. Polarity Type B ensures proper signal alignment for duplex applications.

Suitable for

• Data center interconnects
• 40G/100G Ethernet networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• High-density fiber patching

Key specifications

• Cable Type: Fiber Optic Breakout Cable
• Fiber Type: Single-mode OS2
• Number of Fibers: 12
• Connector A: MTP Male (with pins)
• Connector B: 12x LC/APC Male
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• MTP Insertion Loss: ≤ 0.35 dB
• LC Insertion Loss: ≤ 0.25 dB
• MTP Return Loss: ≥ 60 dB
• LC Return Loss: ≥ 60 dB
• Polarity: Type B
• Trunk Cable Diameter: 3.0 mm
• Breakout Leg Diameter: 2.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is compatible with MTP/MPO adapters and LC transceivers.
