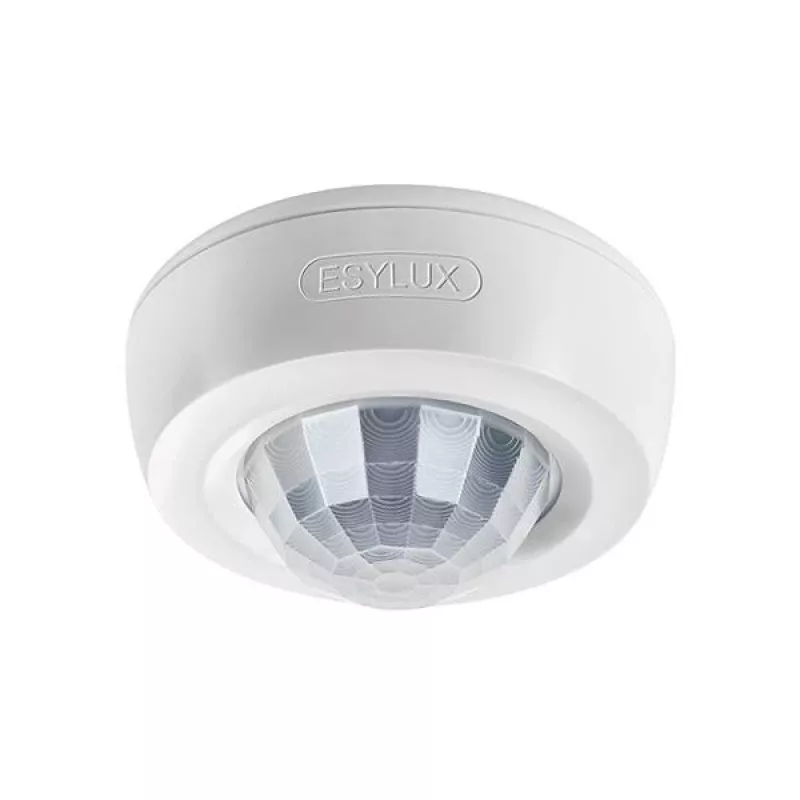

ESYLUX EB10430848 plafond-bewegingsmelder opbouw 360° wit IP40

The ESYLUX EB10430848 is a high-quality surface-mounted ceiling motion detector with a 360° detection angle, designed for reliable presence and movement detection in indoor environments. Its passive infrared (PIR) sensor technology ensures precise detection of heat sources, making it ideal for automatic lighting control in offices, corridors, stairwells, and other commercial or residential spaces.

Advantages

This motion detector offers a wide detection range of up to 8 meters in diameter (at 2.5 m mounting height) and a fully adjustable time delay from 10 seconds to 30 minutes. The brightness threshold can be set between 5 and 2000 lux, allowing the detector to activate lighting only when natural light is insufficient, thereby saving energy. With a maximum switching power of 2300 W (resistive) and 1150 VA (inductive), it can control a variety of lighting loads. The device is designed for easy surface mounting on ceilings and features a robust UV-stabilised polycarbonate housing with IP40 protection, ensuring durability and safety.

Suitable for

• Automatic lighting control in offices, meeting rooms, and corridors
• Stairwells, hallways, and entrance areas
• Storage rooms, basements, and utility rooms
• Any indoor space requiring energy-efficient presence-based lighting

Key specifications

• Detection angle: 360°
• Detection range (diameter): 8 m (at 2.5 m height)
• Mounting type: Ceiling, surface-mounted
• Supply voltage: 230 V AC, 50 Hz
• Max. switching power (resistive): 2300 W
• Max. switching power (inductive): 1150 VA
• Time delay setting: 10 s - 30 min
• Brightness threshold: 5 - 2000 Lux
• IP protection class: IP40
• Protection class: II
• Colour: White (RAL 9010)
• Sensor technology: Passive Infrared (PIR)
• Recommended installation height: 2.0 - 3.0 m
• Standby power consumption: 0.5 W
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Switching output: Relay (NO contact)

Recommendations

For optimal performance, install the detector at the recommended height of 2.0 to 3.0 meters and ensure the detection area is free from obstructions. Pair with ESYLUX compatible lighting controls for seamless integration. Always follow local electrical regulations during installation.
