ESYLUX PD-C 360i/8 MIC passieve infraroodsensor (PIR) - bedraad - 8 m - plafond - binnen - wit

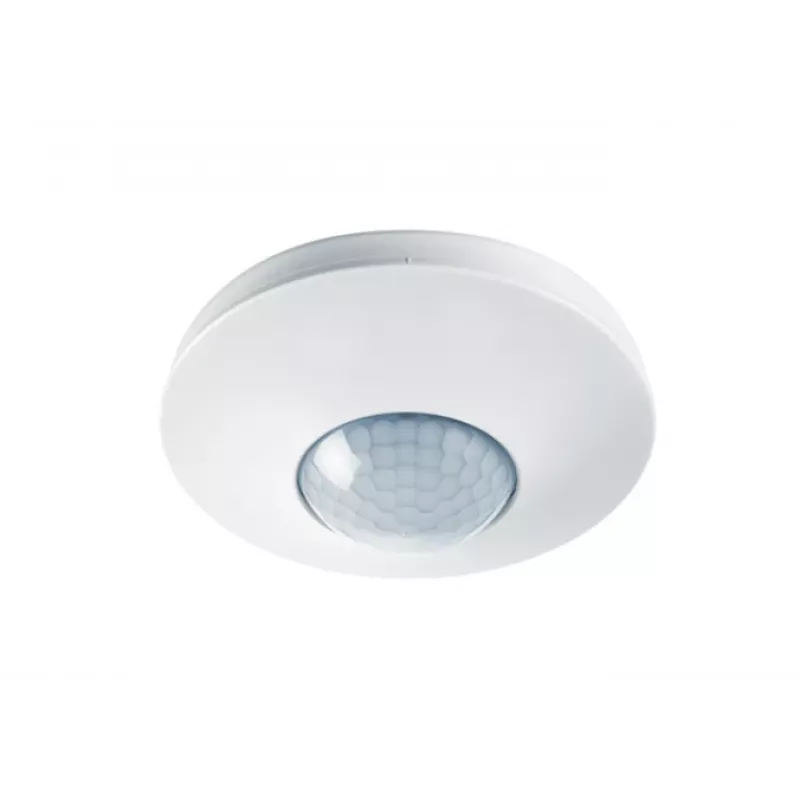

The ESYLUX PD-C 360i/8 MIC is a high-quality passive infrared (PIR) sensor designed for ceiling-mounted indoor use. With a 360° detection angle and a tangential range of up to 8 meters (at 3 m mounting height), it provides reliable presence and motion detection for lighting control in offices, meeting rooms, corridors, and other commercial spaces. The sensor features a potential-free NO contact, adjustable time delay (30 s to 30 min), and a light measurement range of 5 to 2000 lux, making it ideal for energy-efficient automatic lighting control.

Advantages

Energy-saving automatic lighting control with presence and motion detection. Simple ceiling flush-mount installation. Adjustable time delay and light threshold via potentiometer or optional remote control. Low standby power consumption (<0.5 W). Robust UV-stabilised polycarbonate housing in white (RAL 9010).

Suitable for

• Indoor ceiling mounting in offices, meeting rooms, corridors, stairwells, and storage areas
• Automatic lighting control in commercial and public buildings
• Presence detection for HVAC or alarm systems (via potential-free contact)

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (tangential): Ø 8 m at 3 m mounting height
• Detection range (presence): Ø 4 m at 3 m mounting height
• Mounting type: Ceiling flush-mounted
• Recommended mounting height: 2.5 - 3.5 m
• Operating voltage: 230 V AC, 50 Hz
• Switching output: 1x NO contact, potential-free
• Max. switching power (resistive load): 2300 W
• Light measurement range: 5 - 2000 lux
• Time delay: 30 s - 30 min
• Protection class: IP20
• Ambient temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Control options: Potentiometer, optional remote control
• Power consumption (standby): < 0.5 W
• Installation diameter: Ø 68 mm
• Material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount the sensor at a height of 2.5 to 3.5 m. Use the optional remote control for convenient adjustment of settings. Ensure the sensor is not obstructed by furniture or partitions to maintain full detection coverage.
