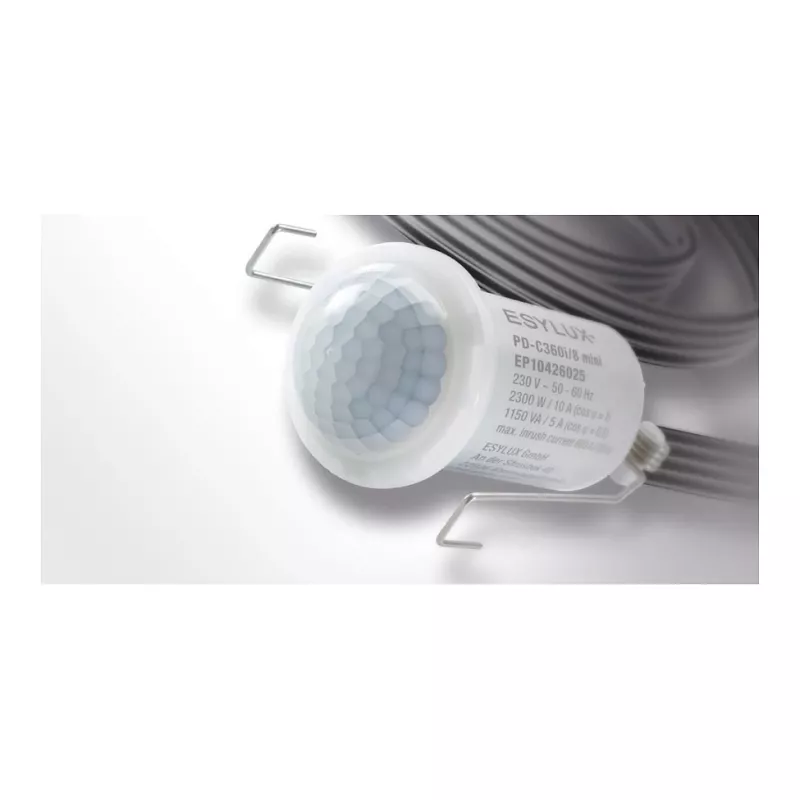

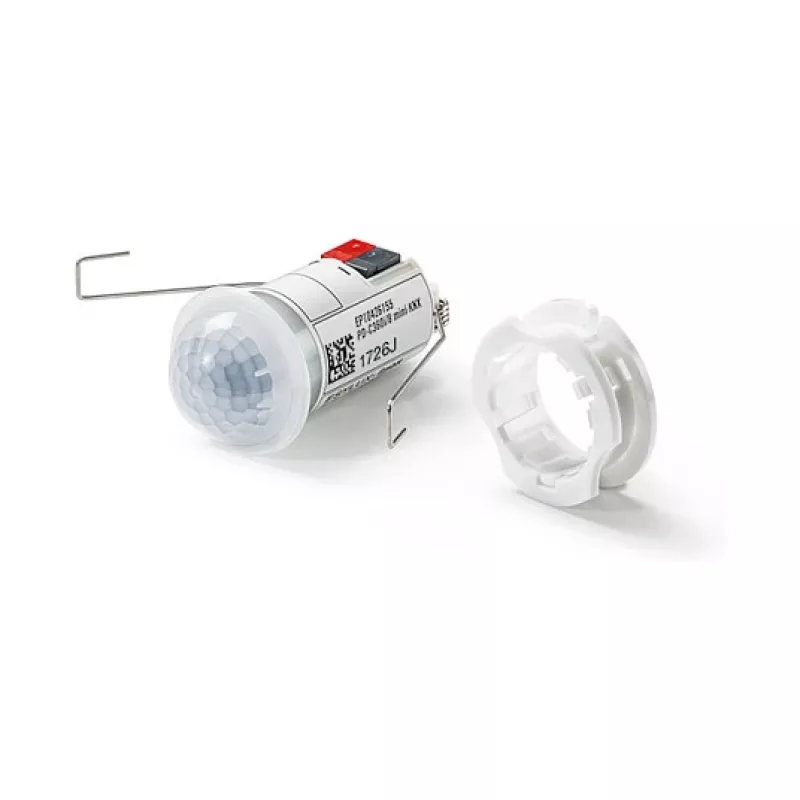

ESYLUX EP10426155 draadloze plafondaanwezigheidsmelder 360° 8m IP55 wit

The ESYLUX EP10426155 is a wireless presence detector designed for ceiling mounting, featuring a 360° detection angle and an 8-meter diameter range at 3m mounting height. It operates within the ESYLUX Light Control (ELC) system and is powered by a CR2450 battery. With an IP55 rating, it is suitable for indoor use in demanding environments. The integrated light sensor measures ambient light from 5 to 2000 lux, allowing for automatic lighting control. Its compact design and flush-mount installation make it ideal for modern interiors.

Advantages

Wireless installation eliminates the need for complex wiring, reducing installation time and cost. The 360° detection angle ensures comprehensive coverage, while the adjustable light sensor range provides flexibility for various lighting scenarios. The IP55 rating offers protection against dust and water jets, ensuring reliability in challenging conditions.

Suitable for

• Office spaces
• Conference rooms
• Corridors and stairwells

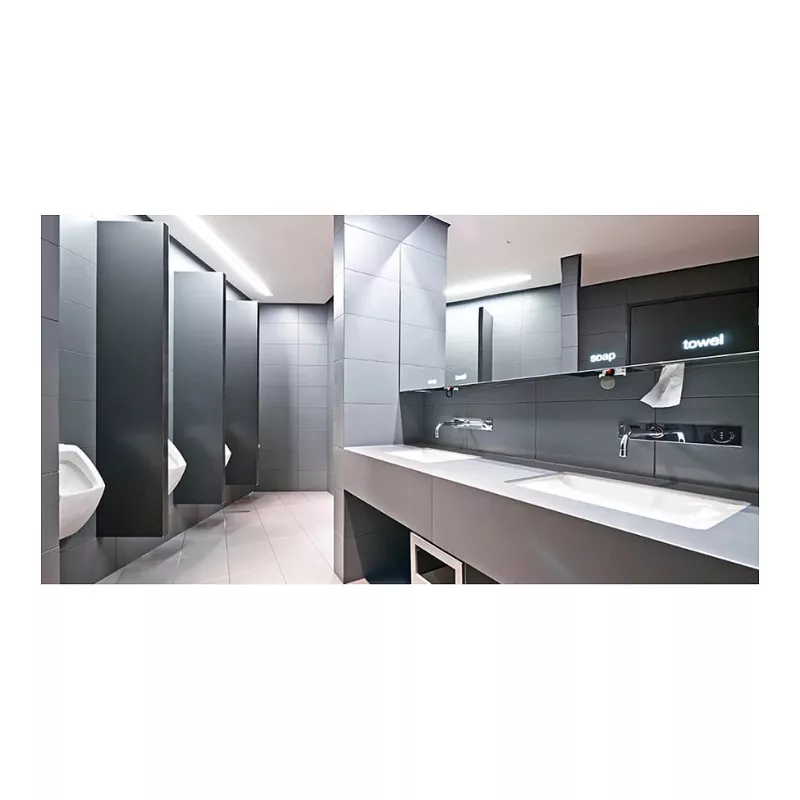

• Bathrooms and wet areas
• Warehouses and storage areas

Key specifications

• Product Type: Presence Detector
• Mounting Type: Ceiling, Flush-mounted
• Detection Angle: 360°
• Detection Range (Diameter): 8 m (at 3m mounting height)
• Wireless Technology: ESYLUX Light Control (ELC)
• IP Rating: IP55
• Application Area: Indoor
• Color: White
• Light Sensor Range: 5 - 2000 Lux (adjustable)
• Recommended Mounting Height: 2.5 - 3.5 m
• Power Supply: Battery-operated (CR2450)
• Functions: Presence detection, Light level measurement
• Operating Temperature: -20°C to +50°C
• Housing Material: UV-stabilised polycarbonate
• Installation Depth: 25 mm
• Visible Diameter: 33 mm
• Compatibility: ESYLUX Light Control (ELC) system

Recommendations

For optimal performance, mount the detector at a height of 2.5 to 3.5 meters and ensure the area is free from obstructions. Use only recommended CR2450 batteries for reliable operation. This device is part of the ESYLUX Light Control ecosystem, enabling seamless integration with other ELC components.
