ESYLUX MD 180 Basic passieve infraroodbewegingsmelder, muurmontage, wit, IP44, 2,5 m kabel

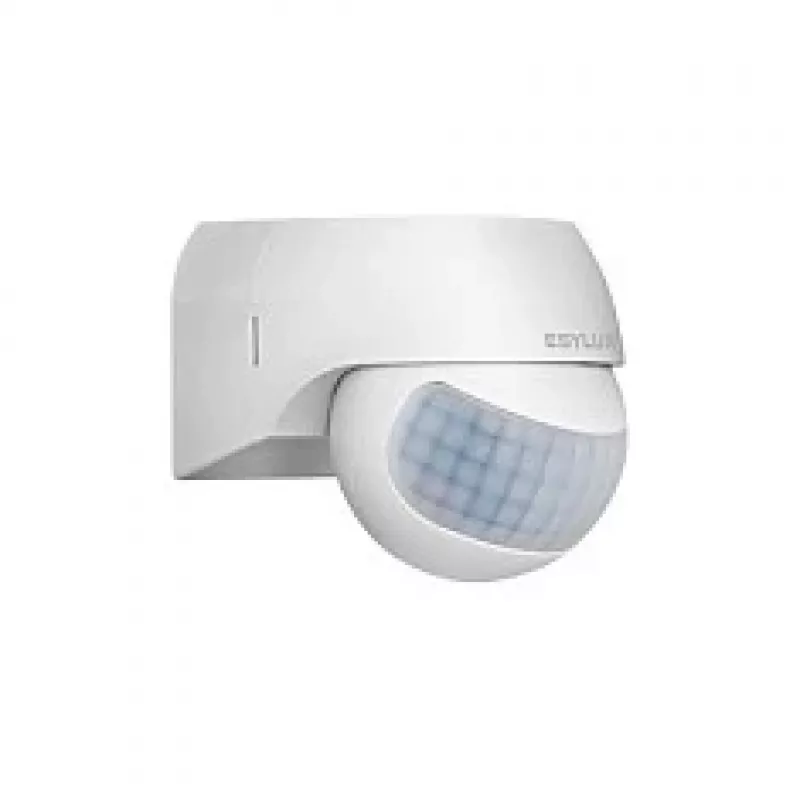

The ESYLUX MD 180 Basic is a reliable passive infrared (PIR) motion detector designed for wall-mounted indoor and outdoor use. With a 180° detection angle and a radial range of up to 12 m (tangential up to 18 m), it provides comprehensive coverage for residential and commercial applications. The detector features a 2.5 m connection cable and is rated IP44 for protection against splashing water. Its UV-stabilised polycarbonate housing ensures long-lasting durability.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Simple surface mounting and adjustable settings (time delay 10 sec–30 min, twilight threshold 5–2000 lux) offer flexibility. The optional manual override via push button adds convenience.

Suitable for

• Indoor corridors, stairwells, and entrance areas
• Outdoor covered areas such as canopies and porches
• Warehouses, offices, and commercial buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range radial: up to 12 m
• Detection range tangential: up to 18 m
• Mounting type: Wall-mounted
• Recommended mounting height: 2.5 m
• Colour: White
• IP rating: IP44
• Power supply: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 300 W
• Time setting range: 10 sec – 30 min
• Twilight switch setting: 5 – 2000 lux
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Installation: Surface-mounted
• Number of channels: 1 (Light)
• Self-consumption: approx. 0.5 W
• Protection class: II
• Control options: Manual override via push button (optional)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and avoid obstructions in the detection field. Use the optional push button for manual control when needed.
