EXERTIS CONNECT Cat.6A S/FTP patchkabel, haaks, 0,7 m, grijs 854287

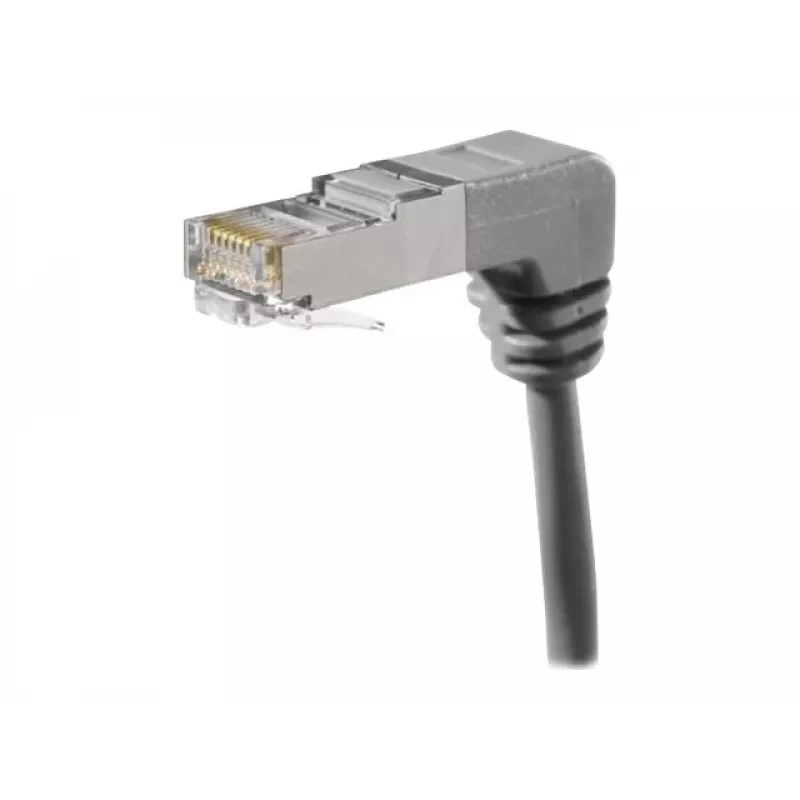

This patch cable stands out with its angled-down connectors on both ends, making it ideal for tight spaces behind desks or in server racks. The Cat.6A S/FTP shielding ensures reliable 10 Gigabit Ethernet performance, while the grey LSZH jacket adds safety in case of fire.

Highlights

• Both connectors angled downwards for space-saving installation
• S/FTP shielding (pairs in foil, overall braid) for maximum EMI protection
• Supports 10GBASE-T up to 500 MHz bandwidth
• Halogen-free LSZH jacket for low smoke and toxicity
• Gold-plated contacts for corrosion resistance and reliable connections

In daily use

With a length of 0.7 m, this cable is perfect for short patch connections in structured cabling. The stranded copper conductors (AWG 26/7) provide flexibility, while the angled connectors help reduce strain and keep cable management neat.

Full specifications

• Cable length: 0.7 m
• Cable standard: Cat.6A
• Cable shielding: S/FTP
• Connector type: RJ45 (8P8C) male, both ends
• Connector angle: Angled downwards, both ends
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• Data transfer rate: 10 Gbps
• Wiring scheme: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Halogen free: Yes
• Flame retardant: Yes (IEC 60332-1)

Final note

Ideal for high-density patching where space is at a premium and performance cannot be compromised.
