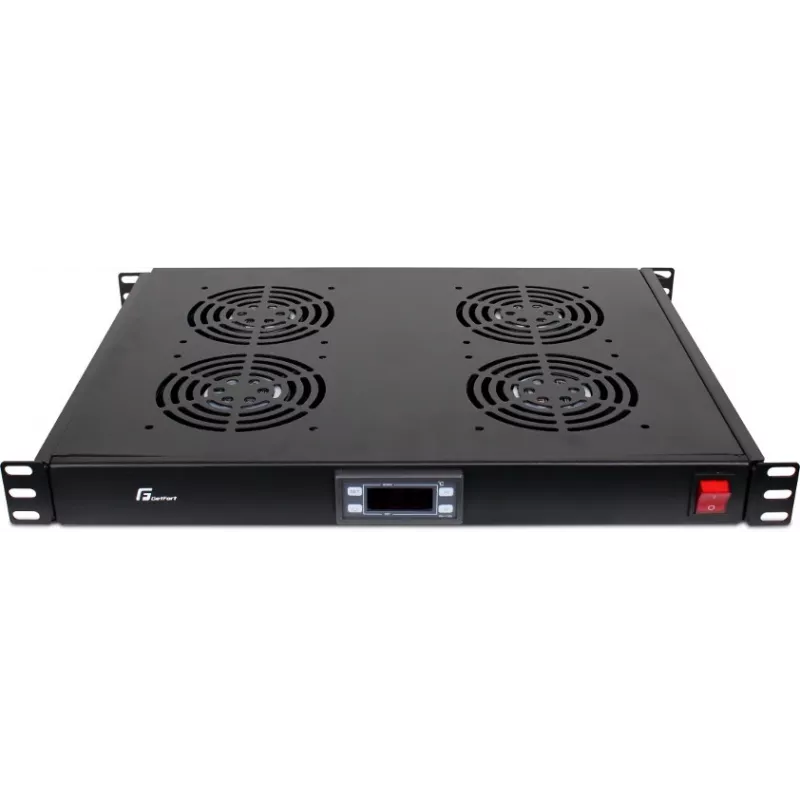

GETFORT GF-FAN4TR 1U rackpaneel met 4 thermostaatgestuurde ventilatoren, 230V, zwart

The GETFORT GF-FAN4TR is a 1U 19-inch rack-mount panel designed to provide efficient cooling for network cabinets and server racks. Equipped with four high-performance axial fans and an adjustable thermostat, this unit ensures optimal temperature control within your rack environment. The robust powder-coated steel construction guarantees durability and long service life.

Advantages

• Efficient cooling with four 92mm fans delivering up to 180 CFM total airflow.
• Adjustable thermostat allows precise temperature control from 0°C to 60°C.
• Compact 1U design saves valuable rack space.
• Simple installation with standard 19-inch rack mounting.
• Low noise operation at max 45 dB per fan.

Suitable for

• Server rooms and data centers requiring active cooling.
• Network cabinets with heat-generating equipment.
• Telecommunication racks needing temperature regulation.

Key specifications

• Rack Unit Size: 1U
• Number of Fans: 4
• Fan Dimensions: 92 x 92 x 25 mm each
• Fan Type: Axial
• Thermostat Control: Yes, adjustable
• Temperature Control Range: 0°C to 60°C
• Power Input: 230V AC, 50/60Hz
• Total Power Consumption: Approx. 60 W
• Total Airflow: Approx. 180 CFM
• Noise Level (Max per fan): Approx. 45 dB
• Material: Powder-coated Steel
• Color: Black
• Mounting Standard: 19-inch Rack Mount
• Power Cable Type: IEC C13 to Schuko (EU)
• Power Cable Length: 1.8 m
• Operating Temperature: 0°C to 60°C
• Operating Humidity: 0 - 90% RH (non-condensing)
• Control Interface: Rotary Thermostat Knob
• Certifications: CE, RoHS

Recommendations

For optimal performance, install the panel in a well-ventilated area and set the thermostat according to your equipment's temperature requirements. Regular cleaning of the fan filters is recommended to maintain airflow efficiency.
