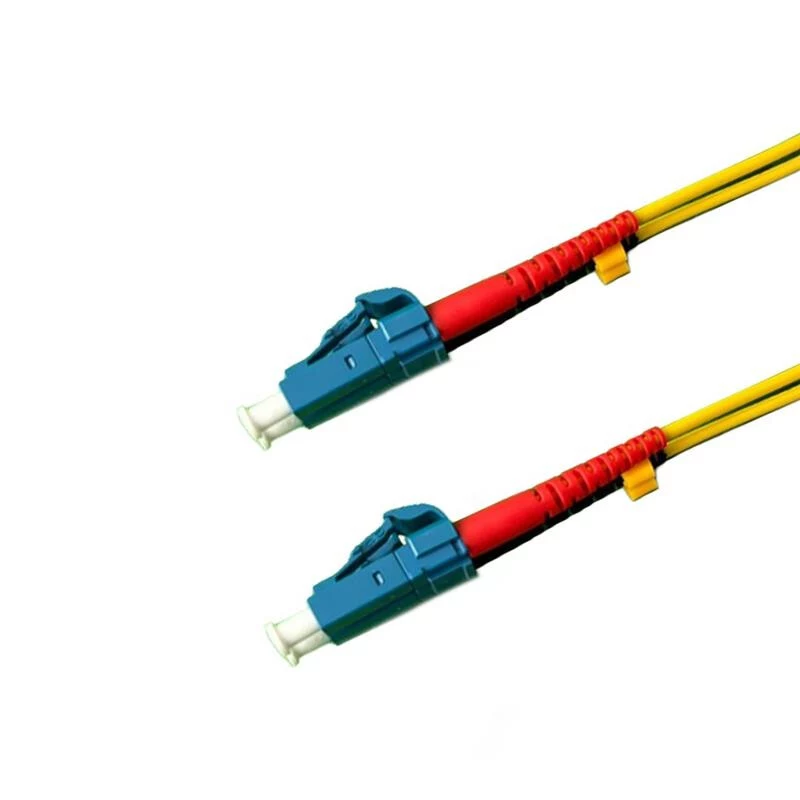

Grafenthal Optical Fibre Cable OS2 LC/UPC-LC/UPC LSZH 2,00m geel

The Grafenthal Optical Fibre Cable OS2 is a high-performance single-mode duplex patch cable designed for reliable data transmission in demanding network environments. Featuring LC/UPC connectors on both ends and a 2.00-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the yellow color facilitates easy identification.

Advantages

This fibre optic patch cable offers exceptional durability and performance. The ceramic ferrule connectors ensure precise alignment and low insertion loss (≤0.3 dB typical). With a minimum bend radius of 10 mm, it is flexible for tight installations. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it ideal for indoor use. Compliance with RoHS, CE, TIA/EIA-568-C.3, and IEC 60793-2-50 standards guarantees quality and reliability.

Suitable for

• Data centers requiring high-speed single-mode connections
• Enterprise networks for backbone and server connectivity
• Telecommunications infrastructure
• FTTx (Fiber to the x) deployments
• Any application demanding low-loss, high-bandwidth fibre optic links

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single-Mode
• Fibre Type: OS2 (ITU-T G.657.A1/A2 & G.652.D compatible)
• Connector A: LC/UPC
• Connector B: LC/UPC
• Cable Length: 2.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Fibre Count: Duplex (2 Fibres)
• Core/Cladding Diameter: 9/125 µm
• Minimum Bend Radius: 10 mm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Cable Outer Diameter: 2.0 mm
• Ferrule Material: Ceramic
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60793-2-50 Type B6.2

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/UPC ports. Store in a clean, dry environment. For longer runs, consider appropriate cable management to maintain bend radius.
