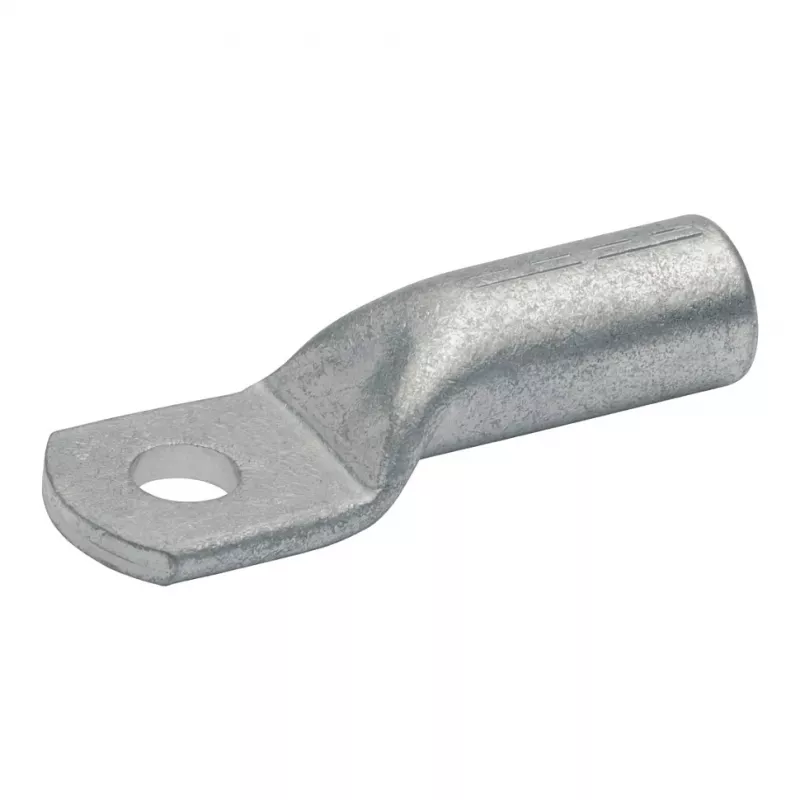

KLAU Krimpkabelschoen 104R8 25mm² M8 galvanisch vertind

Crimp cable lug for secure electrical connections, featuring a seamless tube barrel and galvanic tinning for excellent corrosion resistance. Ideal for terminating 25 mm² copper conductors with an M8 bolt.

Advantages

Manufactured from electrolytic copper (E-Cu) and annealed for optimal crimping, this lug ensures high conductivity and a reliable, low-resistance connection. The galvanic tin plating provides superior protection against oxidation and corrosion, extending service life even in harsh environments. The funnel-shaped cable entry simplifies insertion, reducing installation time and effort.

Suitable for

• Electrical power distribution systems
• Industrial machinery and control panels
• Battery and inverter connections
• Automotive and marine electrical applications
• Any application requiring a durable, tinned copper lug with M8 bolt hole

Key specifications

• Cable cross-section: 25 mm²
• Bolt hole diameter: M8 (8 mm)
• Material: Electrolytic copper (E-Cu), galvanically tinned
• Connection method: Crimp / compression
• Insulation: Uninsulated
• Standard compliance: DIN 46235
• Operating temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V (AC/DC)
• Barrel design: Seamless tube barrel
• Number of bolt holes: 1
• Color: Silver-metallic
• RoHS compliant

Recommendations

For best results, use a calibrated crimping tool designed for 25 mm² copper lugs. Ensure the conductor is clean and fully inserted into the barrel before crimping. The tinned surface allows direct contact with copper or aluminum conductors, but for aluminum, use a suitable joint compound to prevent galvanic corrosion.
