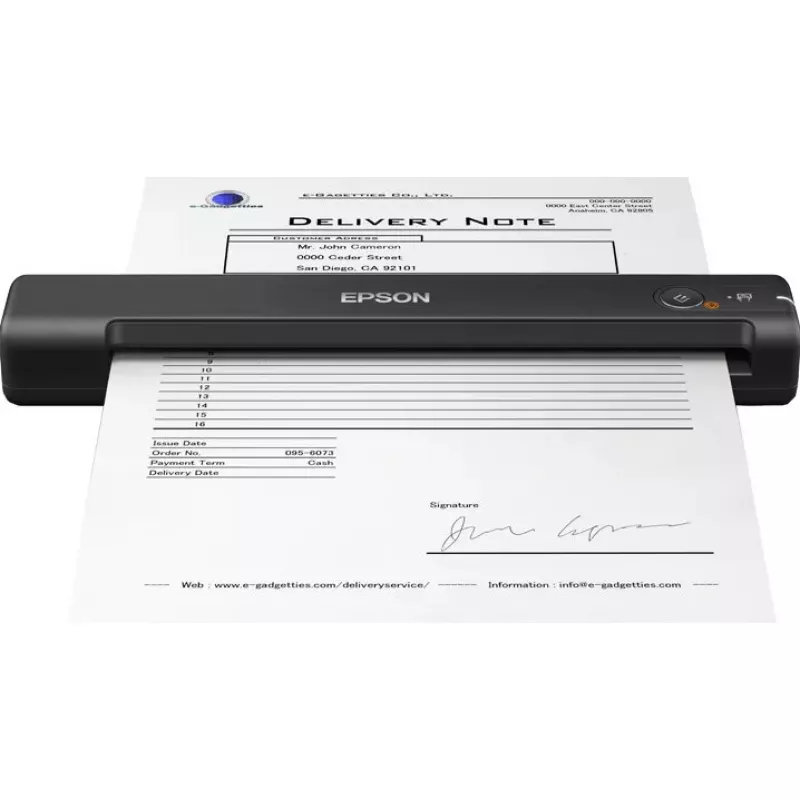

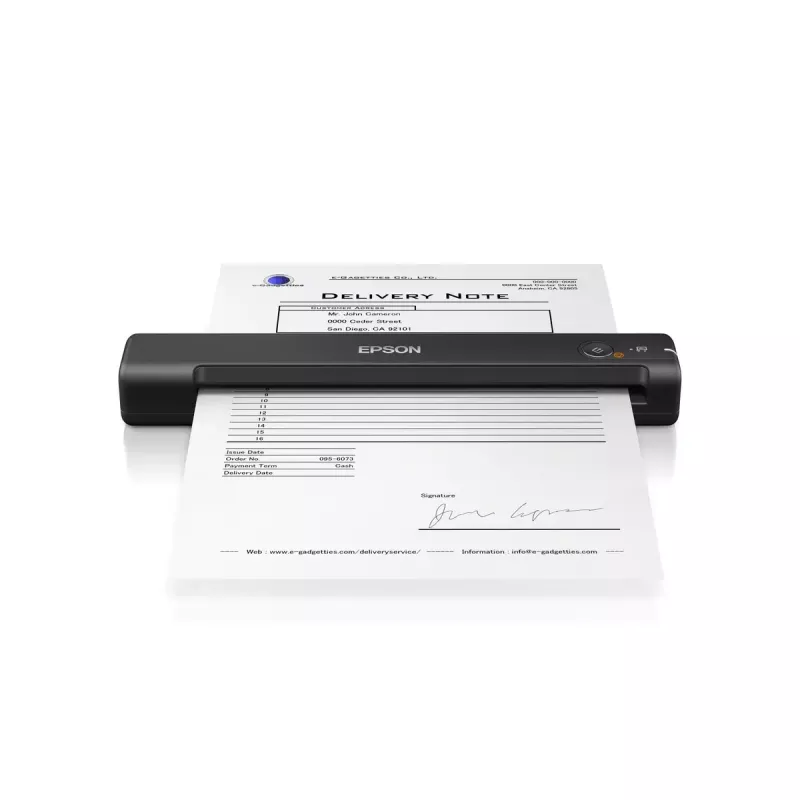

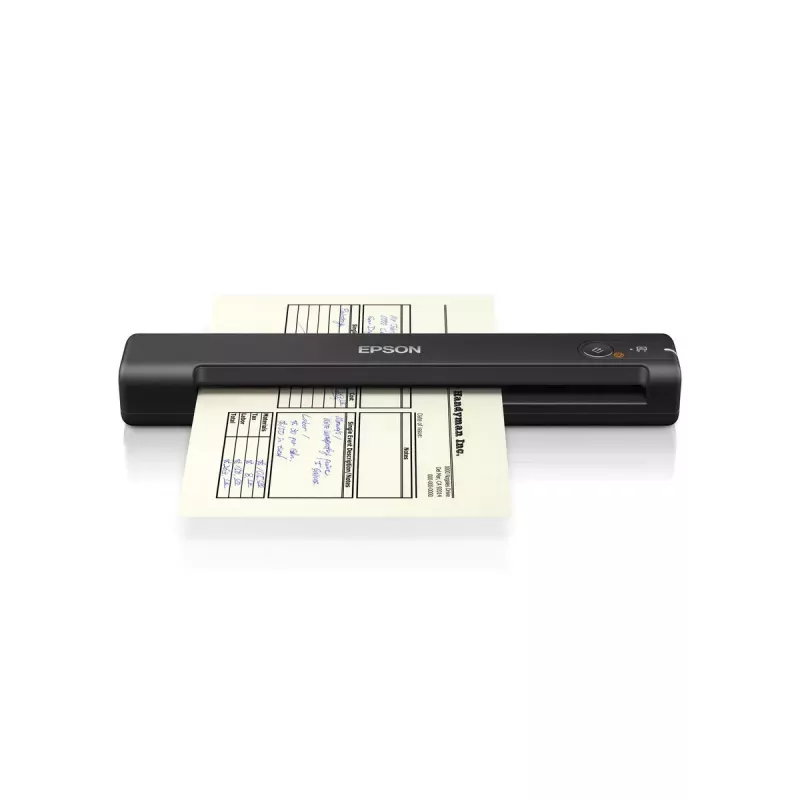

Handscanner Epson WorkForce ES-50

The Epson WorkForce ES-50 is a compact handheld scanner designed for portable, everyday scanning. With USB 2.0 connectivity, a CIS sensor and 600 x 600 dpi optical resolution, it delivers instant scans without warm-up time. The ES-50 supports a variety of media types including business cards, plastic cards and documents up to A4 size, and can scan long paper up to 1.8 metres. Its lightweight black housing and simple USB power make it convenient for home, office or mobile use.

Advantages

The scanner's compact design and USB connectivity enable easy use anywhere. ScanSmart software provides a step-by-step, user-friendly workflow and allows saving in common formats such as PDF, JPEG and TIFF. Continuous automatic feed scanning speeds up repetitive tasks while the CIS sensor ensures quick, reliable scanning with no warm-up delay. The ES-50 accepts a wide paper weight range from 35 gsm to 270 gsm, supporting both thin papers and thicker media.

Suitable for

• Scanning documents up to A4 size for digital archiving

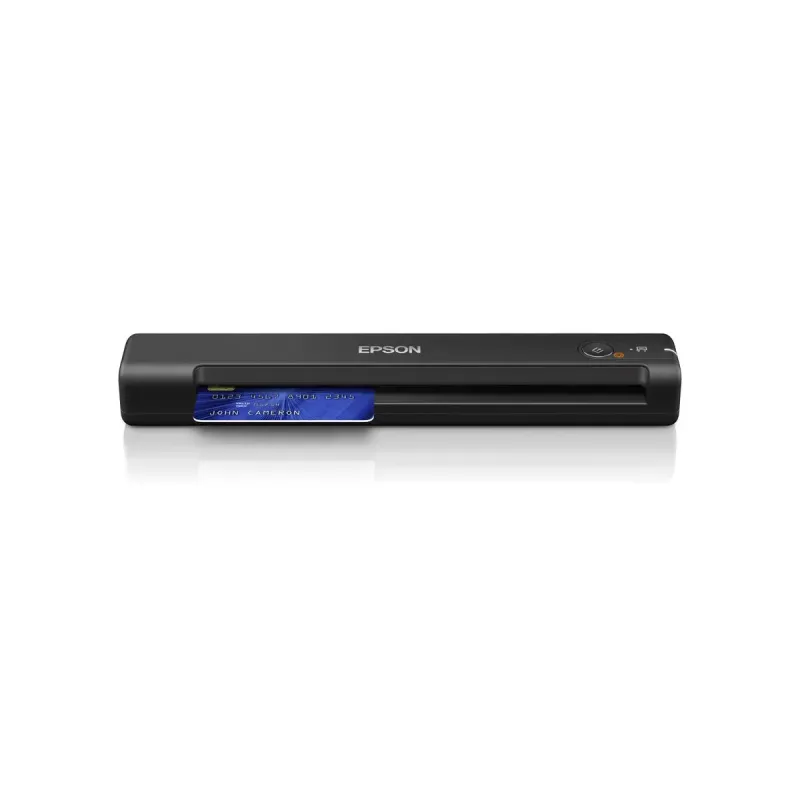

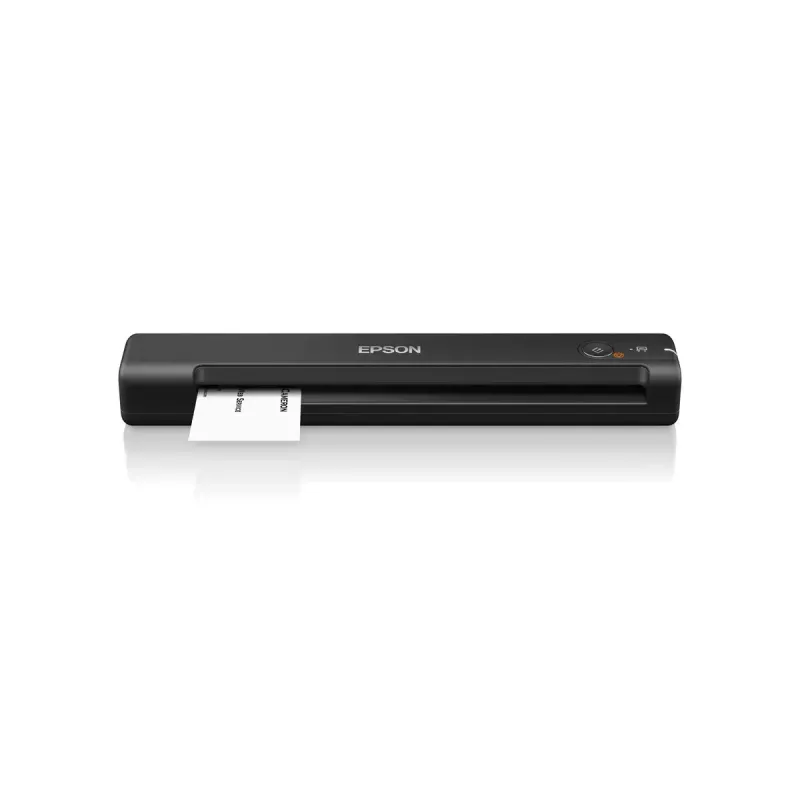

• Scanning business cards and plastic ID or credit cards
• Portable scanning for mobile professionals and field work
• Low-volume daily scanning tasks (duty cycle up to ~300 pages/day)

Key specifications

• Optical scanning resolution: 600 x 600 dpi
• Sensor type: CIS
• Color depth (input/output): 48-bit input / 24-bit output
• Maximum paper size: A4; long paper up to 1.8 m
• Supported paper weight: 35–270 gsm

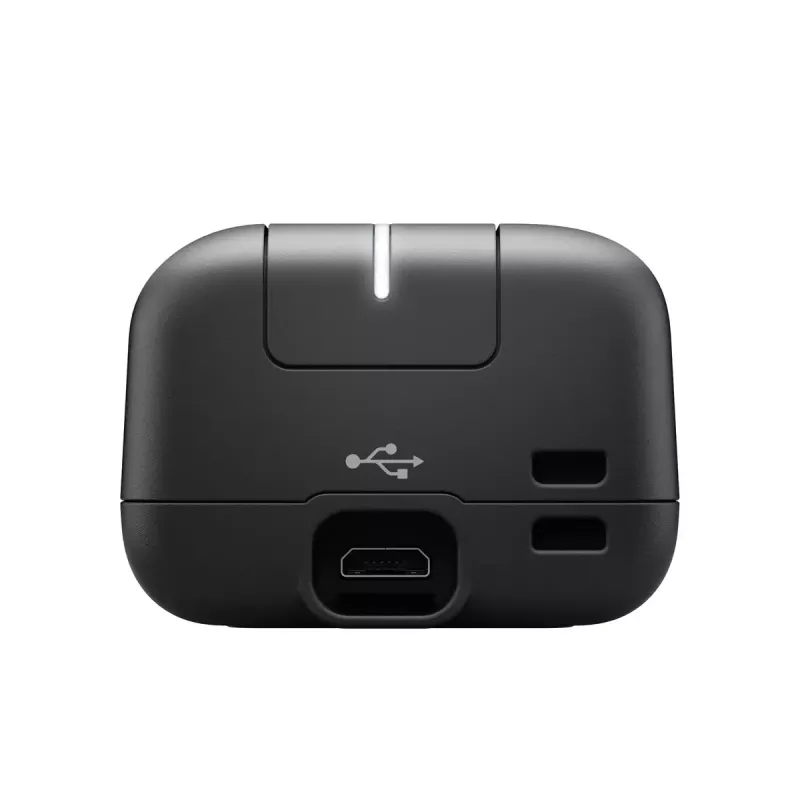

• Interfaces: USB 2.0
• Duplex scanning: No
• Weight: 0.27 kg
• Colour: Black

How to use

Connect the ES-50 to a computer via the USB 2.0 cable and install the ScanSmart software (or appropriate WIA/SANE/ICA drivers) following on-screen instructions. Place the media to be scanned—paper, card or other supported item—into the scanner path and initiate scanning from the ScanSmart application or driver interface. Choose desired file format and destination, then use continuous automatic feed mode for multiple pages. For best results, ensure media is clean and fed straight into the scanner.

Recommendations

For reliable results, use ScanSmart to select the correct media type and resolution. Avoid scanning wet or heavily creased documents. Store the scanner in a dry place and disconnect the USB when not in use. For repetitive daily volumes near the rated duty cycle, allow occasional rest periods to maintain performance.
