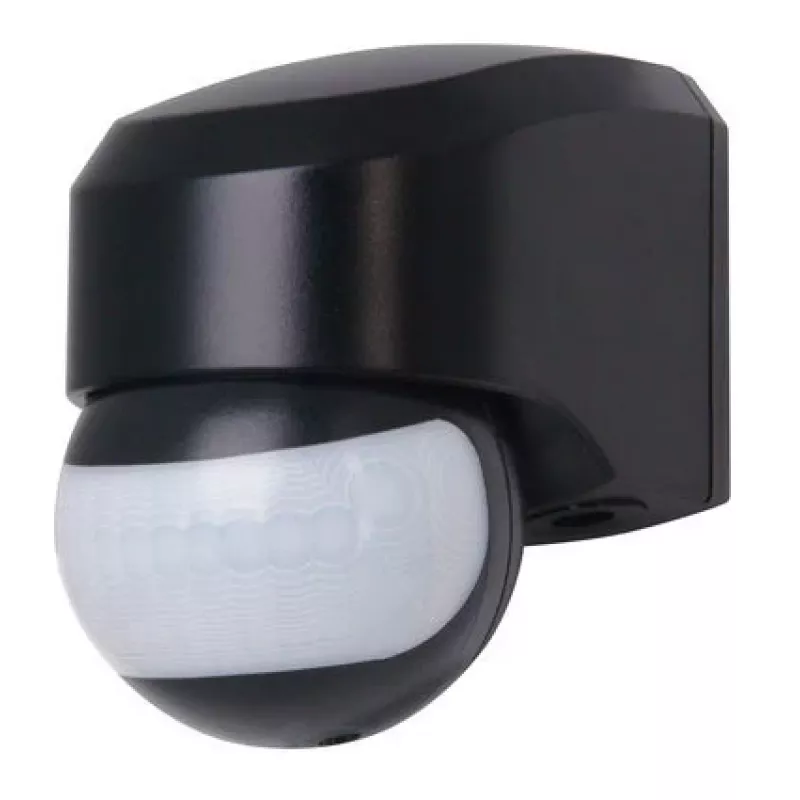

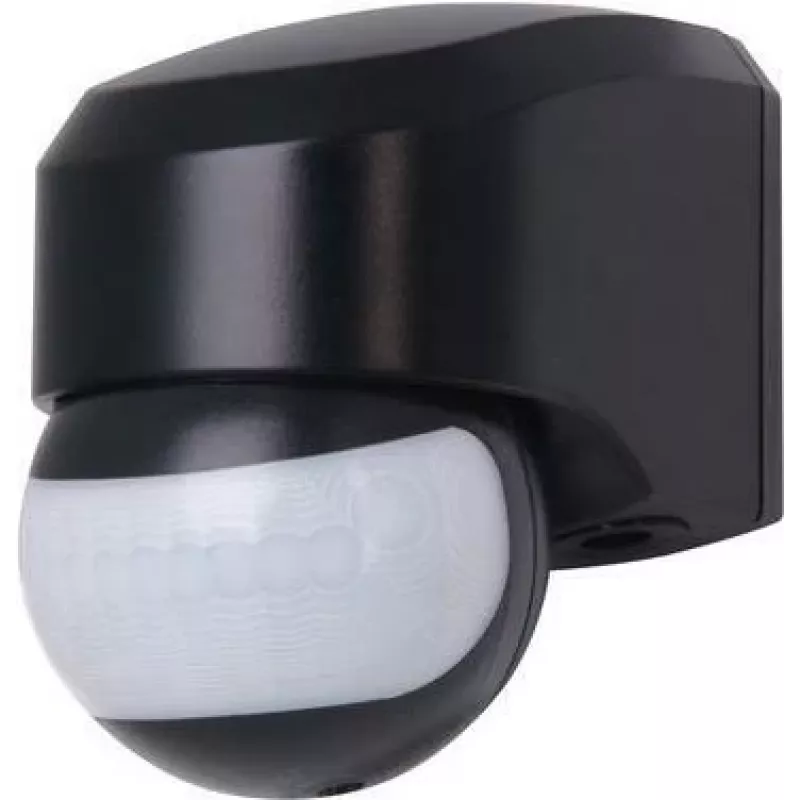

HEINRICH KOPP 823805017 PIR-bewegingsmelder, wandmontage, zwart, 180°, 12 m bereik, IP44

Detect movement up to 12 meters away with a 180° field of view using this PIR motion sensor. The HEINRICH KOPP 823805017 is a wall-mounted infrared sensor in black, suitable for both indoor and outdoor use with an IP44 rating. It operates on 230V AC and can switch loads up to 1000W for incandescent/halogen, 200W for LED, and 500VA for uncompensated fluorescent lighting.

Overview

This motion detector uses passive infrared (PIR) technology to sense movement. It features adjustable time delay from 10 seconds to 15 minutes and twilight threshold from 3 to 2000 lux. The recommended installation height is 1.8 to 2.5 meters. Connection is via a 3-wire system (L, N, L'). The housing is made of UV-stabilized plastic and the operating temperature range is -20°C to +40°C.

What stands out

• Wide 180° detection angle and 12 m range
• High switching capacity: 1000 W incandescent/halogen, 200 W LED
• Adjustable time and twilight settings
• IP44 protection for outdoor and damp locations
• Low standby power consumption of approximately 0.5 W

Technical details

• Sensor type: PIR (Passive Infrared)
• Mounting type: Wall-mounted (surface)
• Colour: Black
• Operating voltage: 230V AC, 50Hz
• Max. switching current: 4.3 A
• Connection type: 3-wire (L, N, L')
• Material: UV-stabilized plastic

Our verdict

A versatile motion sensor for lighting control in outdoor and indoor areas, with robust switching capabilities and flexible settings.
