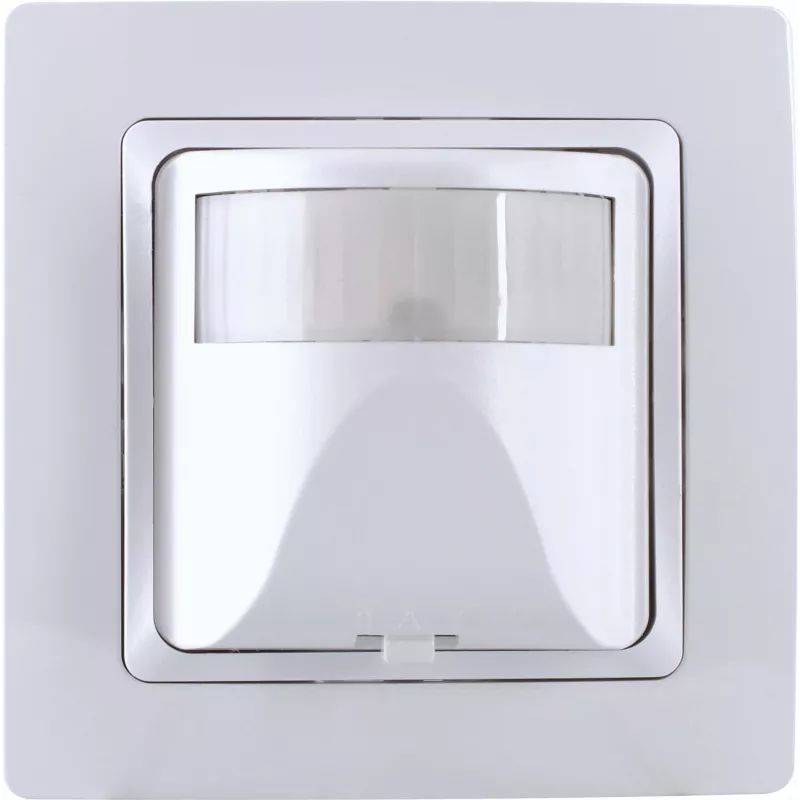

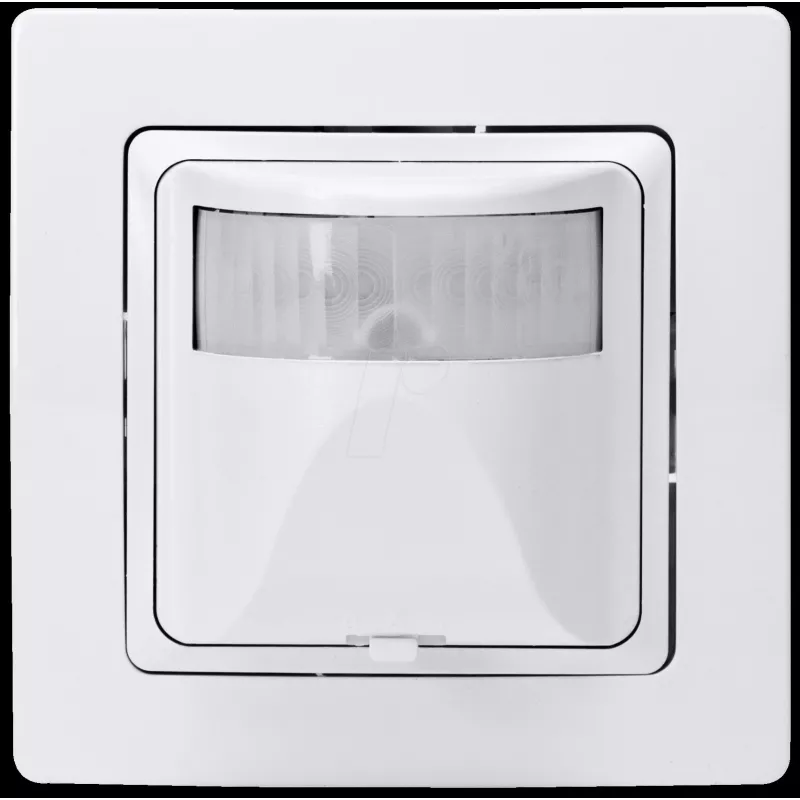

HEINRICH KOPP 808402013 bedrade infrarood-bewegingsmelder, wit, IP20, 230 V AC, 4-240 s, inbouwmontage

The HEINRICH KOPP 808402013 stands out for its precise infrared detection and straightforward wired installation, making it a dependable choice for automated lighting control in indoor spaces. Unlike wireless alternatives, this sensor maintains a stable connection without the need for pairing or battery changes.

Highlights

• Infrared sensor with 180° detection angle and 8 m range
• Adjustable switch-off delay from 4 to 240 seconds
• High switching capacity: 1000 W for incandescent/halogen, 300 VA for LED/fluorescent
• Flush-mounted design for discreet integration
• IP20 rating for indoor use

In daily use

Once wired to a 230 V AC circuit, the sensor automatically switches connected lighting based on movement and ambient light. The light sensitivity can be set between 5 and 2000 lux, allowing it to operate only when needed. Its compact white housing blends into ceilings or walls, and the flush-mount installation keeps it unobtrusive.

Full specifications

• Sensor type: Infrared
• Connectivity technology: Wired
• Product colour: White
• International Protection (IP) code: IP20
• Time setting range: 4 - 240 s
• Power source: AC
• Input voltage: 230 V
• Input frequency: 50 Hz
• Detection angle: 180°
• Detection range: 8 m
• Mounting height: 0.8 - 2.5 m
• Max. switching capacity (incandescent/halogen): 1000 W
• Max. switching capacity (LED/fluorescent): 300 VA
• Light sensitivity: 5 - 2000 lux
• Installation type: Flush-mounted
• Operating temperature range: -20 - 40 °C

Final note

With its robust switching capacity and flexible settings, the 808402013 is a practical solution for corridors, stairwells, and utility rooms where reliable motion detection is essential.
