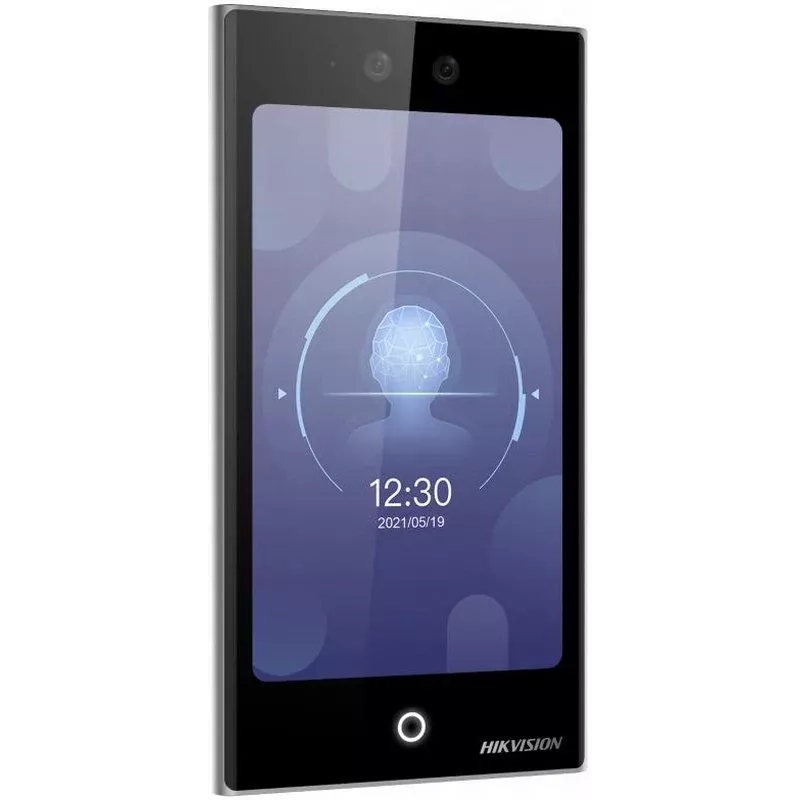

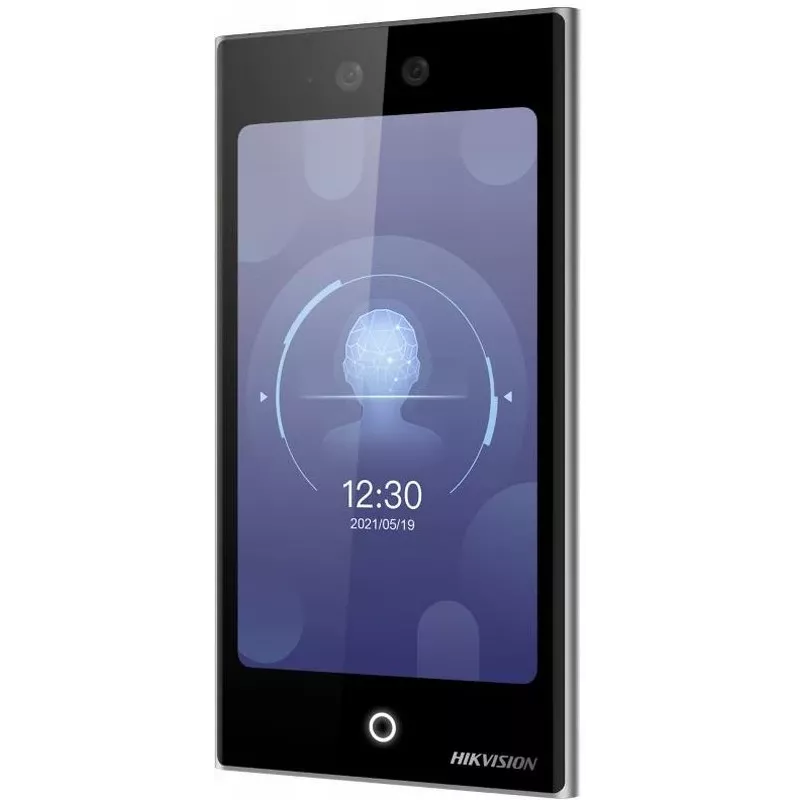

Hikvision DS-K1T673DWX gezichtsherkenningsterminal

The Hikvision DS-K1T673DWX is a high-performance face recognition terminal designed for secure and efficient access control. Featuring a 7-inch LCD touch screen and dual-lens camera with WDR, it delivers fast and accurate authentication for up to 50,000 faces. Ideal for commercial buildings, offices, and industrial sites, this terminal supports multiple authentication modes including face, card, and PIN, with live face detection anti-spoofing technology.

Advantages

With a recognition speed of less than 0.2 seconds per person and a distance range of 0.3 to 3 meters, the DS-K1T673DWX ensures smooth and hygienic contactless entry. Its IP65 protection rating and wide operating temperature range (-30 °C to 60 °C) make it suitable for both indoor and outdoor use. The device supports Wi-Fi connectivity for flexible installation and integrates easily with existing security systems via TCP/IP, Wiegand, and RS-485 interfaces.

Suitable for

• Office buildings and corporate headquarters
• Industrial facilities and warehouses
• Educational institutions and campuses
• Healthcare facilities
• Government and public buildings

Key specifications

• Display: 7-inch LCD touch screen
• Camera: 2 MP dual-lens with WDR
• Face capacity: 50,000
• Card capacity: 50,000
• Event capacity: 100,000
• Authentication modes: Face, card, PIN
• Card type: Mifare 1
• Communication: TCP/IP, Wi-Fi (2.4 GHz)
• Face recognition distance: 0.3 to 3 m
• Recognition speed: < 0.2 s per person
• Anti-spoofing: Live face detection
• Power supply: 12 VDC / 2 A
• Operating temperature: -30 °C to 60 °C
• Protection level: IP65
• Interfaces: Wiegand (1), RS-485 (1), USB 2.0 (1), alarm 2 in / 1 out

Recommendations

For optimal performance, mount the terminal at a height of 1.5 meters and ensure adequate lighting. Pair with Hikvision access controllers for a complete security solution.
