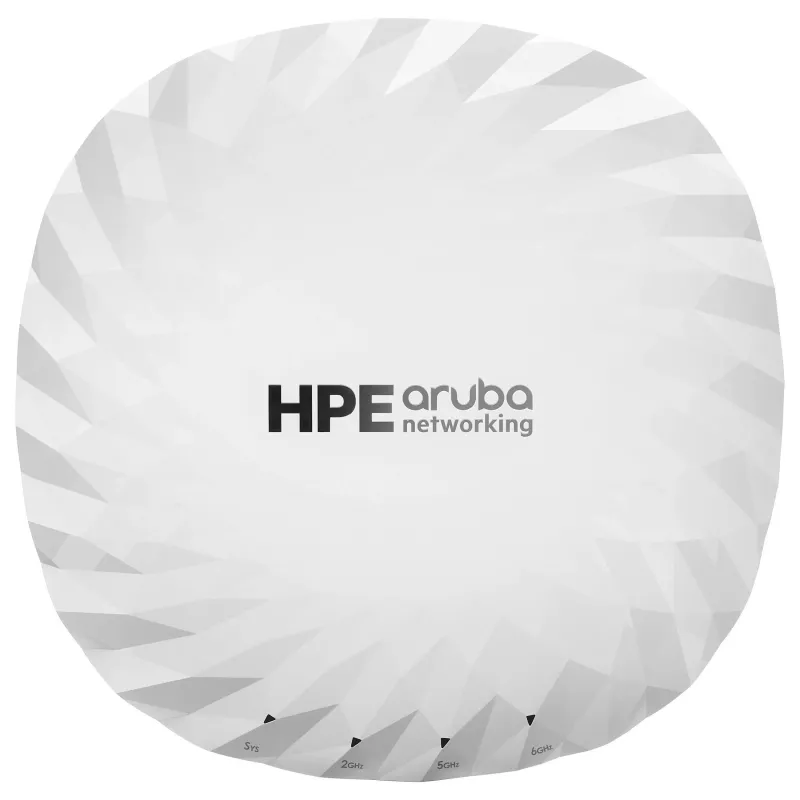

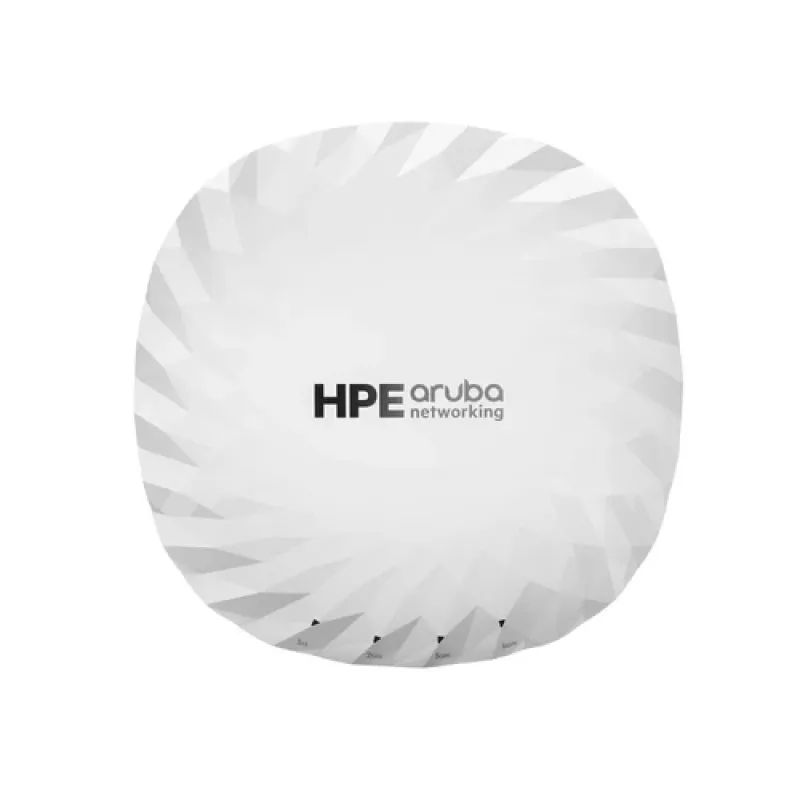

HPE Aruba Networking AP-735 (RW) tri-radio 2x2 Wi-Fi 7 interne antennes 5-pack campus access point

The HPE Aruba Networking AP-735 (RW) is a tri-radio, dual-band Wi-Fi 7 access point engineered for high-density campus environments. This 5-pack offers a cost-effective solution for deploying consistent, high-performance wireless coverage across large areas, delivering the speed and efficiency demanded by modern enterprises.

Highlights

• Wi-Fi 7 (802.11be) technology delivers blazing-fast speeds up to 9.3 Gbps aggregate data rate.
• Tri-radio design with dedicated 2.4 GHz, 5 GHz, and 6 GHz bands ensures optimal performance and capacity.
• 2x2:2 MIMO configuration on each band provides reliable connectivity for multiple devices.
• Internal omnidirectional antennas simplify deployment and reduce clutter.
• Two multi-gigabit Ethernet ports (5 GbE and 2.5 GbE) ensure wired backhaul keeps pace with wireless throughput.
• Integrated Bluetooth Low Energy (BLE) 5.3 and Zigbee for IoT and location-based services.

In daily use

Ideal for universities, hospitals, and large corporate offices, the AP-735 handles demanding applications like video conferencing, cloud access, and IoT sensor networks with ease. Its tri-radio architecture allows simultaneous operation across all bands, reducing interference and improving user experience. The 5-pack simplifies procurement and ensures uniform coverage across multiple rooms or floors.

Full specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Radio Configuration: Tri-Radio (2.4 GHz, 5 GHz, 6 GHz)
• MIMO: 2x2:2 per band
• Antenna Type: Internal Omnidirectional
• Max Aggregate Data Rate: 9.3 Gbps
• Ethernet Ports: 1x 5 Gigabit Ethernet (5GBASE-T), 1x 2.5 Gigabit Ethernet (2.5GBASE-T)
• PoE Support: 802.3bt (Class 6) for full functionality, 802.3at (Class 4) for limited functionality
• IoT Radio: Bluetooth Low Energy (BLE) 5.3, Zigbee
• USB Port: 1x USB 2.0 Type A
• Processor: Quad-core ARM Cortex A53
• Memory: 4 GB DRAM, 2 GB Flash
• Management Platform: Aruba Central, Aruba OS 10, Aruba Instant OS
• Operating Modes: Campus AP, Instant AP
• Security Features: WPA3, Enhanced Open, WPA2/WPA3 Mixed, OWE
• Mounting: Ceiling rail, Wall (mounting kit sold separately)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Pack Quantity: 5 Access Points
• Regional Variant: RW (Rest of World)

Final note

Elevate your network with the HPE Aruba AP-735 5-pack. Experience the next generation of Wi-Fi with robust security and management features, all in a scalable package. Ideal for organizations ready to embrace Wi-Fi 7.
