InLine 19 inch opvouwbaar rack, 2HE, 24–40 cm diep, met afdekking, zwart

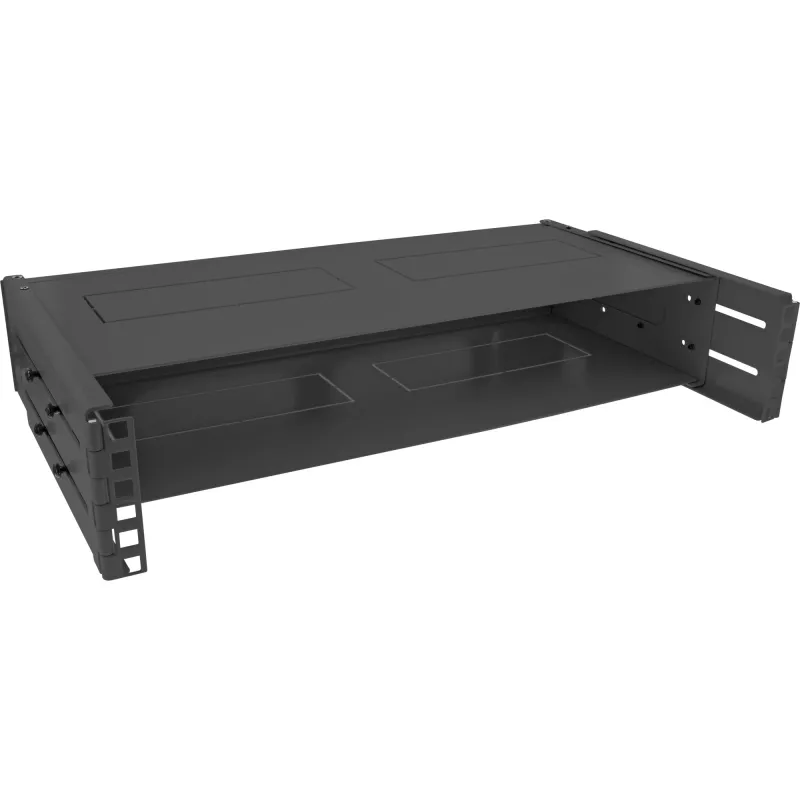

The InLine 19" foldable wall mounted rack delivers a compact 2U solution for mounting network and audio-visual equipment on walls. With an adjustable mounting depth from 240 mm to 400 mm and a 494 mm outer width, this black foldable rack provides a professional appearance while saving floor space. A protective cover is included to shield installed devices from dust and incidental contact, increasing equipment longevity and maintaining a neat installation.

Advantages

The foldable design allows the rack to be collapsed against the wall when not in use or opened for full access to installed devices. Steel construction provides a stable mounting platform for patch panels, switches and small servers within the 2U capacity. Adjustable depth supports a range of device sizes while the included cover protects equipment from dust and accidental contact. The compact width and low profile make it suitable for corridors, server rooms with limited space, retail environments and office communications closets.

Suitable for

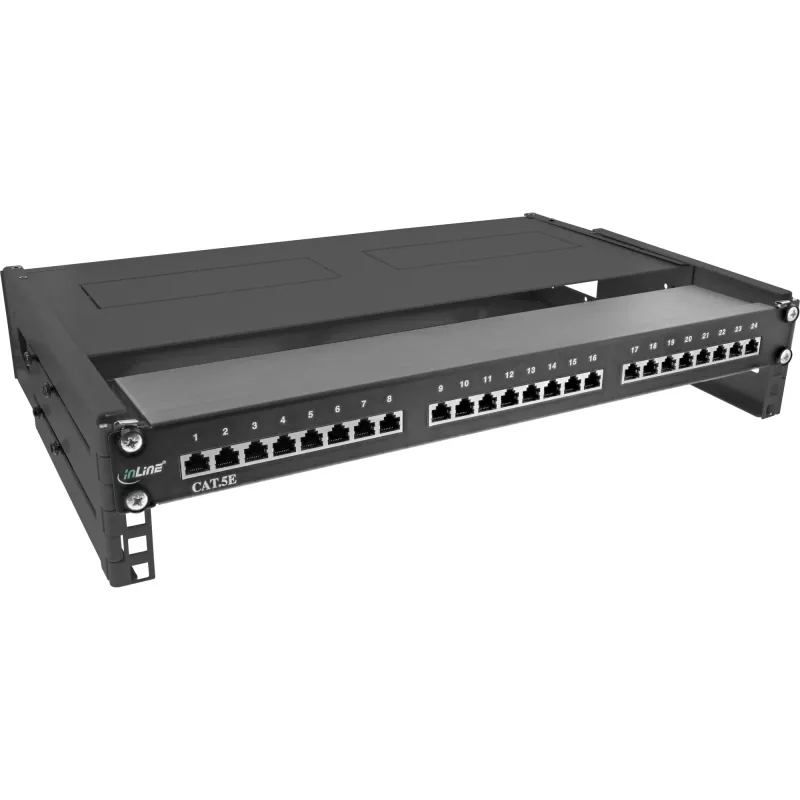

• Mounting network switches, patch panels and small rack-mount appliances
• Space-saving wall installations in offices, retail or technical rooms
• Temporary or semi-permanent equipment setups requiring easy access
• Environments where dust protection and a tidy appearance are important

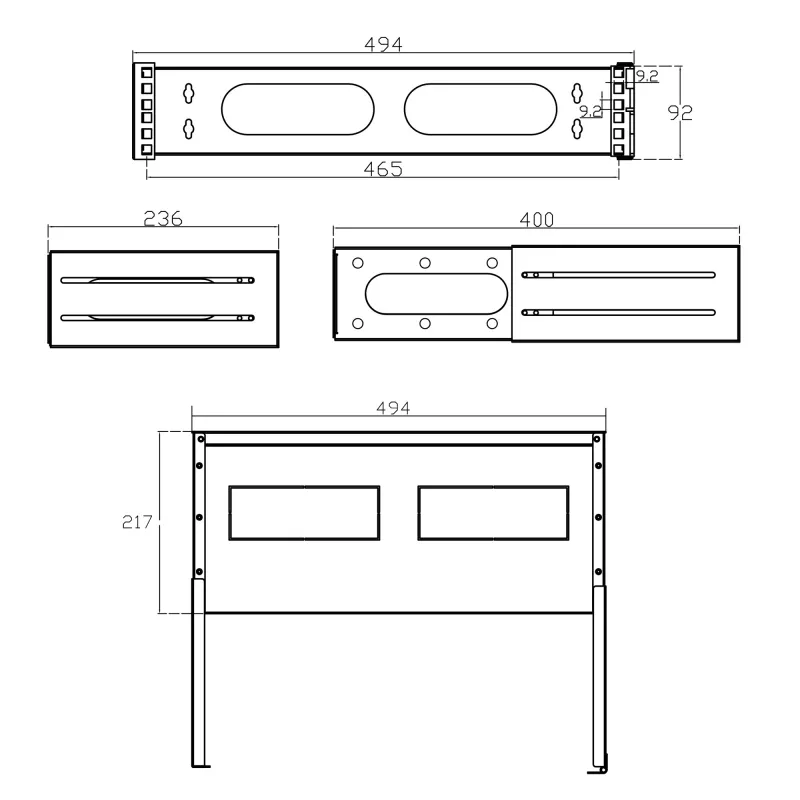

Key specifications

• Rack capacity: 2U
• Outer width: 494 mm
• Height: 92 mm (2U)
• Adjustable mounting depth: 240–400 mm
• Colour: black
• Foldable wall-mounted design with protective cover

How to use

Choose a suitable solid wall location and ensure the mounting surface can support the intended load. Fix the rack to the wall using appropriate anchors and hardware for the wall material, ensuring it is level. Adjust the mounting depth to accommodate the depth of the device(s) to be installed, secure equipment to the 19" mounting rails within the 2U space, and close or fold the rack as required. Use the included cover to protect installed devices from dust when closed.

Recommendations

Install on load-bearing walls or use proper reinforcement; check device weight against the mounting method. Allow sufficient clearance for cabling and ventilation and avoid placing heat-generating equipment in a fully enclosed, non-ventilated space. Regularly inspect mounting hardware and cover condition to maintain safe and reliable operation.
