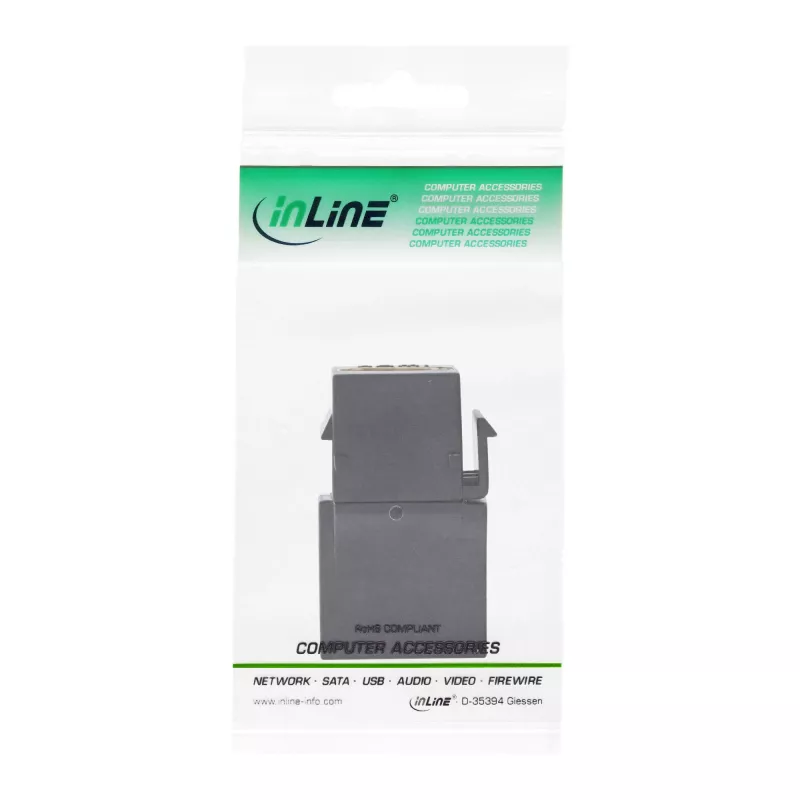

InLine HDMI Keystone snap-in module, 4K/60Hz, HDMI AF/AF haaks zwart

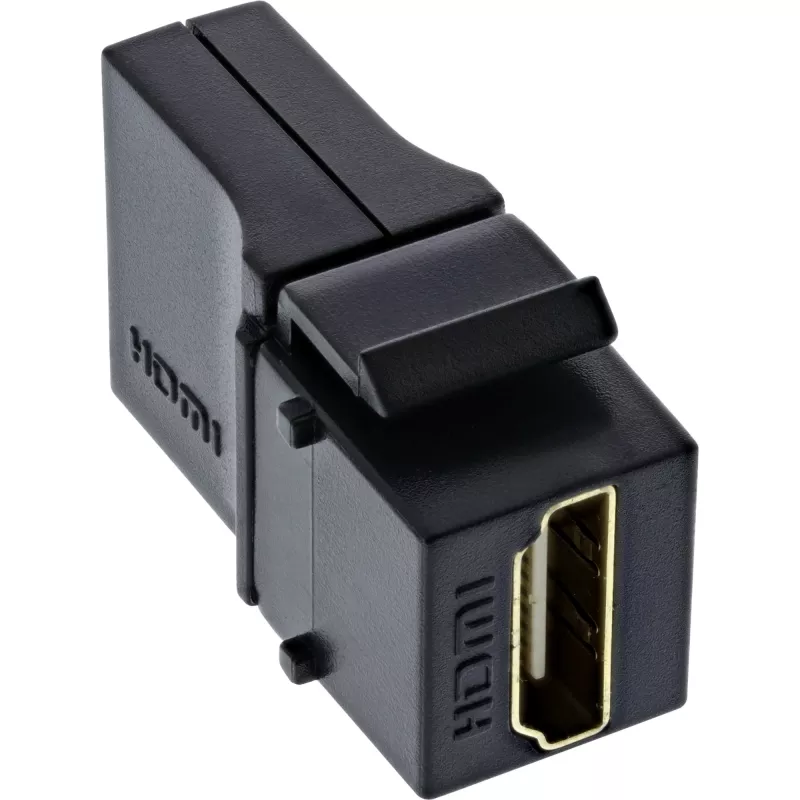

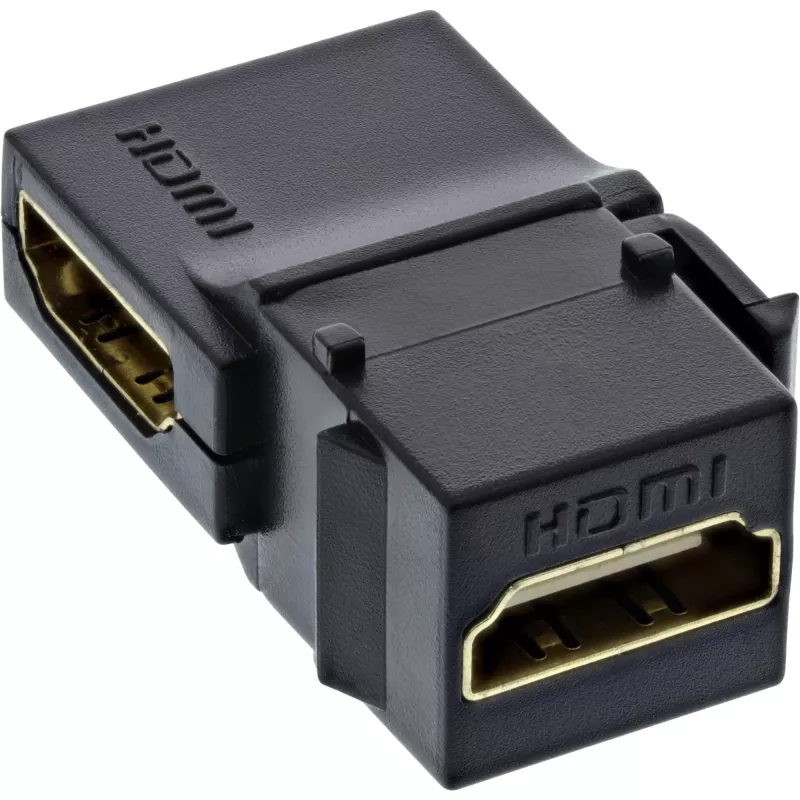

The InLine HDMI Keystone Snap-In module 4K/60Hz 76202N provides a compact, keystone-compatible HDMI connection for wall plates and patch panels. Designed with an HDMI A female on the front and an angled HDMI A on the rear, the module supports up to 4K resolution at 60Hz and fits standard keystone cutouts. The black finish offers a discreet, professional appearance suitable for living room AV installations, conference rooms, and media cabinets.

Advantages

This keystone HDMI module delivers high-bandwidth video and audio transmission with support for 4K@60Hz, ensuring clear image reproduction and smooth motion for modern displays. The snap-in keystone format simplifies installation into compatible wall plates without special tools. The angled rear connector reduces cable strain in shallow backboxes and behind racks, while the black exterior maintains a low-profile look in visible installations.

Suitable for

• Home theater wall plates and AV furniture
• Conference room and meeting room installations
• Custom media cabinets and rack-mounted panels
• Renovations where standard keystone modules are required

Key specifications

• Supported resolution: up to 4K (3840×2160) at 60Hz
• Front connector: HDMI A (female)
• Rear connector: Angled HDMI A
• Form factor: Keystone snap-in module for standard keystone openings
• Colour: Black
• Compatible with standard wall plates and keystone panels

How to use

Insert the module into a compatible keystone opening until it snaps into place on the wall plate or patch panel. Connect an HDMI cable to the front HDMI A female connector to link a source device or display, and route a cable to the angled HDMI A rear connector as required for your installation. Ensure cables are properly seated and avoid excessive bending at the rear angled connector to maintain signal integrity.

Recommendations

For reliable 4K@60Hz performance, use high-quality HDMI cables rated for the required bandwidth and verify that connected devices and displays support the chosen resolution and refresh rate. When installing in shallow boxes or behind racks, orient the angled connector to minimize cable compression and allow adequate ventilation around AV equipment.
