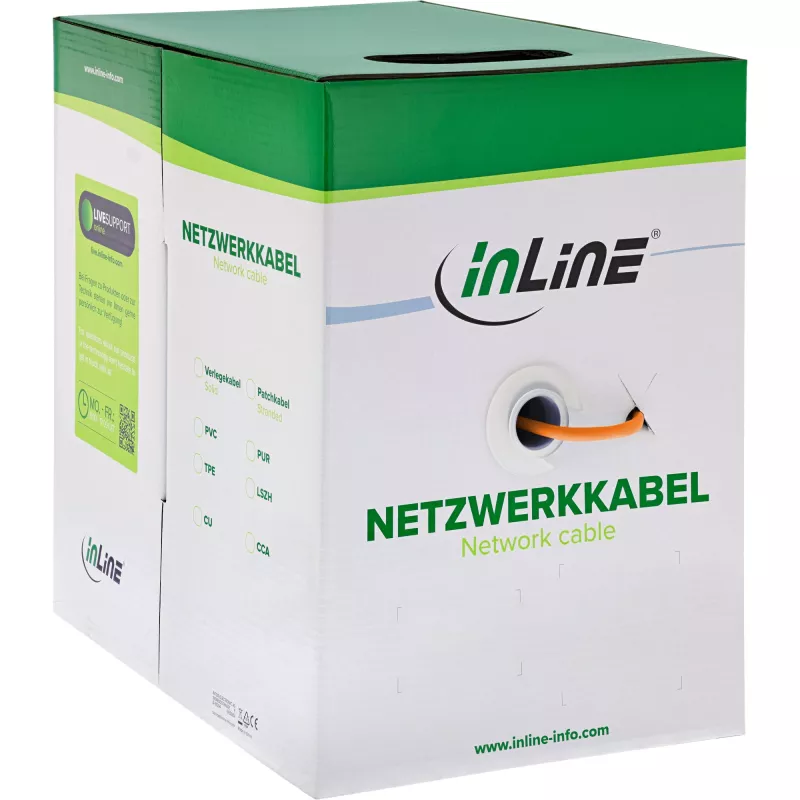

InLine massieve installatiekabel 250MHz S/STP Cat.6 CU AWG23 halogeenvrij 500m

The InLine Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 500m is a solid-conductor network cable designed for structured cabling and permanent installation in commercial and residential buildings. It supports data transmission rates up to 10000 Mbit/s over 10GBase-T environments and offers S/FTP (overall braid with individually foil‑shielded pairs) shielding to reduce crosstalk and external electromagnetic interference. The cable is halogen‑free and comes in a highly visible orange jacket, suitable for active network backbones, riser shafts and equipment rooms.

Advantages

The S/FTP shielding construction combined with AWG23 solid copper conductors provides stable impedance and improved noise immunity for high‑speed Ethernet links. The halogen‑free outer sheath minimizes hazardous gas emission in case of fire, meeting safety considerations for indoor installations. The 250 MHz bandwidth rating enables reliable performance for Cat.6 applications and the 500 m drum length reduces the need for intermediate joins in long runs.

Suitable for

• Structured horizontal and vertical installations in offices and data centers
• 10GBase-T and Gigabit Ethernet uplinks
• Backbone and distribution cabling in risers and comms rooms
• Premises requiring halogen‑free materials for fire safety

Key specifications

• Cabling category: Class E / Cat.6
• Bandwidth: 250 MHz
• Data rate support: up to 10000 Mbit/s (10GBase-T compatible)
• Conductor type: solid copper, AWG23

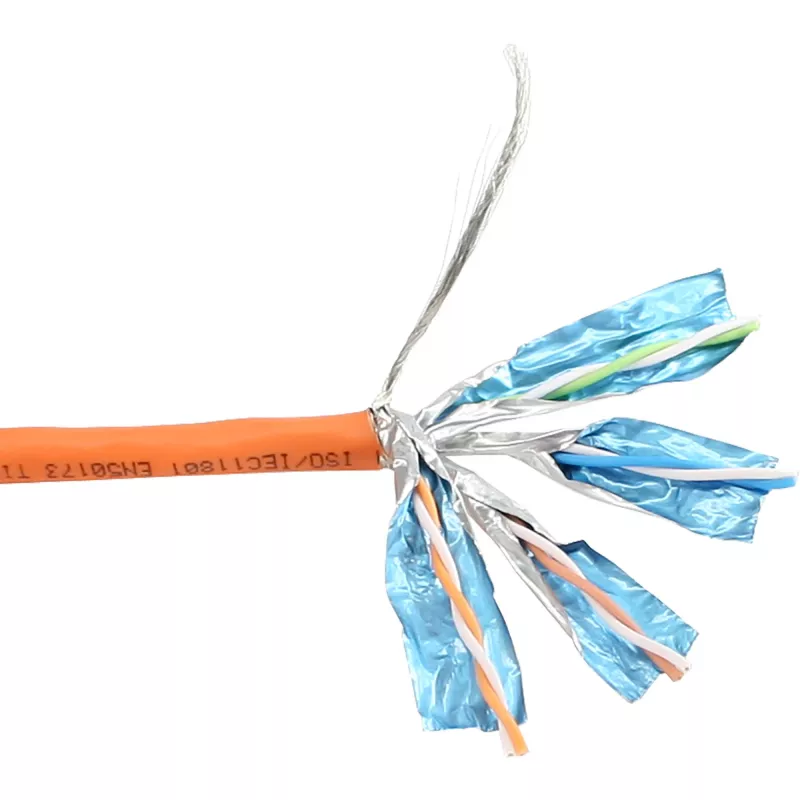

• Shielding: S/FTP — overall braid with individually foil‑shielded pairs
• Sheath material: halogen‑free compound
• Length: 500 m on drum
• Outer colour: orange

How to use

Install the cable as a permanent link within structured cabling topologies, routing it through conduits, cable trays or riser shafts as required by the building plan. Terminate at each end using appropriate Cat.6 keystone jacks or patch panels that accept solid AWG23 conductors and maintain shield continuity by using compatible shielded connectors and proper grounding. Avoid sharp bends and excessive pulling tension during installation to preserve conductor integrity and impedance characteristics.

Recommendations

For optimal performance, perform certification testing after installation using Cat.6 or higher test parameters, verify shield continuity and ground connections, and follow local electrical and fire safety codes when routing halogen‑free cable in plenum or riser spaces.
