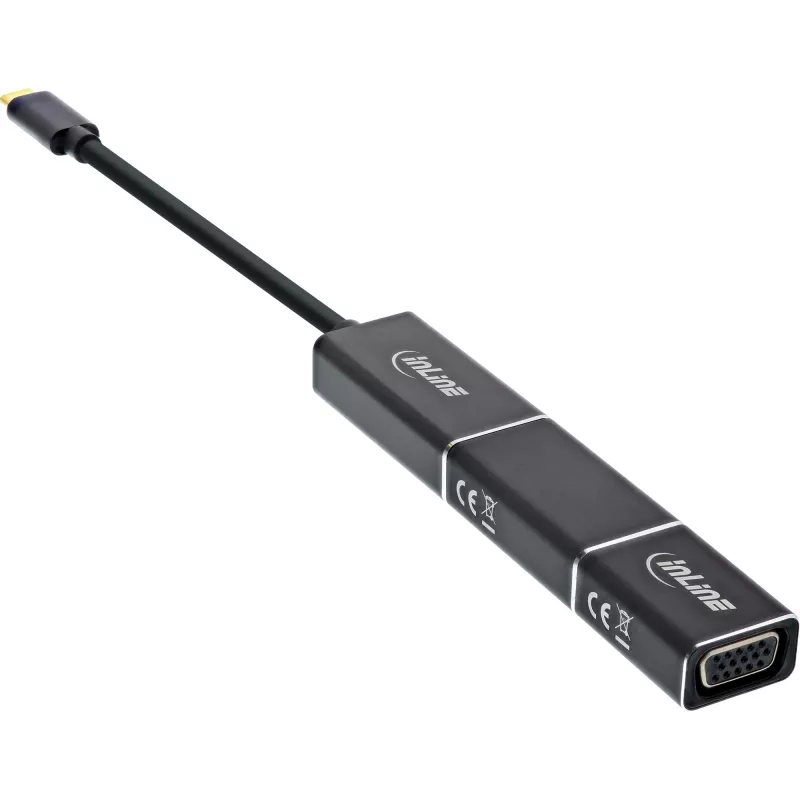

InLine USB-displayconverter set 6-in-1, 4K/60Hz zwart

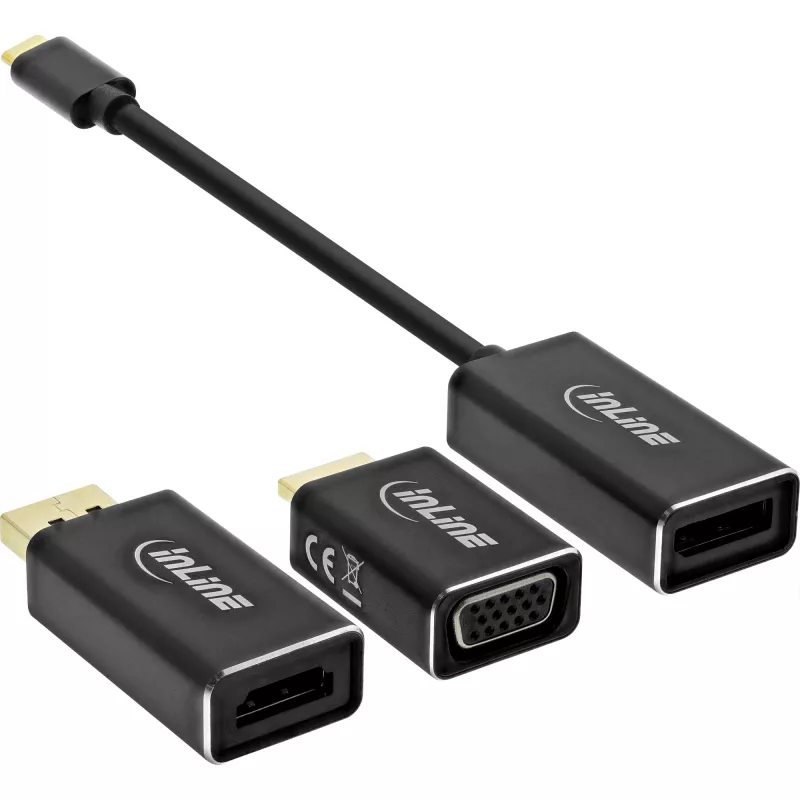

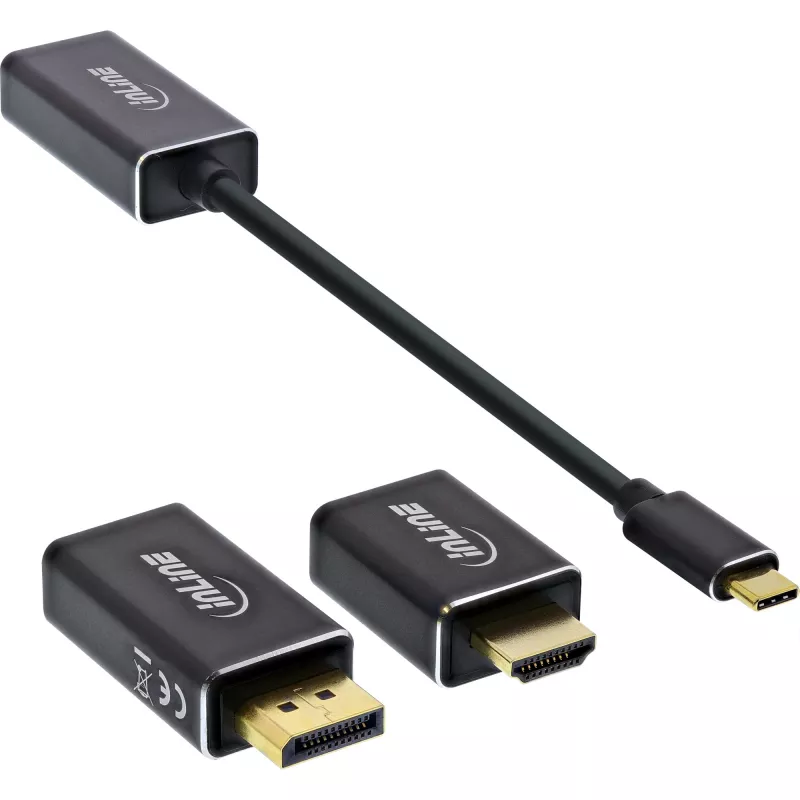

The InLine USB Display Converter Set 6-in-1 (64109B) allows connection of monitors with DisplayPort, HDMI or VGA to a PC USB Type-C port. Each adapter in the set can be used individually or combined with the others to provide six conversion options, supporting DisplayPort 1.2, HDMI 1.4b and USB 3.1 protocols in an aluminium housing. The set supports USB-powered operation and plug & play for quick setup.

Advantages

The adapter set provides six conversion modes including USB Type-C to DisplayPort (up to 3840 x 2160 @60Hz), USB Type-C to HDMI, and USB Type-C to VGA, enabling flexible connection to a wide range of displays. Compact aluminium housings and approximately 10 cm cables make the adapters durable and easy to route. No external power supply is required and the set supports DisplayPort Alternate Mode and Thunderbolt 3 where available.

Suitable for

• Connecting a USB Type-C or Thunderbolt 3 laptop to a DisplayPort monitor
• Converting DisplayPort output to HDMI for TVs or projectors
• Connecting older VGA displays to modern USB Type-C or HDMI sources
• Temporary multi-device setups where quick adapter changes are needed

Key specifications

• Supported conversions: USB Type-C ↔ DisplayPort, DisplayPort ↔ HDMI, HDMI ↔ VGA (six total use modes)
• Maximum resolutions: DisplayPort 3840 x 2160 @60Hz; HDMI 3840 x 2160 @30Hz; VGA 1920 x 1080 @60Hz
• Standards supported: USB 3.1, DisplayPort 1.2, HDMI 1.4b
• Cable length: approx. 10 cm
• Housing: aluminium
• Power: USB powered (no external power supply required)
• Data transfer rate (USB): up to 5 Gbit/s
• Colour: Black

How to use

Connect the appropriate adapter end to your source device (USB Type-C or DisplayPort/HDMI) and the other end to the display input (DisplayPort, HDMI or VGA). For USB Type-C connections, ensure the source port supports DisplayPort Alternate Mode or is a Thunderbolt 3 port. The adapters are plug & play; no driver installation is normally required. Select the correct input on the display if multiple inputs are available.

Recommendations

Use the USB Type-C to DisplayPort option for highest-resolution output (3840 x 2160 @60Hz). For HDMI connections that require 4K, note the HDMI output is limited to 3840 x 2160 @30Hz. Ensure your computer’s USB Type-C port advertises DisplayPort Alternate Mode (often marked with the DisplayPort logo) when attempting USB Type-C to video conversions.
