Interfacekaart DeLOCK 41355 intern PCI Mini PCI Express

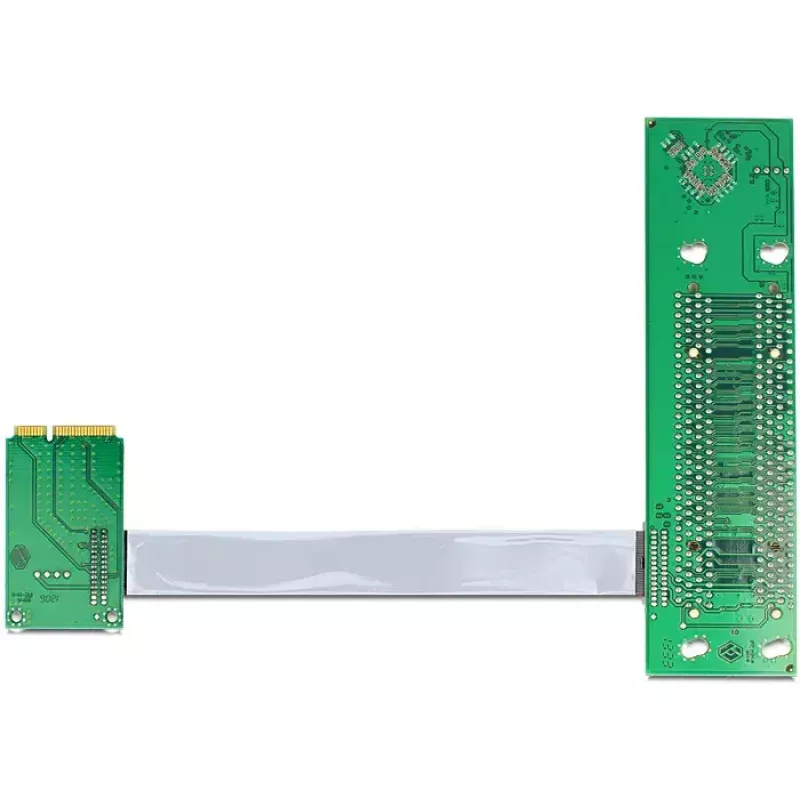

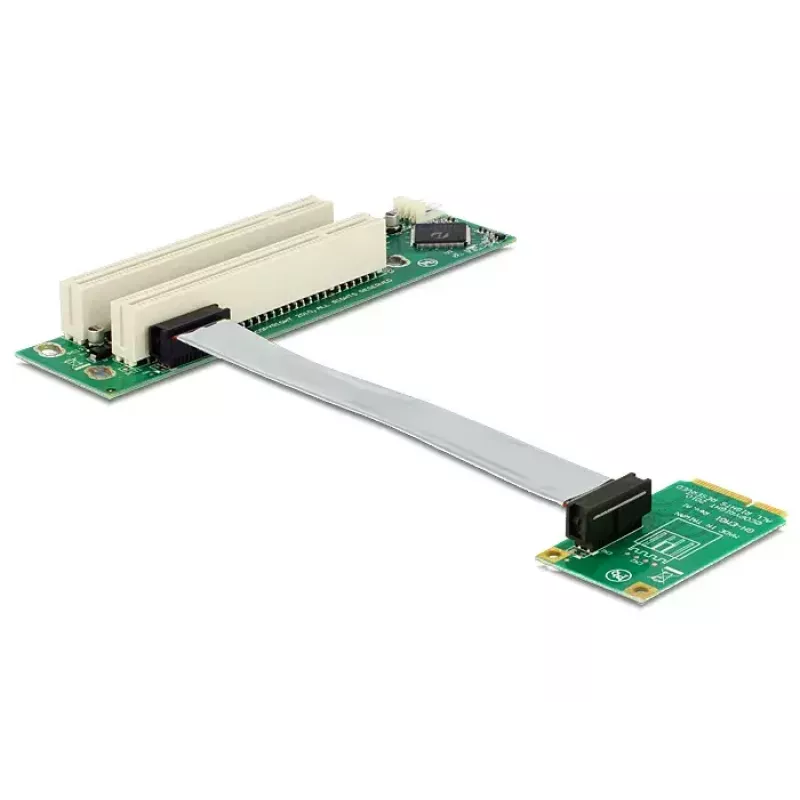

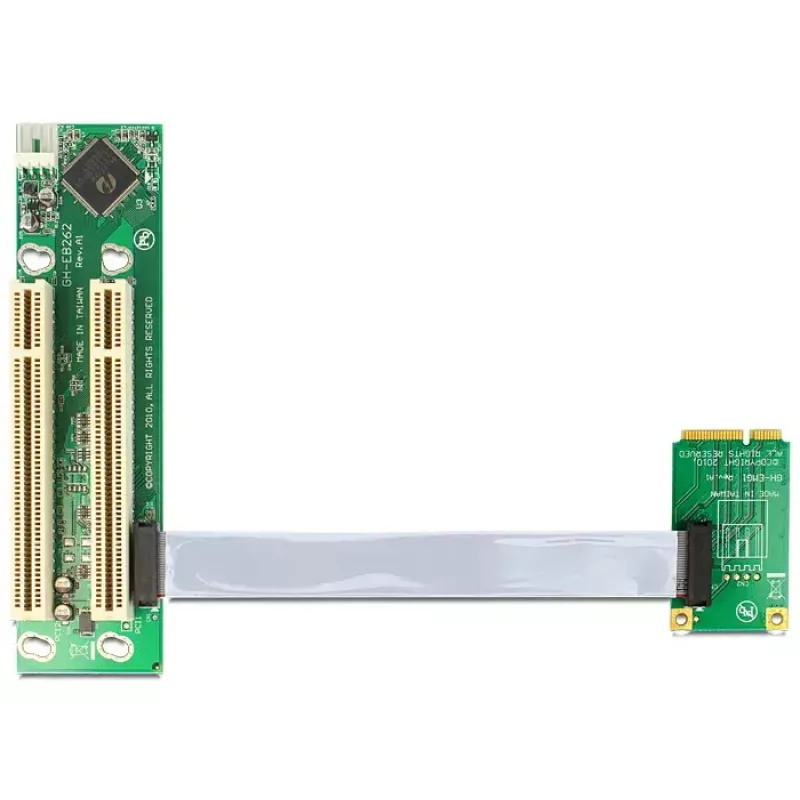

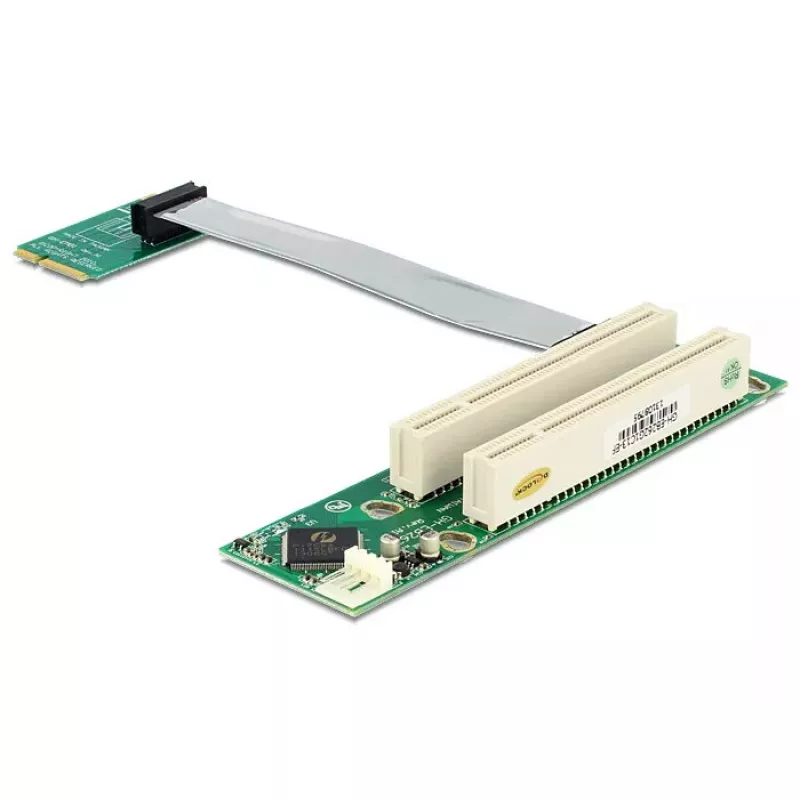

The DeLOCK 41355 Internal PCI Mini PCI Express adapter is a riser card that enables installation of two 32-bit 5 V PCI cards via a Mini PCI Express slot. The adapter uses a flexible cable to position standard PCI cards inside compact computer cases while preserving the Mini PCIe host connection.

Advantages

This adapter provides compatibility between a Mini PCI Express host interface and two internal PCI 32-bit 5 V cards, allowing expansion of legacy PCI devices in systems with Mini PCIe slots. The flexible cable supports space-saving installation and flexible mounting options inside the computer chassis without requiring an external bracket.

Suitable for

• Integrating legacy 32-bit 5 V PCI cards into systems with Mini PCI Express slots
• Compact or small-form-factor PC builds that require internal PCI expansion
• Upgrading embedded or industrial systems where Mini PCIe is available but standard PCI is needed

Key specifications

• Brand: DELOCK
• Model / MPN: 41355
• EAN: 4043619413553
• Host interface: Mini PCI Express
• Output interface: PCI (two PCI 32-bit 5 V slots via riser)
• Installation: Internal, via flexible cable

How to use

Power down the computer and open the case. Insert the DeLOCK 41355 connector into an available Mini PCI Express slot on the motherboard. Attach up to two compatible PCI 32-bit 5 V cards to the PCI output connectors on the riser cable and secure them in the chassis as needed. Close the case and power on the system; verify that the connected PCI cards are recognized by the operating system and install drivers if required.

Recommendations

Ensure the connected PCI cards are 32-bit 5 V compatible before installation. Avoid excessive cable bending and secure cards to prevent movement. Check system BIOS/UEFI settings and install appropriate drivers for the installed PCI cards.
