Interfacekaart DeLOCK 62559

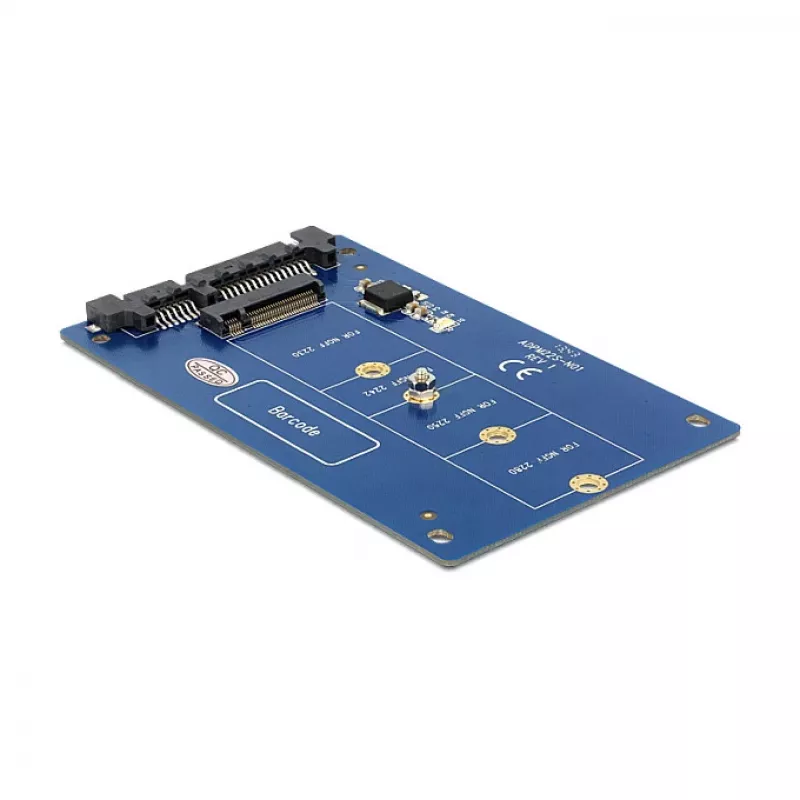

The DeLOCK 62559 interface card allows internal connection of an M.2 NGFF SSD in sizes 2280, 2260, 2242 and 2230 to a SATA interface. It supports SATA transfer rates up to 6 Gbit/s and has a compact PCB design (60 mm x 100 mm x 5 mm) finished in blue. The card converts the M.2 host interface to a standard SATA 22‑pin output, enabling installation inside a system chassis.

Advantages

This adapter provides compatibility between M.2 (NGFF) SSD modules and SATA connections, supporting multiple M.2 lengths (2280/2260/2242/2230). It supports SATA III transfer speeds (up to 6 Gbit/s) and features a small form factor for easy internal installation. The product color and compact dimensions simplify identification and integration into existing systems.

Suitable for

• Connecting M.2 NGFF SSDs to SATA ports
• Upgrading storage in desktop or server systems with available SATA connectors
• Testing or cloning M.2 drives using an internal SATA connection

Key specifications

• Model: DeLOCK 62559
• Host interface: M.2 (NGFF)
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Output interface: SATA 22‑pin
• Maximum transfer rate: 6 Gbit/s (SATA III)
• Dimensions: 60 mm x 100 mm x 5 mm
• Colour: Blue

How to use

Install an appropriate M.2 NGFF SSD (2280/2260/2242/2230) into the M.2 slot on the card and secure it according to the drive length. Mount the interface card inside the system chassis where a SATA 22‑pin connector is accessible, and connect a SATA data cable between the card and the motherboard or SATA controller. Ensure the system is powered off during installation and that the drive is properly fastened to prevent movement.

Recommendations

Use the DeLOCK 62559 in systems with compatible SATA controllers and ensure firmware/OS support for the connected M.2 drive. For optimal performance, connect to a SATA III port and verify secure mechanical installation of the M.2 module of the correct length.
