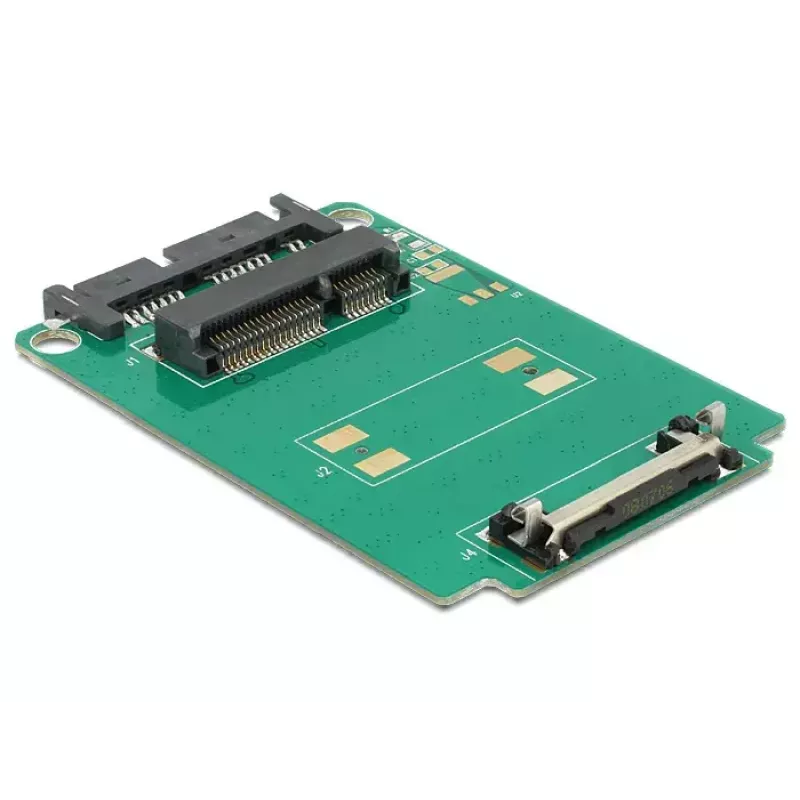

Interne interfacekaart DeLOCK 62520

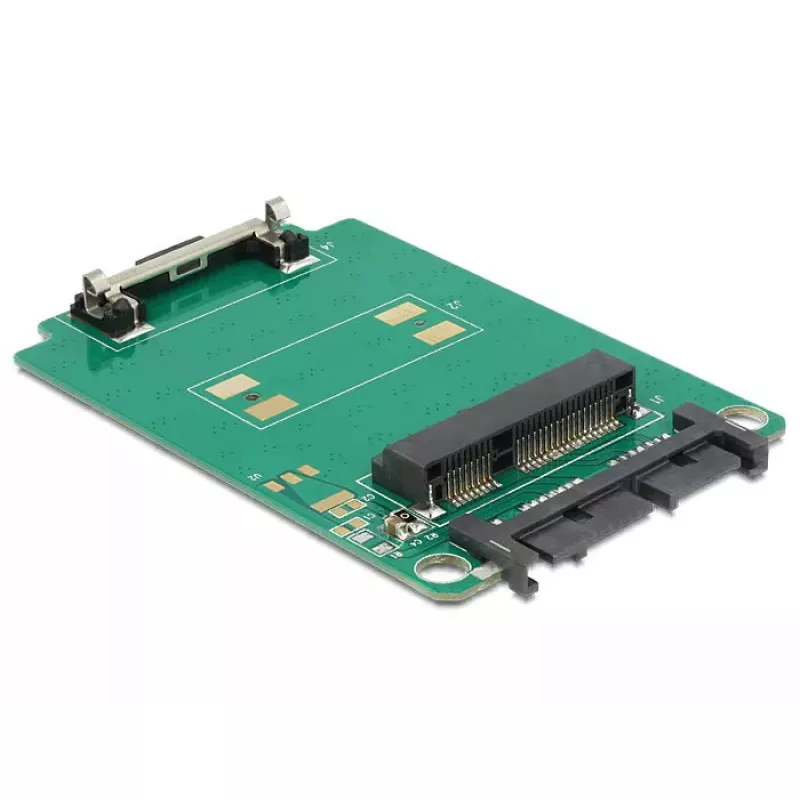

The DeLOCK 62520 internal interface card lets you connect a full–size mSATA SSD and use it in a 1.8" HDD form factor. Designed for internal installation, the card connects via a SATA 16-pin interface and provides a compact solution for adding mSATA storage to desktop or embedded systems.

Advantages

Compact dimensions (76 x 50 x 7 mm) make the card suitable for space-constrained installations. The internal design and standard SATA 16-pin connector enable straightforward integration with motherboards and drive bays that support such interfaces. Built for reliable operation, the adapter preserves the performance characteristics of mSATA SSDs while providing a simple mechanical and electrical interface.

Suitable for

• Upgrading systems with mSATA SSDs where a 1.8" drive form factor is required
• Embedded systems and small form factor PCs with internal SATA 16-pin connections
• Applications requiring compact internal storage expansion

Key specifications

• Brand: DELOCK
• Model / MPN: 62520
• EAN: 4043619625208
• Host interface: mSATA
• Installation: Internal, SATA 16-pin connector
• Dimensions: 76 x 50 x 7 mm

How to use

Install the mSATA SSD onto the DeLOCK 62520 card according to the socket orientation, secure it if required, and insert the card into the system's internal SATA 16-pin connector. Ensure the system is powered off before installation. After connecting, power on the system and verify detection of the mSATA drive in the BIOS or operating system storage management tools.

Recommendations

Use the card inside a compatible chassis with an available SATA 16-pin internal connector. Handle the mSATA SSD and interface card with ESD precautions. Confirm compatibility with your system's BIOS or controller before installation to ensure correct operation.
