IP-recorder 10 kanalen, 8 PoE Lite

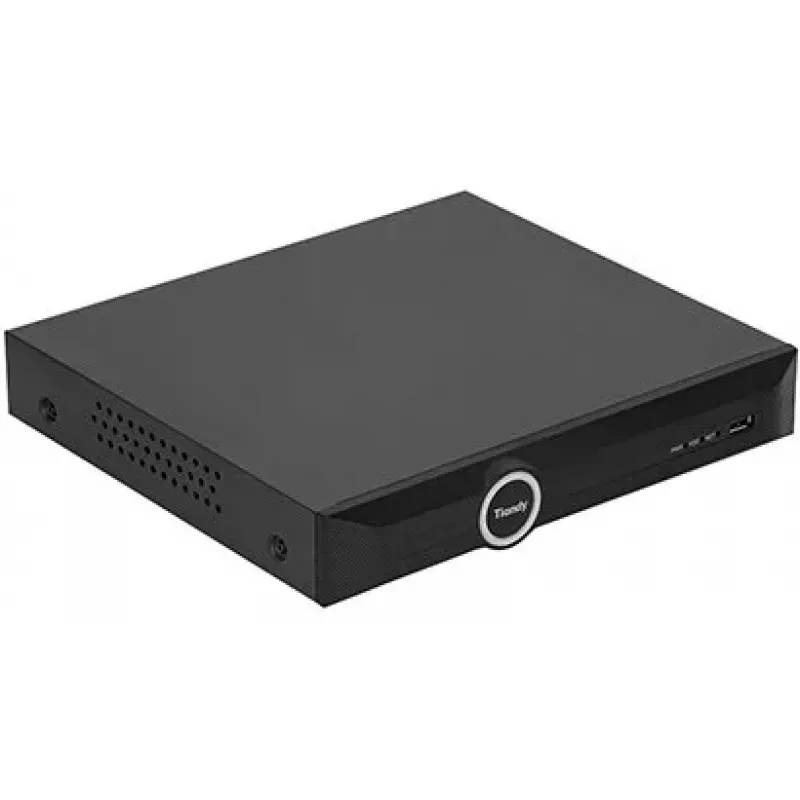

The TC-R3110 is a high-performance 10-channel IP recorder with 8 PoE Lite ports, designed for reliable video surveillance in small to medium-sized installations. It supports up to 8MP (4K) resolution per channel and features H.265+ compression for efficient storage.

Advantages

Supports up to 8MP (4K) recording per channel with H.265+ compression, reducing bandwidth and storage requirements. Built-in 8-port PoE switch (IEEE 802.3af/at) simplifies installation by powering cameras directly. Remote access via web browser, mobile app, or client software ensures flexible monitoring.

Suitable for

• Small to medium businesses
• Retail stores
• Office surveillance
• Home security systems

Key specifications

• 10 IP channels, 8 PoE ports (10/100 Mbps)
• Max recording resolution: 8MP (4K) per channel
• Video compression: H.265+/H.265/H.264+/H.264
• 1 SATA HDD bay (up to 8TB)
• 1x HDMI (4K), 1x VGA (1080p) output
• 1x RJ45 10/100/1000 Mbps uplink
• Audio: 1x RCA in, 1x RCA out
• Alarm: 4 in / 1 out
• 2x USB 2.0
• Power: DC 48V, consumption <10W (without HDD/PoE)
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use with compatible IP cameras and a high-quality HDD. Ensure proper ventilation and avoid exceeding PoE budget.
