BCS 64-kanaals IP NVR 4K U-NVR6408R-A-4K met 2x12TB HDD

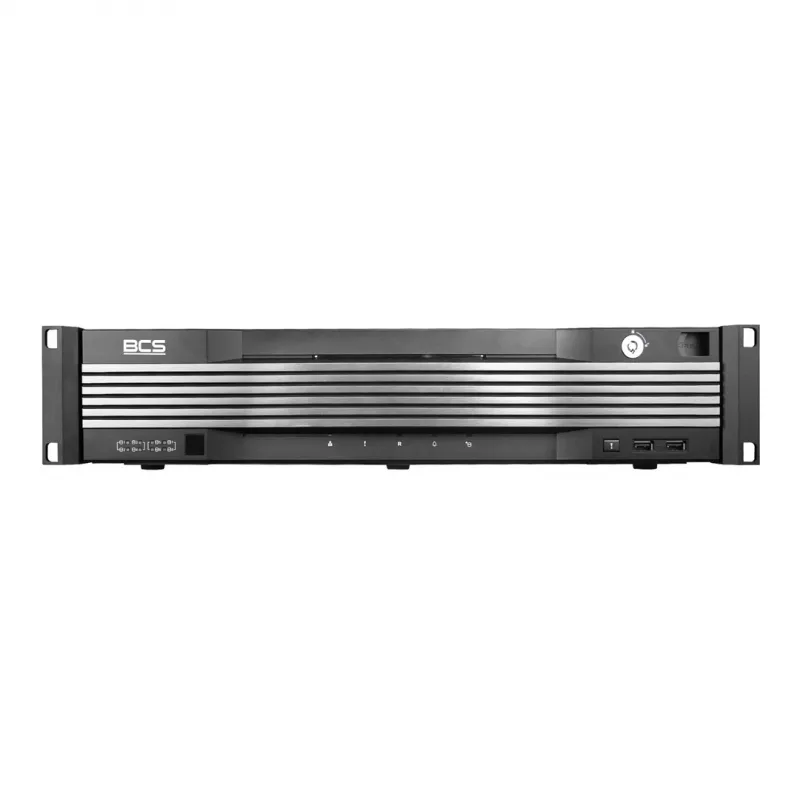

The BCS U-NVR6408R-A-4K is a high-performance 64-channel IP network video recorder designed for professional surveillance systems. With support for up to 12MP resolution recording and H.265+ compression, it delivers exceptional video quality while optimizing storage and bandwidth. This 2U rackmount NVR comes pre-installed with 2x12TB HDDs (24TB total) and features 8 SATA III bays for further expansion. Ideal for large-scale security installations, it offers robust RAID support, dual Gigabit Ethernet, and comprehensive alarm I/O.

Advantages

• 64-channel recording with up to 12MP resolution ensures detailed coverage.
• H.265+ compression reduces storage requirements without compromising quality.
• Pre-installed 24TB storage (2x12TB) with 8-bay expandability.
• RAID 0/1/5/6/10 support for data redundancy and performance.
• Dual HDMI outputs with 4K resolution on HDMI1 for high-definition monitoring.

Suitable for

• Large retail stores and shopping centers
• Corporate office buildings and campuses
• Warehouses and logistics centers
• Government and public facilities
• Educational institutions

Key specifications

• Video Input Channels: 64
• Max Recording Resolution: 12MP
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Incoming/Outgoing Bandwidth: 384 Mbps
• HDD Bays: 8 SATA III (up to 16TB per bay)
• Included HDD: 2 x 12TB (24TB total)
• RAID Support: RAID0, RAID1, RAID5, RAID6, RAID10
• Network Interface: 2x RJ-45 Gigabit Ethernet
• Video Outputs: 2x HDMI (HDMI1: 4K, HDMI2: 1080p), 1x VGA
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 16x In / 6x Out
• USB: 2x USB 2.0, 1x USB 3.0
• Power: AC 100-240V, 50/60Hz
• Form Factor: 2U Rackmount

Recommendations

For optimal performance, use with BCS IP cameras supporting H.265+ and configure RAID for data protection. Ensure proper ventilation in the rack cabinet.
