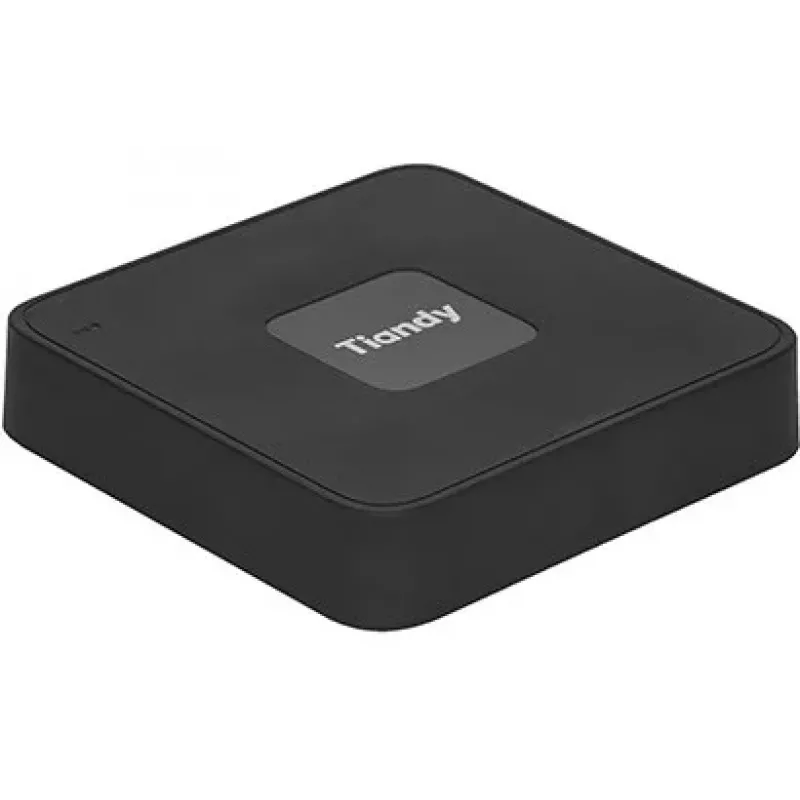

IP-recorder TC-R3105 5 kanalen

The TC-R3105 is a 5-channel IP recorder designed for small to medium surveillance systems. It supports up to 5MP resolution recording with H.265+ compression for efficient storage. This standalone NVR offers reliable performance with easy setup and remote access via mobile app.

Advantages

Supports 5 IP cameras simultaneously; H.265+ compression reduces bandwidth and storage requirements; ONVIF compliant for broad camera compatibility; compact design with low power consumption.

Suitable for

• Small offices
• Retail stores
• Home security
• Warehouse monitoring

Key specifications

• Channel Capacity: 5 IP Channels
• Max Recording Resolution: 5 Megapixels (5MP)
• Video Compression: H.265+/H.265/H.264+/H.264
• Decoding Capability: 1-ch@5MP (30fps) / 2-ch@4MP (30fps) / 4-ch@1080P (30fps)
• Video Output: 1x HDMI, 1x VGA
• Audio Input/Output: 1x RCA each
• Network Interface: 1x RJ45 10/100Mbps Ethernet
• USB Interface: 2x USB 2.0
• HDD Support: 1x SATA, up to 8TB
• Power Supply: DC 12V, consumption <6W (without HDD)
• Operating Temperature: -10°C to +55°C
• ONVIF Support: Profile S, G, T
• Mobile App: iOS, Android

Recommendations

For optimal performance, use with compatible ONVIF cameras and a high-quality HDD. Ensure proper ventilation and stable power supply.
