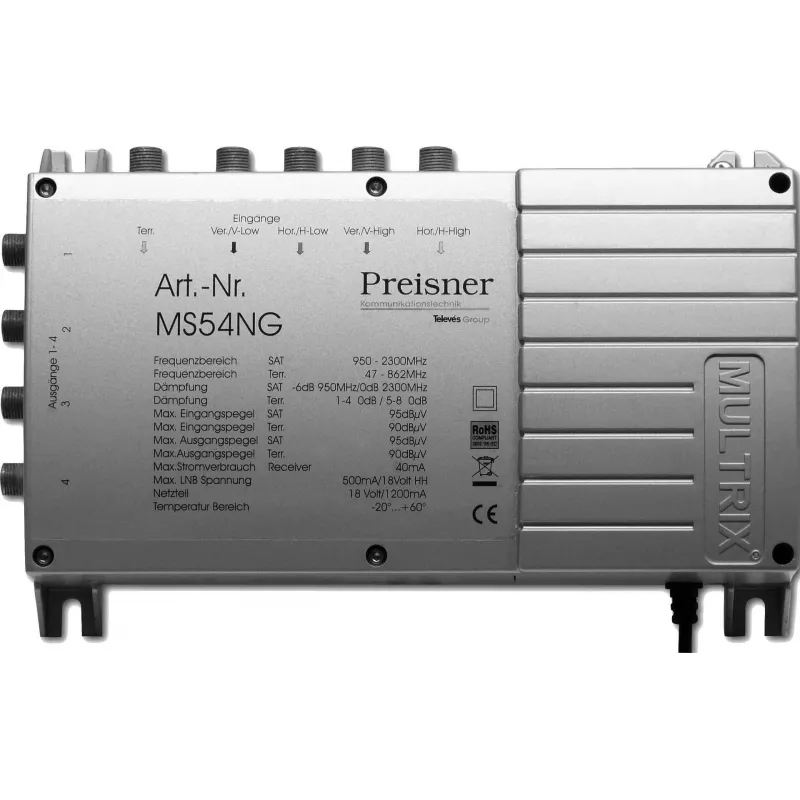

Kabelsplitter/combiner Televes MS54NG

The Televes MS54NG is a cable splitter/combiner engineered for distribution and combining tasks within the 950–2300 MHz frequency range. Its compact housing (204 x 57 x 130 mm) and grey finish allow installation in confined spaces and integration into existing cable systems. The unit is intended for use in RF distribution networks where signals in the specified band need to be split to multiple outputs or combined from several inputs while maintaining signal integrity.

Advantages

The Televes MS54NG provides consistent performance across the 950–2300 MHz band and a compact form factor that simplifies placement in cabinets or on mounting rails. Its robust construction supports long-term operation in standard indoor environments, and the grey enclosure offers neutral aesthetics that blend with most installations. The device is designed to minimize insertion loss and provide stable splitting/combining behavior for cable TV, satellite or similar RF signals within the supported band.

Suitable for

• Splitting satellite IF and other RF signals in the 950–2300 MHz range to multiple receivers
• Combining signals from multiple sources for distribution over a shared cable network
• Use in headends, distribution cabinets, or residential multiswitch installations
• Indoor installations where space is limited and a compact splitter/combiner is required

Key specifications

• Frequency range: 950–2300 MHz
• Dimensions: 204 x 57 x 130 mm (length x width x height)
• Finish: grey enclosure
• Function: splitter and combiner for RF signals
• Designed for indoor mounting in cable distribution systems

How to use

Install the Televes MS54NG in a dry indoor location with appropriate ventilation and secure mounting. Connect the input cable carrying the source RF signal to the designated input port and connect output ports to the receivers or downstream distribution cabling. When using the unit as a combiner, connect the source cables to the input ports as instructed by the system design. Ensure all F-type connectors are tightened to provide proper contact and grounding. Verify signal levels after installation using appropriate measurement equipment and adjust distribution or amplification as needed to maintain required signal quality.

Recommendations

Use the splitter/combiner within the specified 950–2300 MHz band and in conjunction with quality coaxial cables and properly grounded installations. Avoid outdoor exposure and direct moisture; install within an equipment cabinet or protected environment. If signal attenuation becomes excessive due to splitting, consider adding appropriate amplification or rebalancing the distribution to meet receiver input level requirements.
