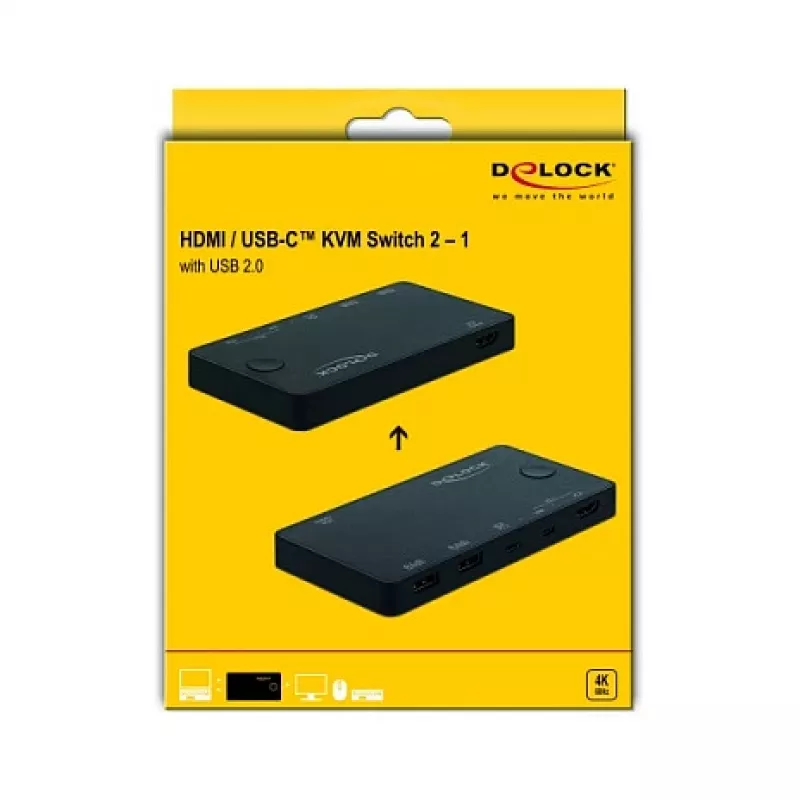

KVM-switch DeLOCK 11477 zwart

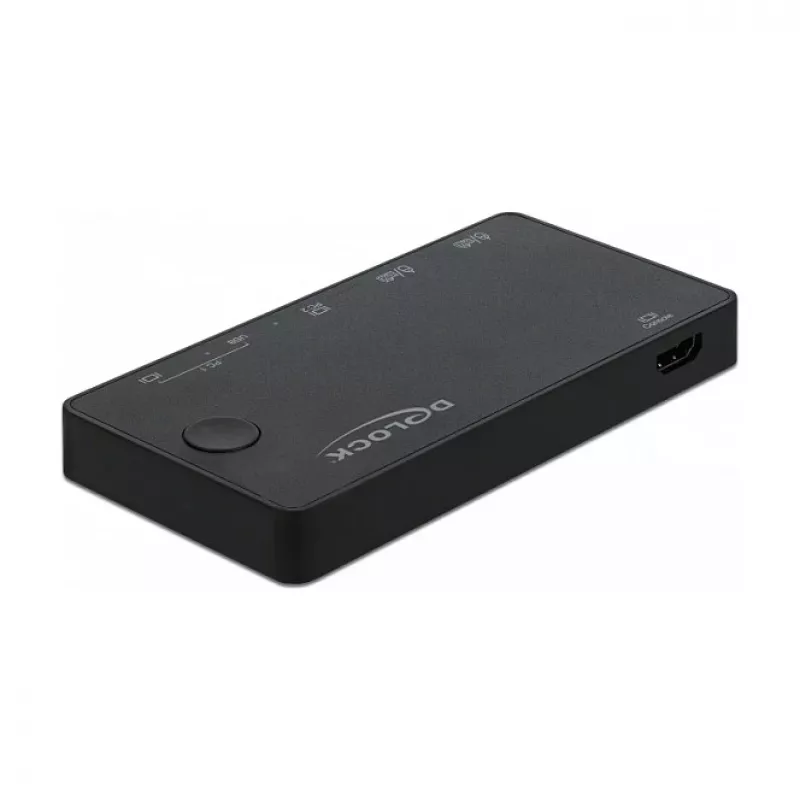

The DeLOCK 11477 KVM switch enables control of two computers — one with an HDMI output and one with a USB‑C™ port supporting DP Alt Mode — using a single HDMI monitor, keyboard and mouse. It supports up to 3840 x 2160 at 60 Hz and includes two USB 2.0 ports for connecting a keyboard, mouse or USB storage. The unit is compact (72 × 140 × 16.8 mm) and finished in black plastic for easy integration into a workspace.

Advantages

The KVM switch provides seamless switching between two systems via a front button and preserves full 4K@60Hz video output for compatible devices. Two USB 2.0 ports allow connection of standard USB keyboards, mice or a storage device. The compact plastic housing and straightforward connections simplify installation and reduce desktop clutter.

Suitable for (tasks / use cases)

• Switching control between a desktop PC with HDMI and a laptop with USB‑C DP Alt Mode
• Single-monitor workstations where keyboard and mouse need to be shared
• Home offices, small offices and meeting rooms requiring 4K video switching

Key specifications

• Model: DeLOCK 11477
• Supported resolution: up to 3840 x 2160 @ 60 Hz
• Video interface: HDMI
• Secondary computer interface: USB‑C (DP Alt Mode)
• USB ports: 2 × USB 2.0 (keyboard/mouse/USB storage)
• Keyboard/Mouse port type: USB
• Colour: Black
• Housing material: Plastic
• Dimensions (W × D × H): 72 × 140 × 16.8 mm

How to use

Connect the HDMI output of the first computer to the KVM’s HDMI input and connect the second computer to the KVM using a USB‑C cable that supports DP Alt Mode. Attach the HDMI monitor to the KVM’s HDMI output and plug keyboard and mouse into the USB 2.0 ports. Press the front button on the unit to switch control and video between the two connected computers.

Recommendations

For optimal performance ensure the USB‑C cable supports DP Alt Mode and use HDMI cables rated for 4K@60Hz. When using USB storage with the KVM, safely eject the device from the active computer before switching to avoid data loss.
