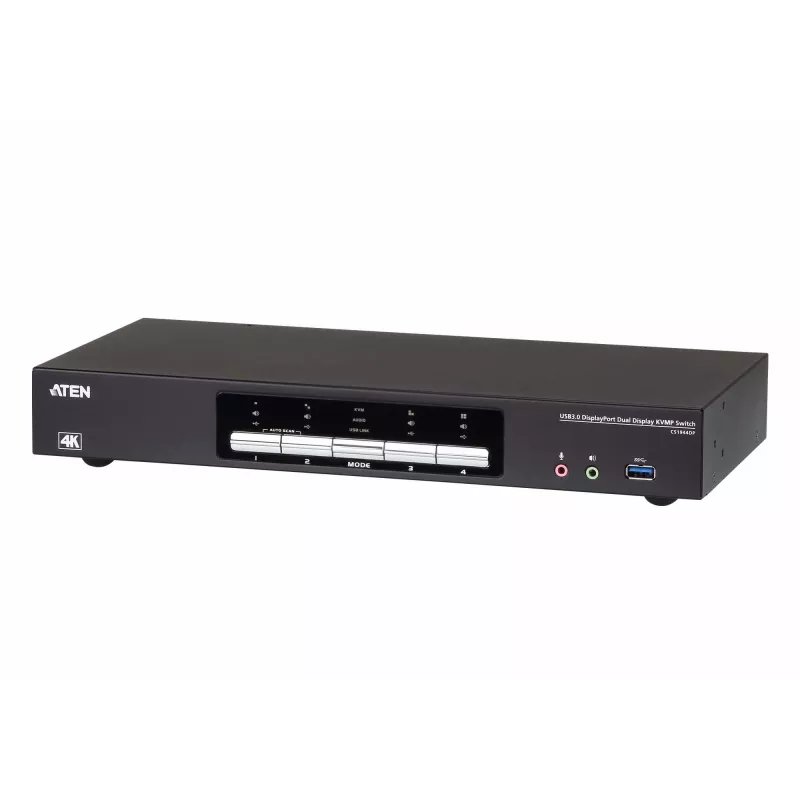

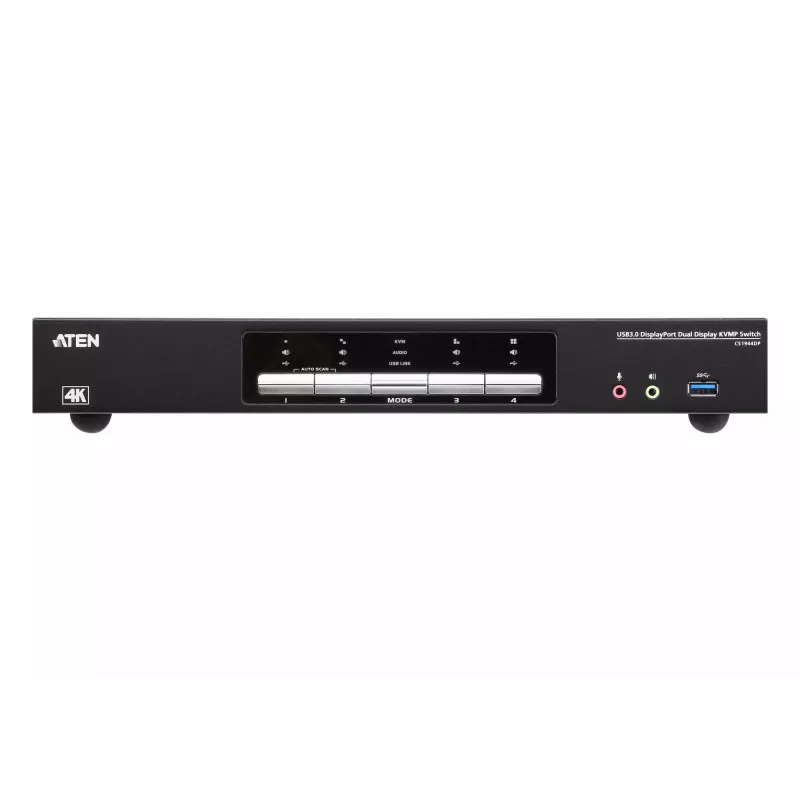

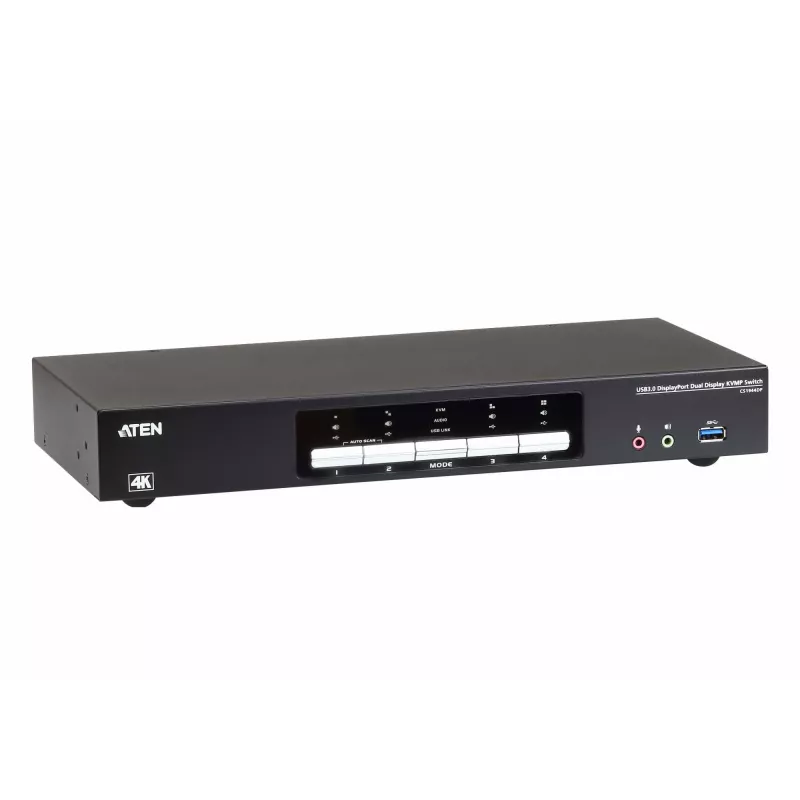

KVMP-switch ATEN 4P USB3.0 DisplayPORT Dual View

The ATEN CS1944DP desktop KVMP switch provides centralized control of up to four computers from a single workspace using one USB keyboard, one USB mouse and two DisplayPort monitors. Designed for multimedia workstations and professional environments, the device supports 4K Ultra HD (4096 x 2160 at 60 Hz) dual‑display output, is housed in a durable metal enclosure and is powered by a 12 V DC adapter.

Advantages

The KVMP switch consolidates peripherals and video outputs to reduce desktop clutter while enabling instant switching between connected systems. It supports USB 3.0 data transfer, dual DisplayPort video for high‑resolution monitors, and audio pass‑through. The unit controls four computers, includes all necessary connection cables and a power adapter, and meets RoHS requirements.

Suitable for

• Multimedia workstations that require dual DisplayPort monitors
• Office or control room setups managing multiple computers from one desk
• Environments needing 4K@60Hz display output for detailed visuals

Key specifications

• Model: ATEN CS1944DP
• Controlled computers: 4
• Video interface: DisplayPort 1.2, dual display, up to 4096 x 2160 @ 60 Hz
• USB: USB 3.0 for keyboard/mouse and data
• Power: 12 V DC adapter, power consumption 6.125 W
• Housing: metal; colour: black; weight: 3.46 kg
• Compliance: RoHS

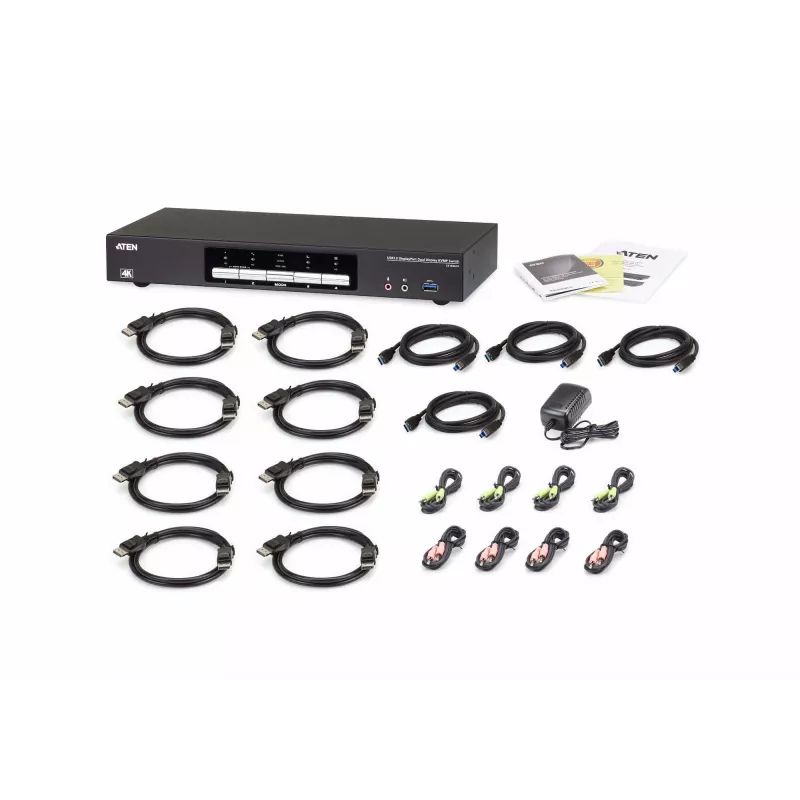

• Included accessories: DisplayPort cables, USB 3.0 cables, audio cables, power adapter, user instructions

How to use

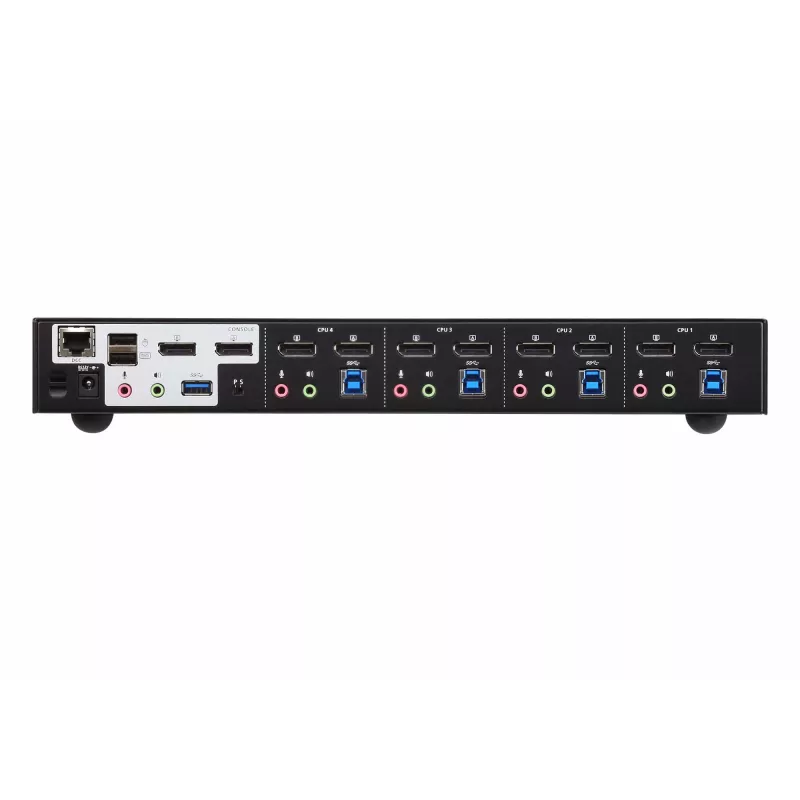

Connect each computer to the switch using the supplied DisplayPort and USB 3.0 cables; connect the two DisplayPort outputs from the switch to your dual monitors. Plug the USB keyboard and mouse into the front console ports, attach the power adapter and switch on the unit. Use the switch controls to toggle active computers and the attached displays. Audio connections can be made using the supplied audio cables if sound switching is required.

Recommendations

For reliable 4K@60Hz performance, use high‑quality DisplayPort 1.2 cables and ensure connected graphics cards and monitors support the required resolution and refresh rate. Place the unit on a stable surface with adequate ventilation.
