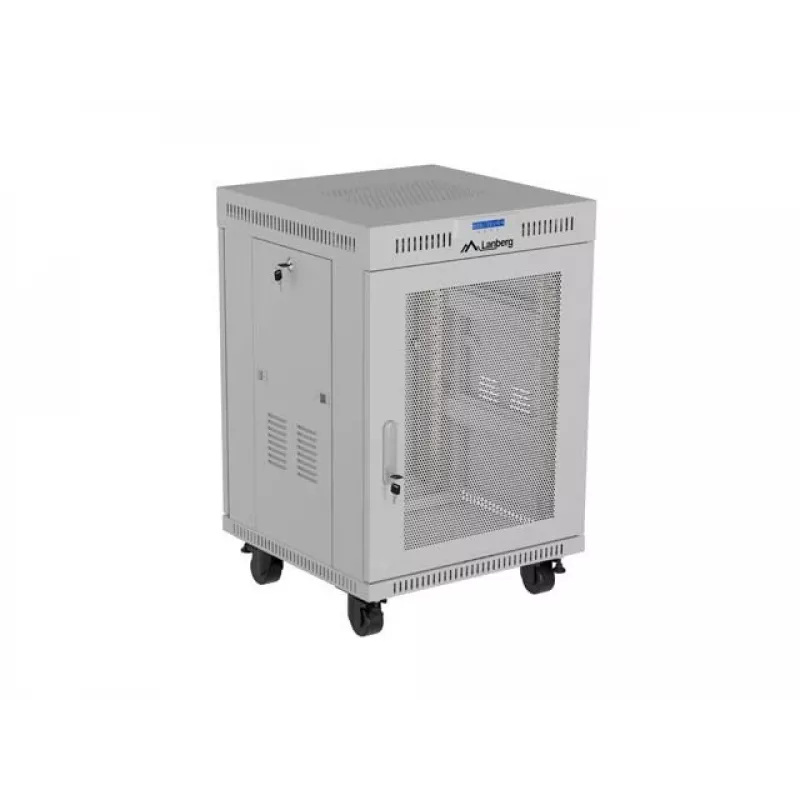

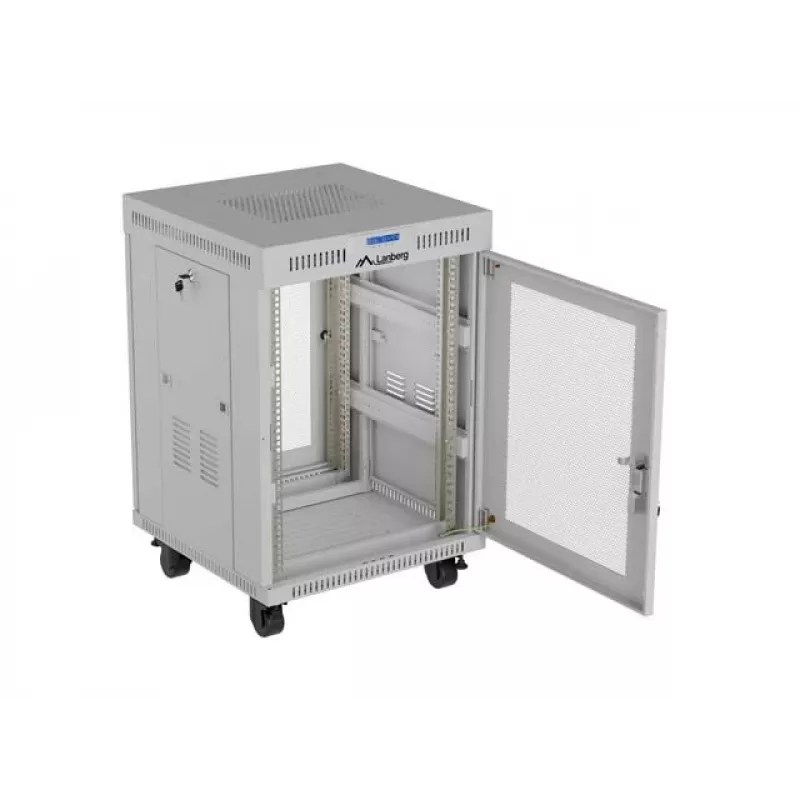

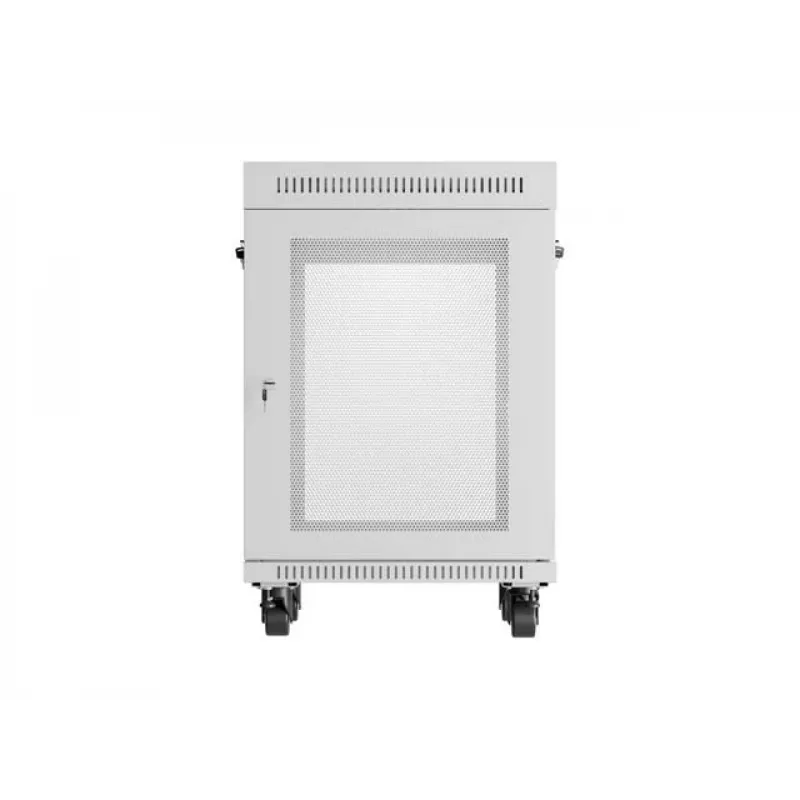

Lanberg FF01-6615-23SL vrijstaande 19 inch rackkast 15U 600x600 grijs geperforeerde deur LCD flat pack

Managing network equipment in small server rooms or offices often means dealing with messy cables, overheating devices, and insecure access. The Lanberg FF01-6615-23SL 19-inch freestanding rack cabinet solves these issues by providing a secure, well-ventilated enclosure with an integrated LCD for environmental monitoring.

Who is it for

This 15U cabinet is ideal for IT professionals, system integrators, and small businesses that need to organize servers, switches, patch panels, and other 19-inch equipment in a compact footprint. Its 600x600 mm dimensions fit easily in tight spaces while offering ample mounting depth.

Main features

• 15U height with adjustable front and rear mounting rails for flexible equipment installation.

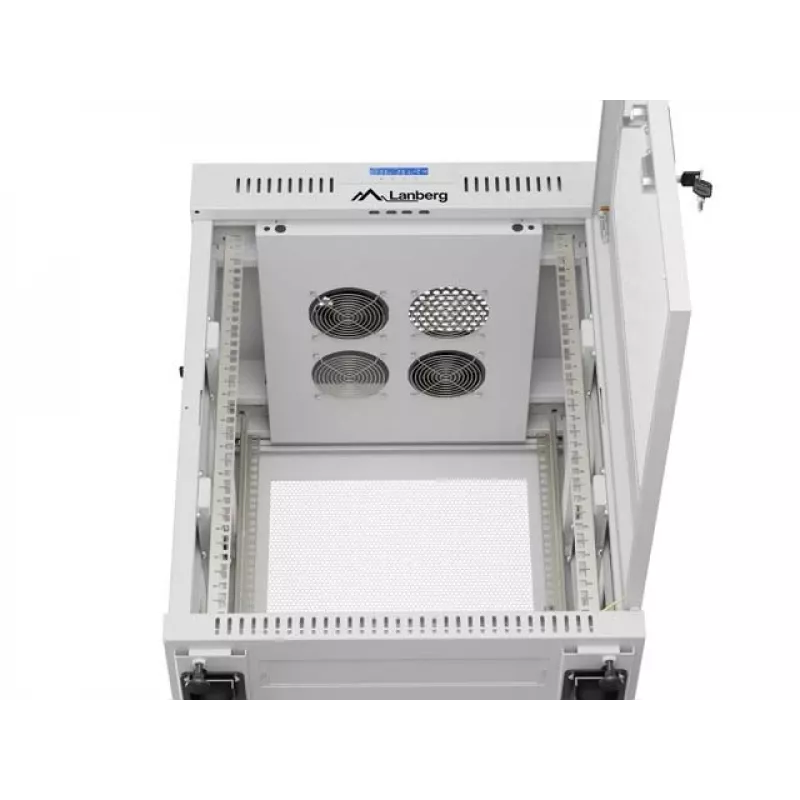

• Perforated front door (65% perforation) ensures excellent passive airflow; top panel supports up to two 120mm fans (not included).
• Integrated LCD displays temperature, humidity, time, and fan status for proactive monitoring.
• Lockable front door, rear door, and side panels with two keys per lock for enhanced security.
• Removable side panels and top/bottom cable entries with brush panels simplify installation and cable management.
• Sturdy cold-rolled steel construction with a static load capacity of up to 800 kg.
• Flat-pack packaging reduces shipping costs and storage space; assembly required.

Specifications

• Rack type: Freestanding
• Rack standard: 19 inch
• Rack units: 15U
• External dimensions (W x D x H): 600 x 600 x 780 mm
• Colour: Grey (RAL 7044)
• Material: High-grade cold-rolled steel
• Front door: Perforated metal, lockable
• Rear door: Solid steel, lockable
• Side panels: Removable, lockable
• Static load capacity: 800 kg
• Protection rating: IP20
• Cooling: Passive ventilation, provision for 2x 120mm fans (not included)
• Display: LCD (temperature, humidity, time, fan status)
• Cable management: Top and bottom entries with brush panels
• Mounting rails: Adjustable, front and rear
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7

Tips

For optimal cooling, install additional 120mm fans in the top panel if you plan to mount high-density equipment. Use the LCD to monitor temperature and humidity, and adjust ventilation or add active cooling as needed. The flat-pack design requires assembly; follow the included manual and allow sufficient time for setup.
