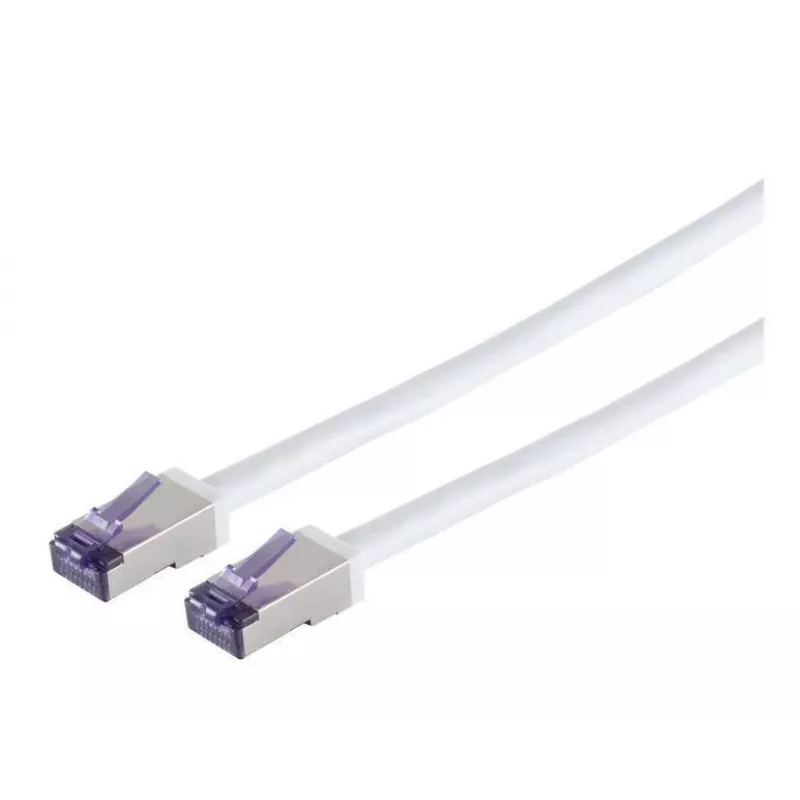

Lanview LVN-CAT6A-FLEX-50CMWH netwerkkabel wit 0,5 m S/FTP (S-STP)

The Lanview LVN-CAT6A-FLEX-50CMWH is a high-flexibility Cat6a patch cable designed for demanding network environments. It supports data rates up to 10000 Mbit/s and bandwidth up to 500 MHz, features S/FTP shielding to reduce interference and crosstalk, and is fitted with 50 µ" gold-plated RJ45 connectors. The cable is 0.5 m long and comes in white for a discreet installation.

Advantages

S/FTP shielding provides improved protection against electromagnetic interference and crosstalk. High-flex design suits frequent bending and tight routing. Gold-plated 50 µ" RJ45 connectors ensure stable contact and low contact resistance for reliable 10G performance.

Suitable for

• Short patch connections in server racks and network cabinets
• High-speed 10G Ethernet links between switches and servers
• Workstations or devices requiring reliable shielded connections
• Environments with potential electromagnetic interference

Key specifications

• Cable type: Straight-through patch cable
• Length: 0.5 m
• Standard: Cat6a
• Bandwidth: up to 500 MHz
• Max data rate: up to 10000 Mbit/s (10G)
• Shielding: S/FTP ( overall shield + foil on pairs )
• Connectors: RJ-45 — gold-plated, 50 µ"
• Color: White
• Weight: 0.04 kg

How to use

Connect one RJ-45 end to a network switch or patch panel and the other end to the target device (server, workstation, router). Ensure connectors are fully inserted until they click. Route the cable without sharp bends or kinks and avoid running it parallel and directly alongside strong power lines to maintain signal integrity.

Recommendations

For optimal 10G performance, use this Cat6a S/FTP cable for short links (such as within racks or between adjacent equipment) and keep cable runs within recommended bend radius. Verify shield termination at both ends when installing in environments with high electromagnetic interference.
