Lenovo ThinkPad Universal Thunderbolt 4 bedraad zwart bedrade connectiviteit 135W

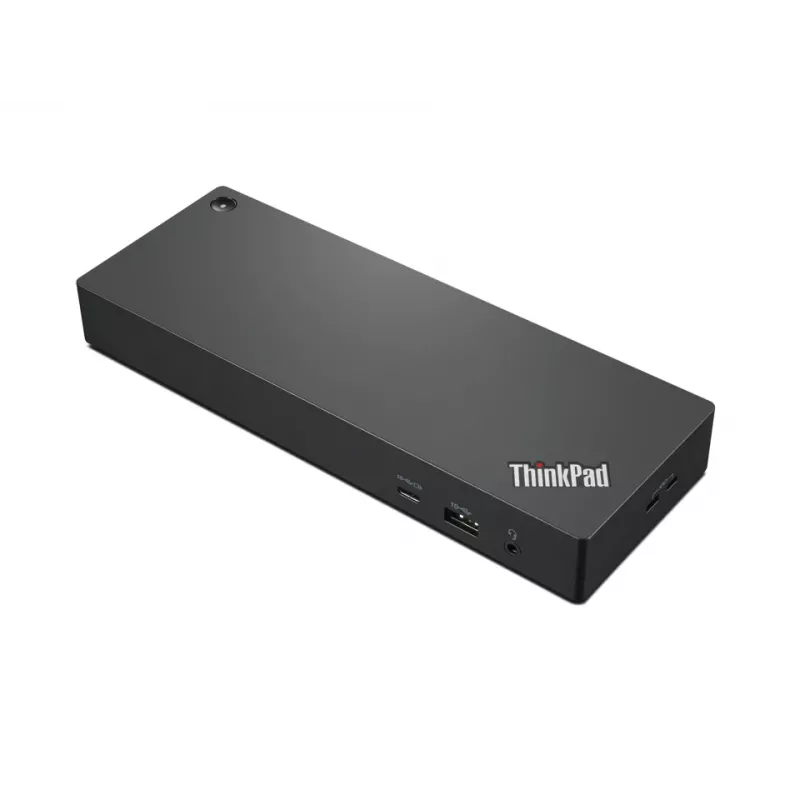

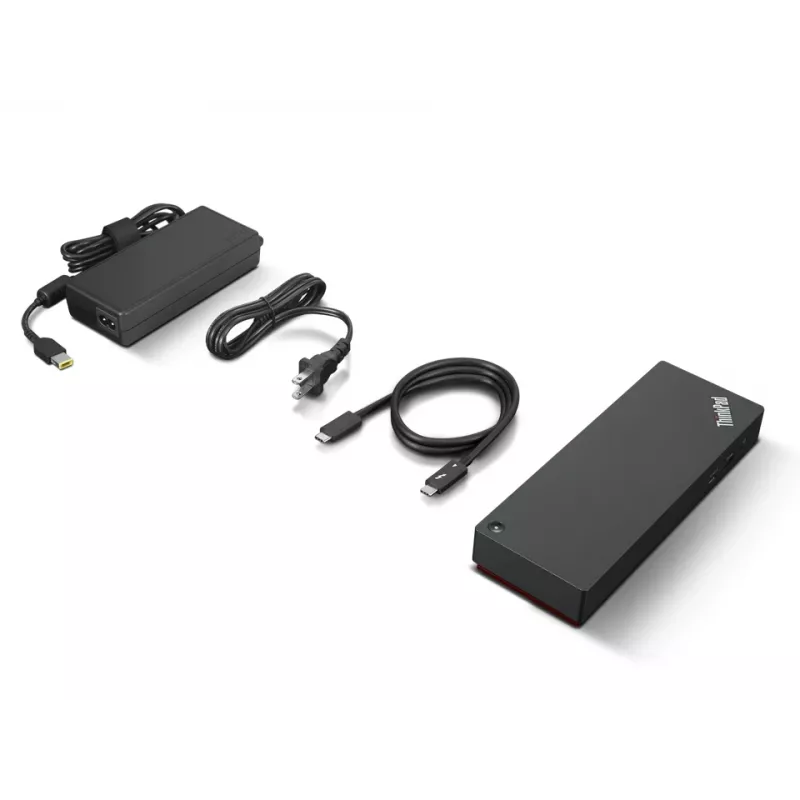

The Lenovo ThinkPad Universal Thunderbolt 4 Dock is a wired docking station designed for Windows-based mixed-PC environments. It provides a Thunderbolt 4 host interface, a 135W power adapter, 3.5 mm audio connection, gigabit Ethernet, multiple USB Type-A ports and compact dimensions for convenient desktop placement. The dock supports up to 100W Power Delivery to a connected laptop and enables high-speed data transfers up to 40 Gbps while offering advanced video connectivity options.

Advantages

This Thunderbolt 4 dock supports single 8K@30Hz or up to four 4K@60Hz displays (host and system dependent), silent firmware upgrades, and Intel vPro/AMT pass-through support. It delivers consistent video, data and power connectivity in mixed PC environments, enables fast 40 Gbps data transfer rates, and includes a reliable 135W power supply and multiple USB 3.2 Gen 1 Type-A ports for peripheral expansion. The compact black design and lightweight construction make it easy to position on a desk.

Suitable for

• Office workstations requiring multiple displays and wired peripherals
• Hybrid work setups with mixed Windows PCs and laptops
• Users needing high-speed data transfer and stable Ethernet connectivity
• Creative workflows that benefit from high-resolution external monitors

Key specifications

• Brand: Lenovo; Model: ThinkPad Universal Thunderbolt 4 Dock; MPN: 40B00135DK; EAN: 5704174832485
• Host interface: Thunderbolt 4 (wired)
• Power: 135W power supply; supports up to 100W Power Delivery to host
• Display support: Single 8K@30Hz or up to 4 × 4K@60Hz (depending on host and configuration)
• Data transfer: Up to 40 Gbps (depending on host and peripherals)
• Audio: 3.5 mm headphone/microphone connector
• USB: 4 × USB 3.2 Gen 1 (Type-A)
• Network: 1 × Gigabit Ethernet (RJ-45)
• Connectivity: Wired
• Colour and weight: Black; 0.45 kg

How to use

Connect the dock to a compatible Thunderbolt 4 host port on your laptop or PC using the provided cable. Attach external displays to the dock’s video outputs according to the host’s supported configurations to enable single 8K or multiple 4K outputs. Plug peripherals into the USB Type-A ports, connect a headset to the 3.5 mm jack and attach an Ethernet cable for wired network access. Ensure the 135W power adapter is connected to supply up to 100W PD to the host and to power the dock and connected devices.

Recommendations

For full multi‑display and maximum data throughput, use a Thunderbolt 4‑compatible host and high‑quality display cables; firmware updates should be applied when available to ensure optimal compatibility and silent operation.
