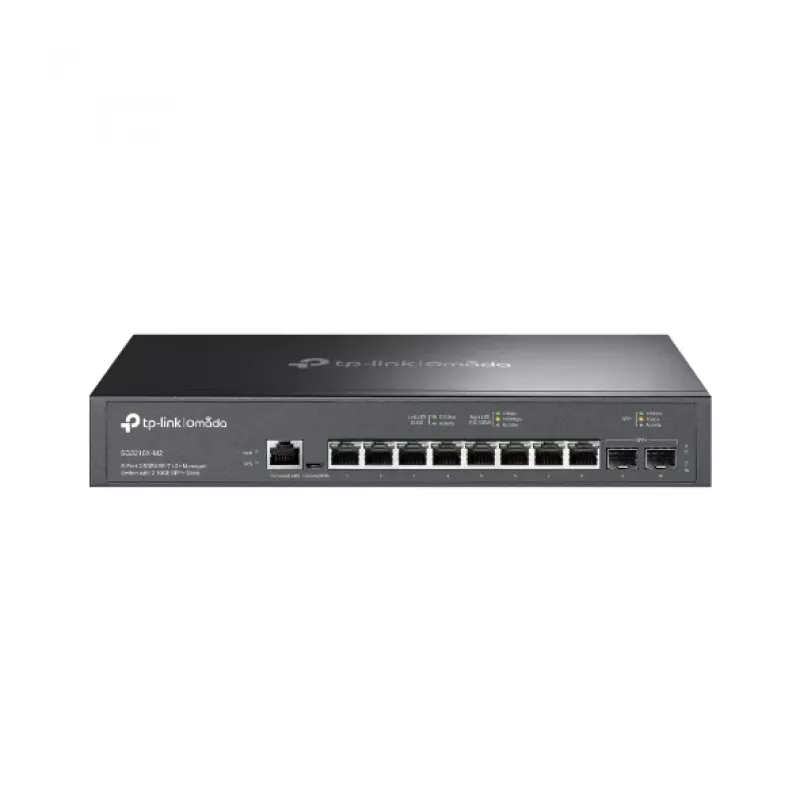

Managed switch TP-Link Omada 8-poorts 2.5G L2+ 80 Gbit/s

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2

10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network

Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

How to use

Install the switch in a rack or on a flat surface and connect access devices to the 2.5G RJ-45 ports. Use the 10G SFP+ slots for uplinks to servers or core switches with compatible SFP+ modules. Configure network settings through the Omada cloud controller or local management interface, set VLANs, QoS rules and security policies, and enable 802.1X or RADIUS authentication where required. For multicast services, enable IGMP snooping and apply IGMP filtering or throttling per port as needed.

Recommendations

For optimal performance, match cable quality and SFP+ module specifications to port speeds, enable link aggregation for high-throughput links, and use Omada cloud management to monitor traffic and push consistent configurations across multiple devices.
