METZ CONNECT OpDAT fix las-patchpaneel 12xLC-D OM3, 1U, 24 vezels, lichtgrijs 1504557712-F

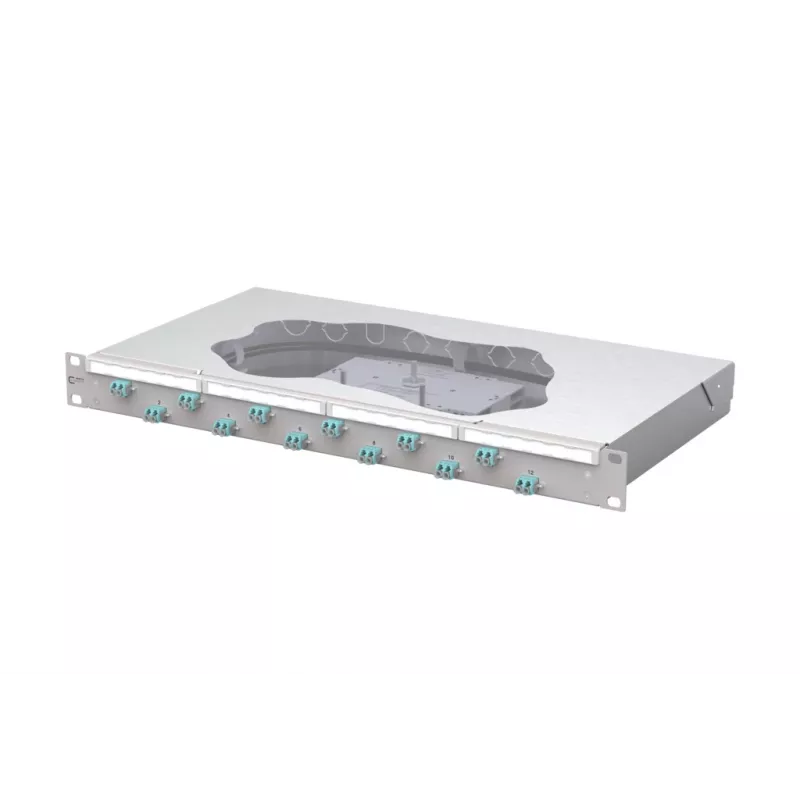

In a busy data center, technicians need a reliable fiber optic distribution point that simplifies splicing and offers quick access for moves, adds, and changes. The METZ CONNECT OpDAT fix splice patch panel provides exactly that: a 19-inch rack-mountable 1U unit with 12 LC-Duplex ports pre-loaded with OM3 multimode adapters. It is designed for splicing up to 24 fibers (12 duplex) using pigtails, making it ideal for structured cabling in enterprise networks, data centers, and FTTx applications.

Key specifications

• 12x LC-Duplex ports, OM3 multimode, 24 fibers total
• 19-inch rack mount, 1U height, light grey (RAL 7035) powder-coated steel housing
• Splice termination: includes splice cassette(s), splice holders, and strain relief
• Zirconia ceramic adapter sleeves for high precision and durability
• Operating temperature: -10 °C to +60 °C; storage: -25 °C to +70 °C
• IP20 protection rating, suitable for indoor use
• Rear cable entry options for flexible installation

Why choose it

This panel combines robust construction with practical fiber management. The integrated splice cassette keeps fibers organized and protected, reducing installation time and minimizing signal loss. The LC-Duplex format is widely used in high-density environments, and OM3 supports 10G Ethernet up to 300 meters, making it future-ready for many network upgrades.

Ideal use cases

• Data center fiber distribution and cross-connects
• Enterprise LAN backbone connections
• FTTx (Fiber to the x) termination points
• Telecommunications rooms and equipment racks

Good to know

The panel is part of the METZ CONNECT OpDAT fix series, known for compatibility with standard 19-inch cabinets. It is delivered as a complete unit, ready for splicing pigtails (not included). The light grey finish blends seamlessly with most rack interiors, and the steel construction ensures long-term stability.
