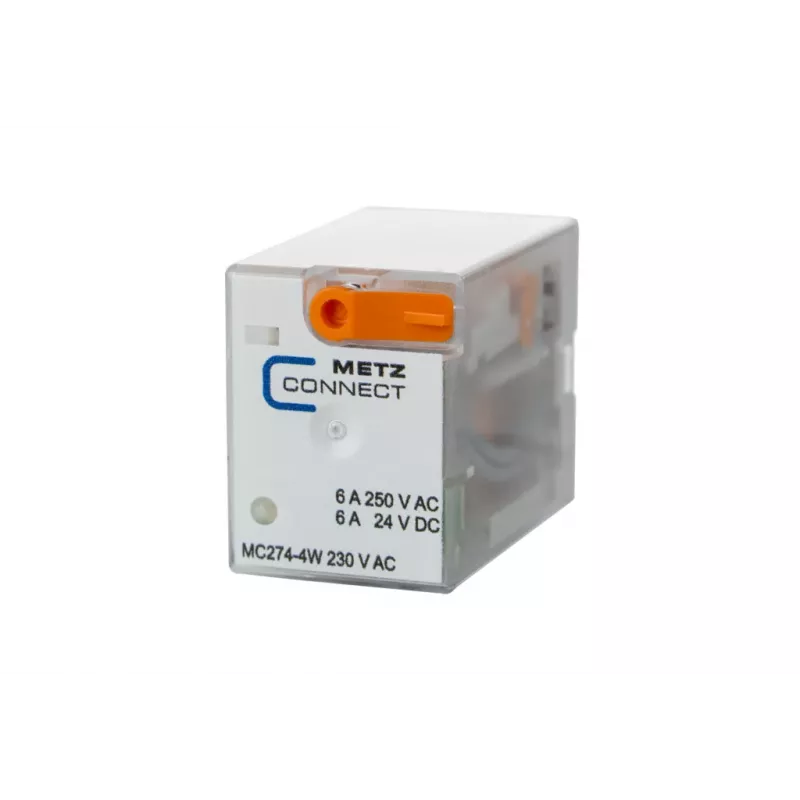

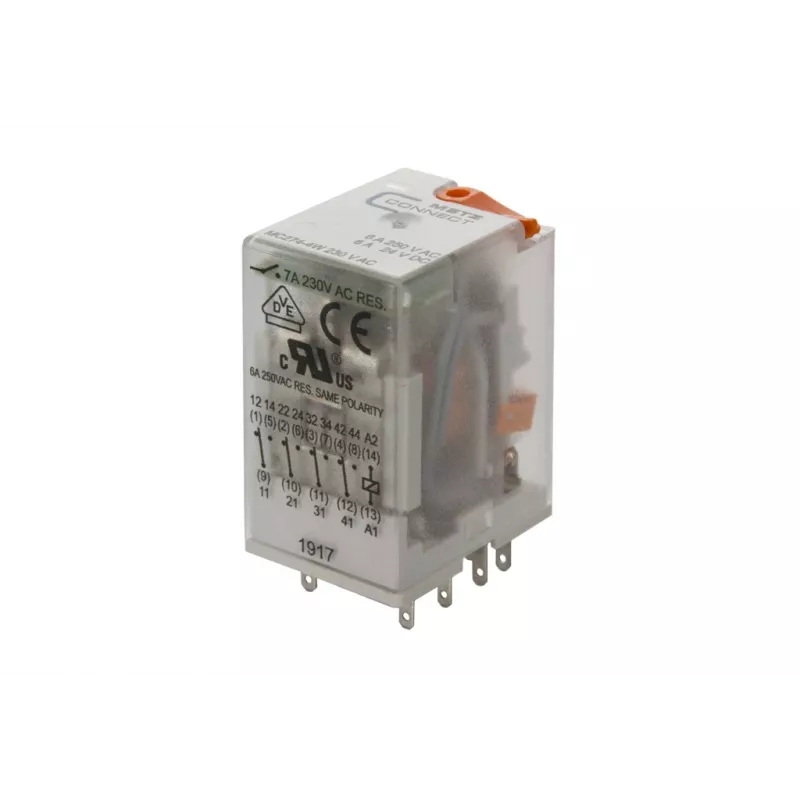

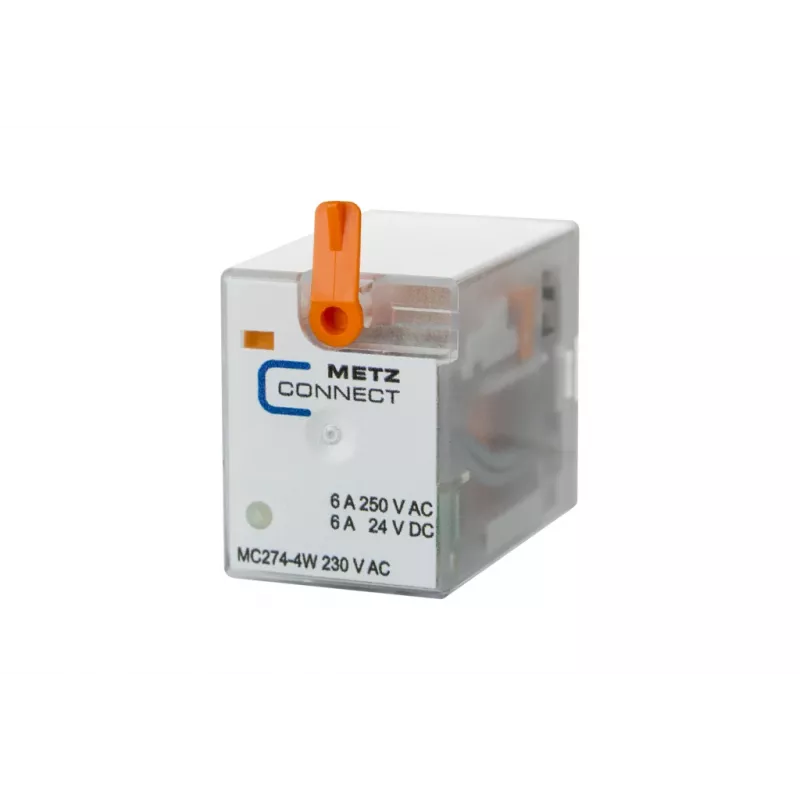

METZ CONNECT Relais 274 230VAC 4PDT LED industriesteekrelais 110017051407

The METZ CONNECT Relay 274 is a high-quality industrial plug-in relay designed for reliable switching in demanding applications. With a 230 VAC coil voltage and 4 changeover contacts (4PDT), this relay offers robust performance for automation and control systems. The integrated LED indicator provides clear visual status, simplifying troubleshooting and maintenance.

Advantages

This relay features a compact plug-in design for easy installation and replacement. The silver nickel (AgNi) contacts ensure long electrical life and reliable switching up to 6 A. The flux-proof protection (RT I) makes it suitable for use in harsh environments. VDE, UL, and CSA approvals guarantee compliance with international standards.

Suitable for

• Industrial control panels
• Building automation systems
• PLC output interfaces
• Machine control circuits

Key specifications

• Coil voltage: 230 VAC
• Contact configuration: 4 changeover (4PDT)
• Max. switching current: 6 A
• Max. switching voltage: 250 VAC / 30 VDC
• Contact material: AgNi
• LED indicator: Yes
• Mounting: Plug-in (for relay sockets)
• Operating temperature: -40°C to +70°C
• Dielectric strength (coil/contact): 2.5 kV AC
• Mechanical life: 20 x 10^6 operations
• Electrical life: 100 x 10^3 operations
• Protection degree: RT I (flux proof)
• Coil power consumption: 1.2 VA

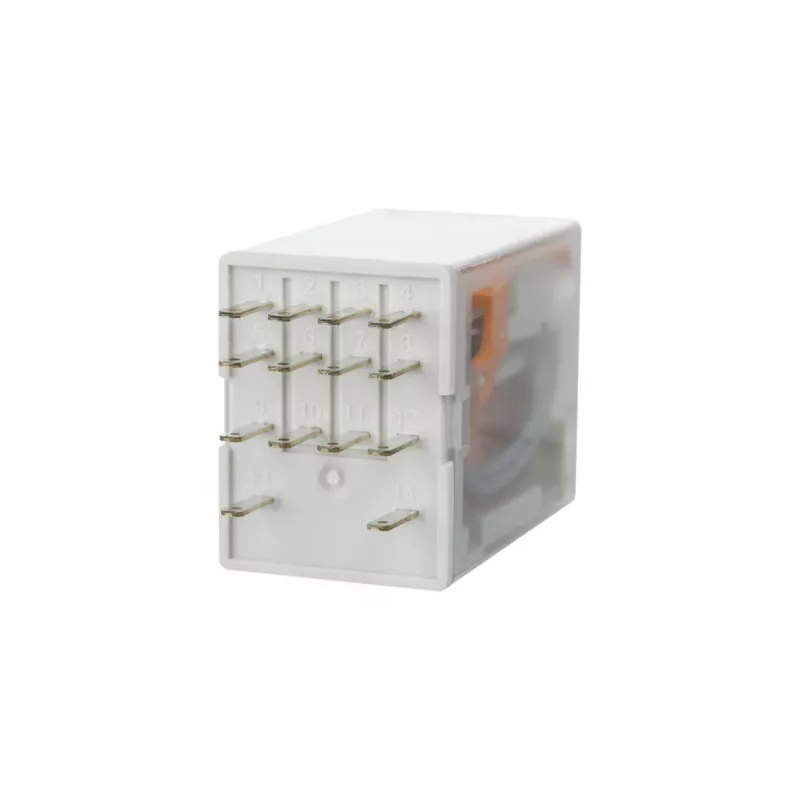

• Number of pins: 14
• Approvals: VDE, UL, CSA

Recommendations

For optimal performance, use with a compatible METZ CONNECT relay socket. Ensure the coil voltage matches your control circuit. This relay is ideal for switching loads within its rated specifications.
