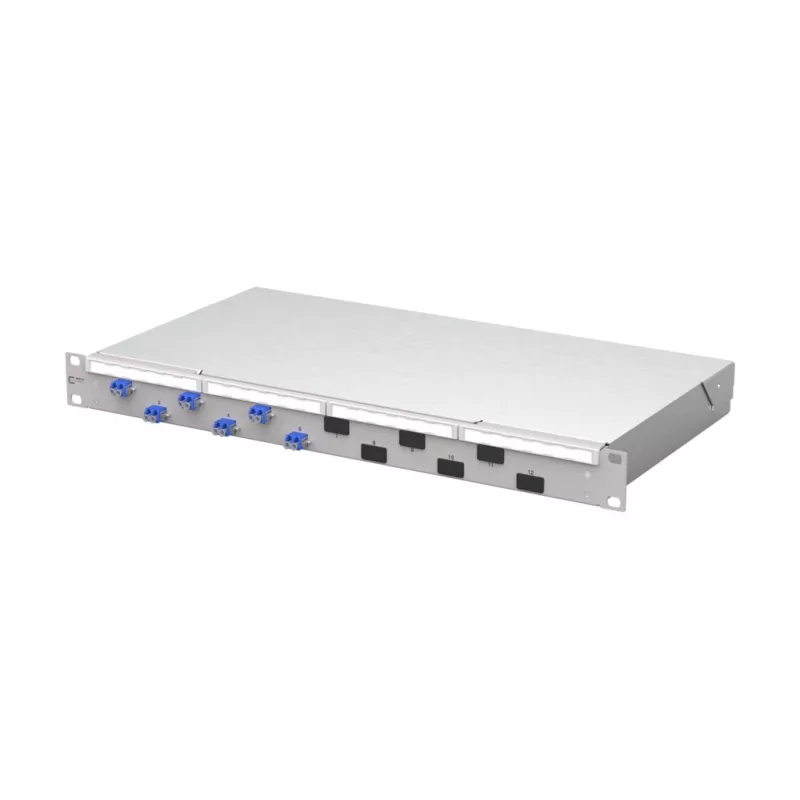

METZ CONNECT VIK 6xLC-Duplex OS2 singlemode glasvezelmodule, 12 vezels, PC-polijst, lichtgrijs 1504507406-F

Featuring six LC-Duplex ports and OS2 singlemode fiber, this METZ CONNECT VIK module delivers a typical return loss above 50 dB for high-performance optical links.

Overview

The METZ CONNECT VIK 6xLC-D OS2 module (model 1504507406-F) is a pre-assembled fiber optic module designed for data centers, LAN, FTTx, and telecommunication applications. It provides six LC-Duplex front ports, accommodating 12 singlemode fibers (OS2, ITU-T G.652.D / G.657.A1). Each port is factory-terminated with color-coded pigtails (2 m length, 0.9 mm diameter) and PC-polished connectors, ensuring consistent optical performance.

What stands out

• Six LC-Duplex ports for high-density fiber connectivity.
• OS2 singlemode fiber supports long-distance, high-bandwidth transmission.
• Pre-assembled pigtails reduce installation time and ensure quality.
• Low insertion loss (< 0.3 dB typical) and high return loss (> 50 dB typical).
• Robust sheet steel housing in light grey (RAL 7035) for durability.
• Wide operating temperature range: -10 °C to +60 °C.

Technical details

• Product type: Fiber optic module, VIK series.
• Connector type (front): LC-Duplex.
• Number of front ports: 6.
• Fiber type: Singlemode OS2 (ITU-T G.652.D / G.657.A1).
• Number of fibers: 12 (6x Duplex).
• Pigtail length: 2 m, diameter: 0.9 mm.
• Polishing type: PC (Physical Contact).
• Insertion loss (typical): < 0.3 dB.
• Return loss (typical): > 50 dB.
• Housing material: Sheet steel, color light grey (RAL 7035).
• Operating temperature: -10 °C to +60 °C; storage: -25 °C to +70 °C.
• Compliance: RoHS, REACH.

Our verdict

A reliable, high-density fiber optic module for professional network installations, offering excellent optical performance and easy integration into METZ CONNECT VIK enclosures.
