Netwerkkabel Solarix SXKD-5E-FTP-LSOH RJ45 CAT5E 305m zwart

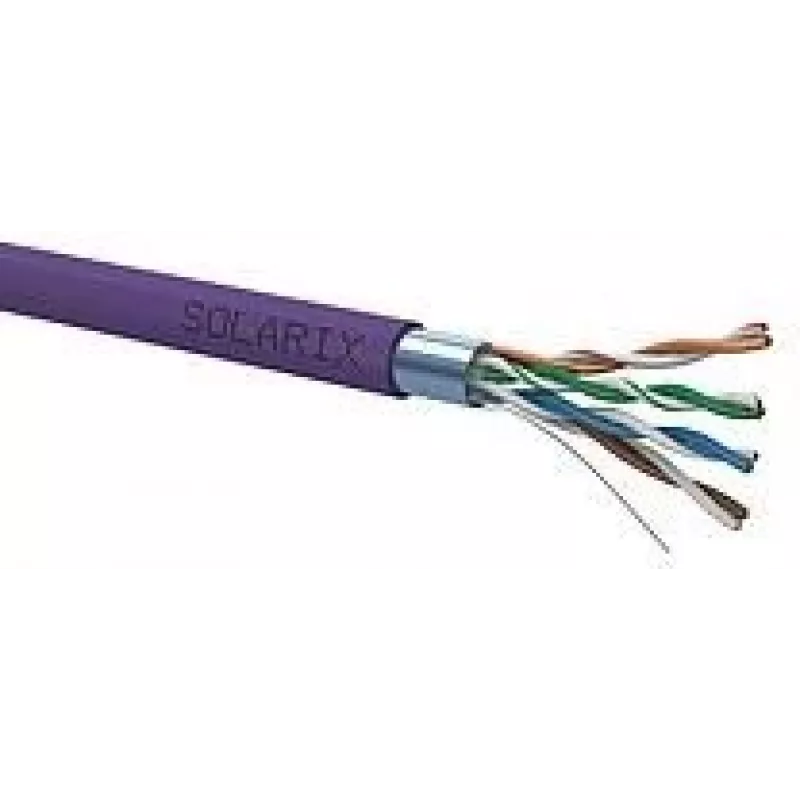

Network Cable Solarix SXKD-5E-FTP-LSOH RJ45 CAT5E 305m is a category CAT5E shielded twisted-pair cable designed for structured cabling and general Ethernet use. It supports up to 1000Base-T operation with a bandwidth of 100 MHz and uses 24 AWG copper conductors with polyethylene insulation. The cable features an overall foil shield around all four pairs and an LSOH (low smoke, zero halogen) jacket; nominal outer diameter is approximately 6.2 mm and length per reel is 305 m.

Advantages

The Solarix SXKD-5E-FTP-LSOH provides gigabit-capable performance for typical LAN environments while offering additional protection from external electromagnetic interference due to the foil shielding. The LSOH outer jacket reduces smoke and halogen emission in case of fire, making it suitable for indoor installations where low-toxicity materials are required. Physical parameters such as 24 AWG copper conductors, 1.0 mm insulation, and a compact 6.2 mm diameter support reliable installation and consistent signal transmission.

Suitable for

• Office and commercial LAN installations requiring CAT5E/1000Base-T performance
• Indoor cabling where LSOH properties are preferred for safety
• Structured cabling, patch panels and RJ45 terminations

Key specifications

• Model: SXKD-5E-FTP-LSOH
• Category: CAT5E
• Length: 305 m (reel)
• Shielding: overall foil around 4 pairs (FTP)
• Maximum supported protocol: 1000Base-T
• Bandwidth: 100 MHz
• Conductor: copper, 0.505 mm (AWG 24)
• Insulation: polyethylene, 1.0 mm
• Jacket: LSOH (low smoke, zero halogen)
• Color: black (product title) / original source color: purple
• Outer diameter: 6.2 mm
• Weight: 39 kg/km
• NVP: 68%
• Propagation delay: 535 ns/100 m
• Delay skew: 20 ns/100 m
• Storage temperature: -20°C to 70°C
• Operating temperature: -20°C to 70°C
• Installation temperature: 0°C to 50°C
• Brand: SOLARIX, MPN: SXKD-5E-FTP-LSOH, EAN: 8595684701241

How to use

Install the cable following standard structured cabling practices: unroll the 305 m reel, route the cable through cable trays or conduits as required, and avoid tight bends below the minimum bend radius. Terminate to RJ45 connectors or patch panels compatible with CAT5E FTP cables, ensuring proper grounding of the foil shield where applicable. Test each link after termination to verify performance up to 1000Base-T and confirm parameters such as continuity, pair integrity and delay skew.

Recommendations

For best results, keep the cable away from high-power electrical sources to minimize interference, maintain the recommended installation temperature range (0°C to 50°C) during pulling, and ensure the FTP shield is grounded at a single point in the installation. Use appropriate cable management to avoid exceeding the specified bend radius and to preserve signal performance.
