NVR-recorder BCS BCS-B-NVR0401(2.0) 4-kanaals 1080P voor IP-camera's

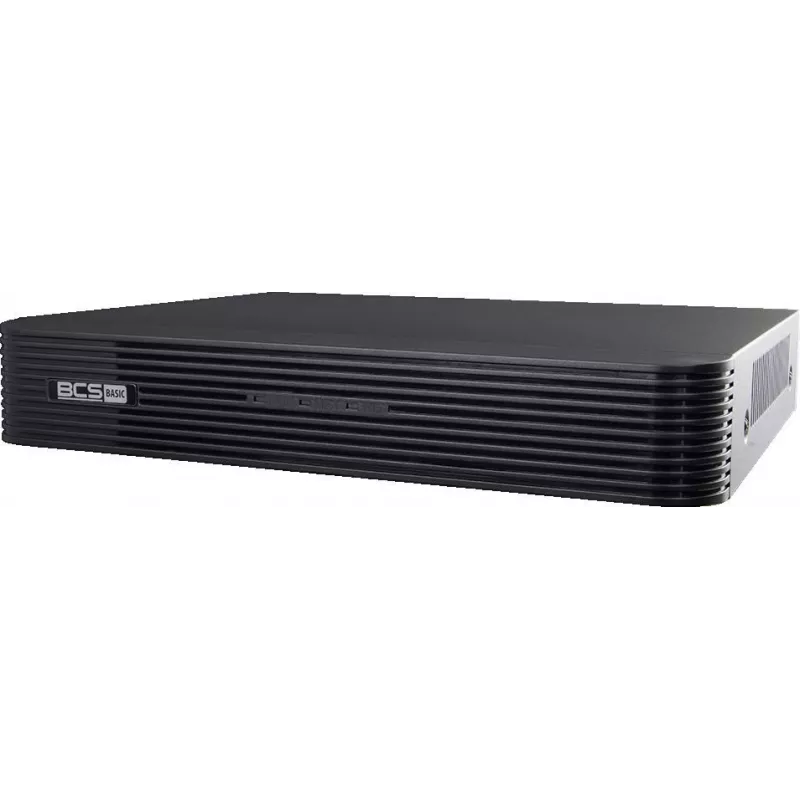

BCS BCS-B-NVR0401(2.0) is a compact 4-channel NVR recorder designed for IP camera systems with up to 1080P resolution. The device records and manages four IP streams simultaneously, stores footage locally, and enables network access for remote viewing and playback. With basic motion detection support and simple playback controls, this NVR centralizes video recording for small offices, retail outlets and home surveillance setups.

Advantages

The NVR supports full 1080P input per channel, ensuring clear recorded footage while keeping hardware requirements modest. Its four-channel capacity is optimized for small-scale surveillance systems, making installation and management straightforward. Local storage options allow continuous or scheduled recording, and built-in network features enable remote monitoring from compatible clients or mobile apps. Motion detection reduces review time by marking events for easier playback.

Suitable for

• Small offices and administrative rooms
• Retail shops and boutiques
• Home security and apartment monitoring
• Small warehouses and storage areas

Key specifications

• Number of channels: 4 IP channels
• Maximum input resolution: 1080P per channel
• Recording modes: continuous, scheduled, motion-triggered
• Playback: multi-channel and event-based playback support
• Network: remote viewing and management via standard network connection
• Storage: local HDD support (user-installed drive required)
• Video streams: simultaneous recording of up to four IP streams

How to use

Install compatible IP cameras and connect them to the same network as the NVR. Access the recorder’s configuration interface through a local monitor or via the network client to add cameras by IP address or automatic discovery. Configure recording schedules and enable motion detection zones where required. Insert a supported HDD to enable local storage, then format and allocate recording space in the storage settings. Use the playback interface or remote client to review footage and export clips when needed.

Recommendations

For reliable operation, use cameras that support 1080P output and ensure a stable network connection with sufficient bandwidth for multiple simultaneous streams. Choose a surveillance-grade hard drive with appropriate capacity and duty cycle for continuous video recording. Place motion detection zones to cover critical areas and adjust sensitivity to reduce false alarms. Regularly check firmware updates and back up important footage to external storage or network locations.
