Patchkabel DIGITUS CAT6 U-UTP slank, 2 m, groen

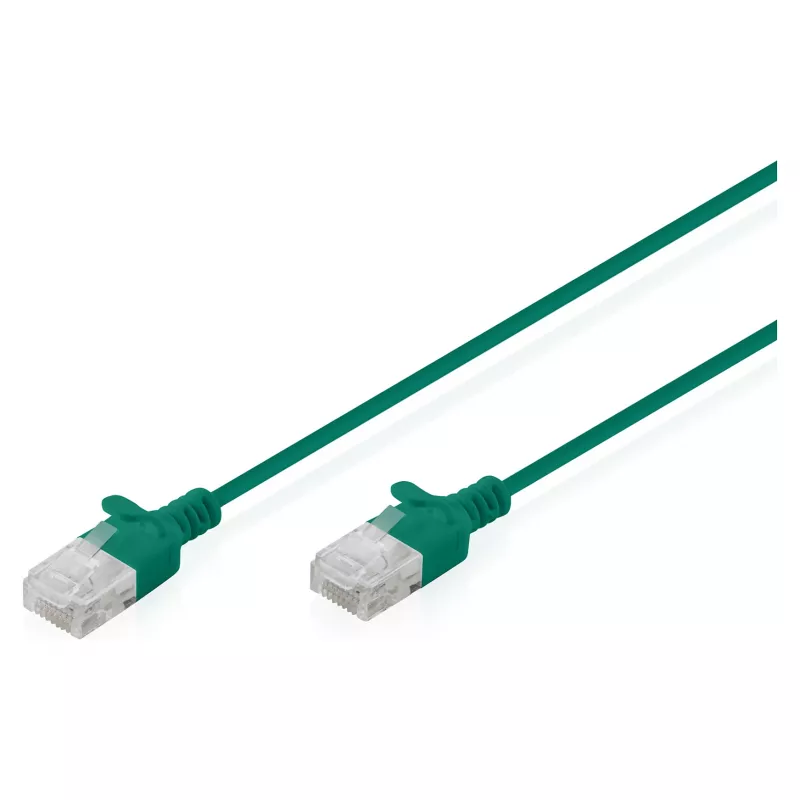

DIGITUS CAT6 U-UTP Slim patch cable, 2 m, green is an unshielded twisted-pair Ethernet cable designed to meet CAT6 performance for up to 1 Gbit/s networks. The slim cable profile with a 2.7 mm outer diameter and flexible jacket reduces bulk in high-density cabling routes and enables neat installations between desks, switches and patch panels. Standard RJ45 terminations with molded strain relief and locking-lever protection provide secure connections and reduce the risk of contact damage or connector breakage.

Advantages

The slim construction offers space-saving routing in cable ducts, trunking and behind equipment while retaining CAT6 transmission characteristics to 250 MHz. Stranded AWG 32/7 bare copper conductors and HD-PE insulation provide flexibility and mechanical durability for frequent handling and shorter connection runs. The cable supports PoE and PoE+ applications and is manufactured to international cabling standards, ensuring compatibility with structured networks.

Suitable for

• Desktop connections between PC and wall socket
• Patch panel to switch links in offices and telecom closets
• High-density cabling environments where reduced cable diameter is required
• Home networks and multimedia devices supporting Gigabit Ethernet

Key specifications

• Network class: CAT6, unshielded twisted pair (U-UTP)
• Rated frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)
• Length: 2 m
• Outer diameter: 2.7 mm ± 0.15 mm
• Conductor: stranded AWG 32/7 bare copper
• Insulation: HD-PE (high-density polyethylene)
• Outer jacket: LSZH (Low Smoke Zero Halogen)

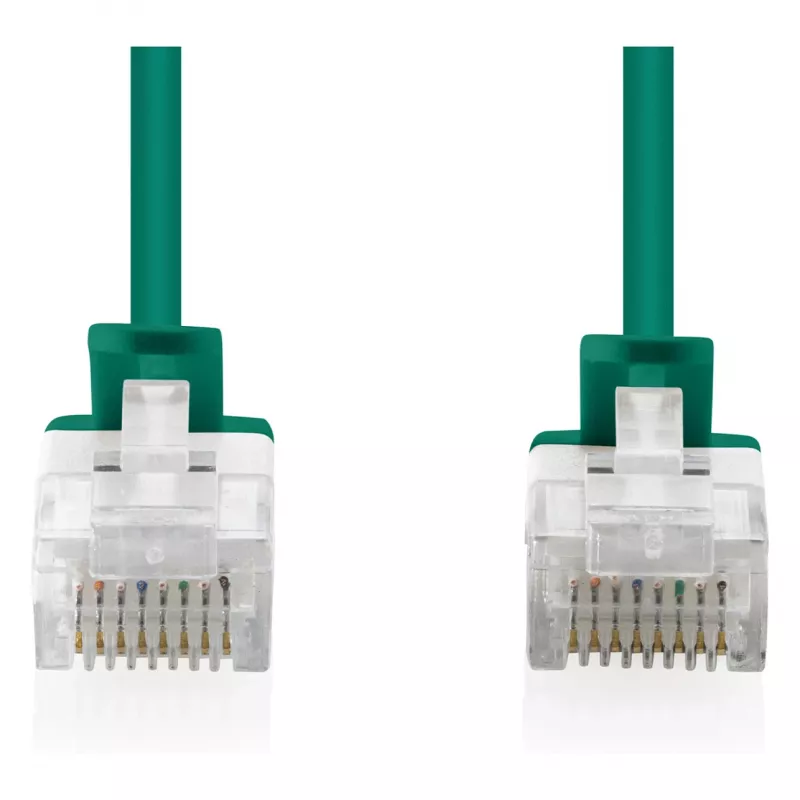

• Plug: RJ45 with molded anti-kink sleeve and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: compliant with IEC 60332-1 and IEC 61034
• Typical supported standards: IEEE 802.3 10BASE-T / 100BASE-T / 1000BASE-T
• Service life: approx. 750 mating cycles

How to use

Connect one RJ45 plug into the network device (PC, switch or router) and the other plug into the wall outlet or patch panel. Ensure the locking lever clicks into place to secure the connection. Route the slim cable through cable ducts or behind furniture as needed, observing the minimum bending radius to avoid sharp bends that could affect performance. For best results, avoid running the cable in parallel with power lines over long distances.

Recommendations

Use this DIGITUS CAT6 U-UTP Slim patch cable for short horizontal runs, dense patch panels and desktop installations where space is limited. Keep the cable within the specified bending radius and operating temperature range, and avoid excessive tensile stress to maintain reliable Gigabit Ethernet and PoE/PoE+ performance.
