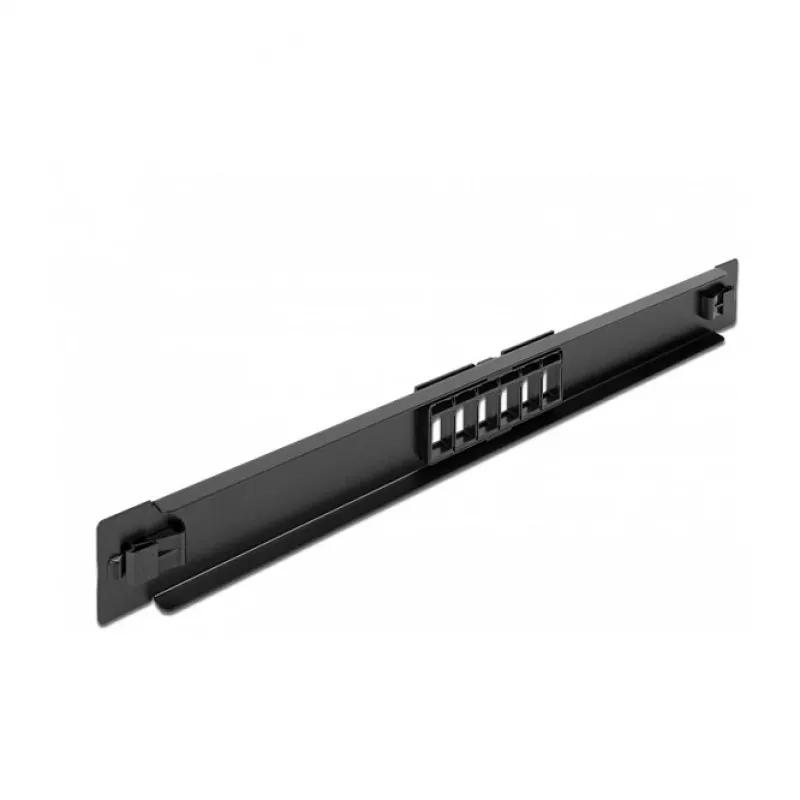

Patchpaneel DeLOCK 66820

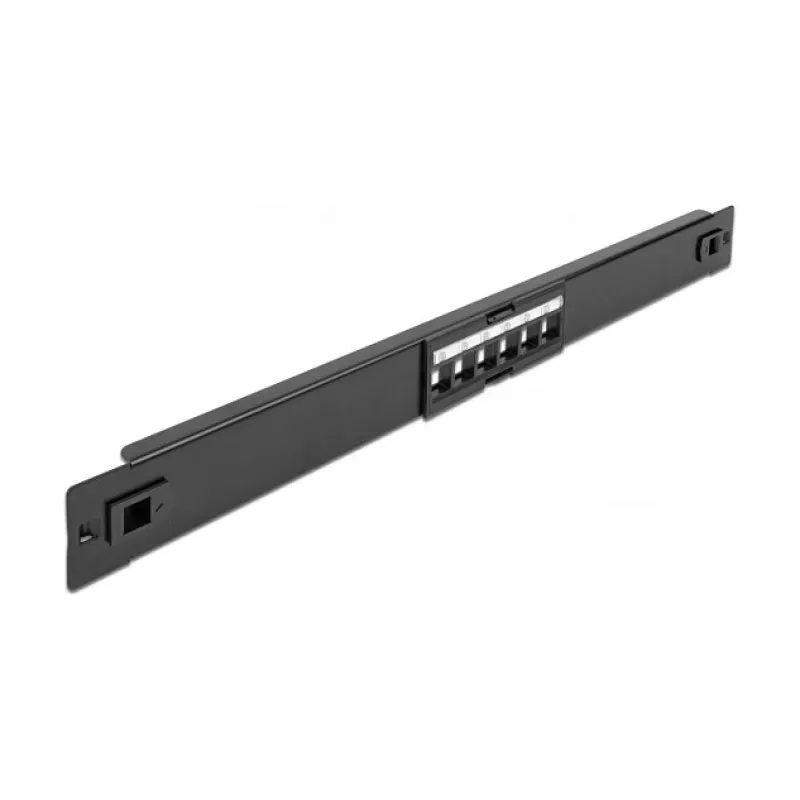

The DeLOCK 66820 is a 1U metal patch panel designed for standard 19" network cabinets. With a width of 482 mm, height of 44 mm and depth of 12 mm, the black metal panel provides space for mounting six keystone modules and helps organise network cabling in server rooms and data centres.

Advantages

The patch panel is made of robust metal for long-term durability and a uniform appearance in rack installations. Its compact 1U form factor saves rack space while accommodating up to 6 keystone modules. A tool-free mounting mechanism with integrated clips allows quick installation and secure locking inside a 19" cabinet.

Suitable for

• Organising Ethernet and network cabling in server rooms
• Small to medium-sized patching requirements in data centres or comms cabinets
• Environments where quick, tool-free 19" rack installation is required

Key specifications

• Model: DeLOCK 66820
• Rack unit: 1U
• Compatible rack width: 19" (482 mm)
• Dimensions (W×H×D): 482 × 44 × 12 mm
• Number of keystone ports: 6
• Colour: Black

How to use

Place the patch panel into the desired position in a 19" network cabinet and push the integrated mounting clips outwards until the panel locks. Install compatible keystone modules into the panel's openings and terminate cabling according to the keystone module instructions. Verify that the panel is firmly seated and cabling is routed to avoid strain.

Recommendations

For reliable operation, use compatible keystone modules and follow standard cable management practices: label ports, maintain appropriate bend radius for cables and avoid overloading the panel beyond its six-module capacity.
