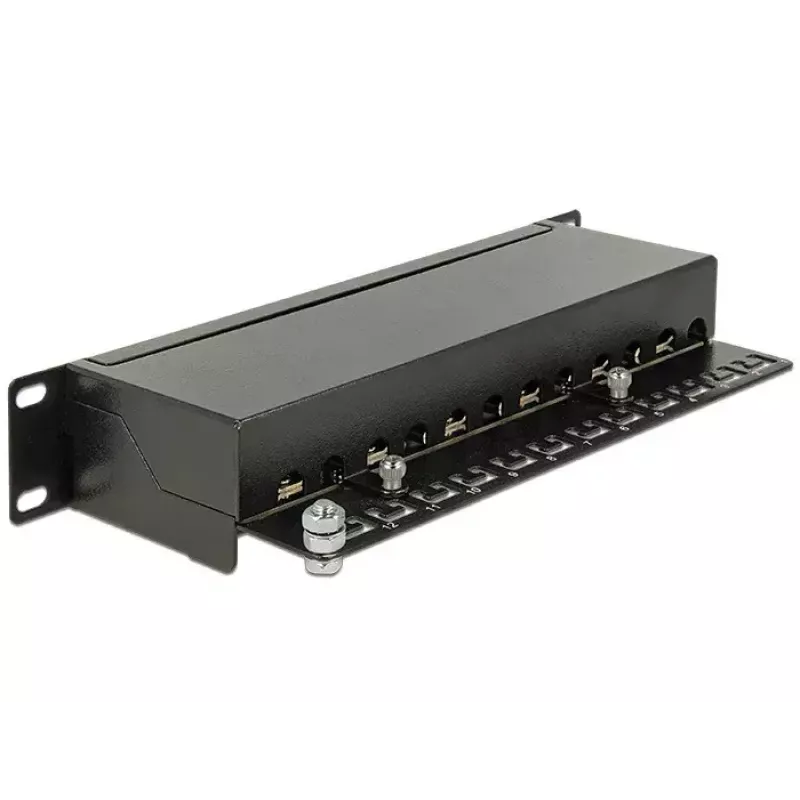

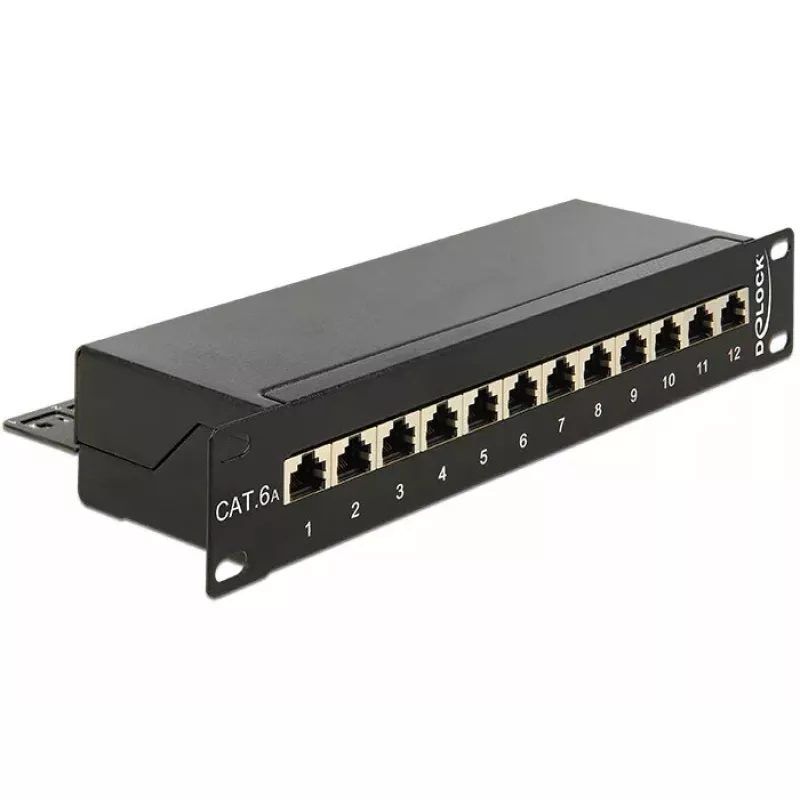

Patchpanel 1U DeLOCK 43310

The DeLOCK 43310 patch panel is a 1U, 10" rack-mountable panel designed for organizing and terminating Cat6a network cabling. Constructed from durable metal with a black finish, it accommodates up to 12 ports and provides a compact solution for structured cabling installations with dimensions of 254 mm (W) x 44 mm (H) x 109 mm (D).

Advantages

The metal construction offers mechanical stability and durability for rack environments. The panel supports up to 12 network cables terminated at LSA blocks using a punch-down tool, enabling neat and reliable connections. Its 1U height and compact depth save rack space while maintaining compatibility with standard 10" racks.

Suitable for

• Small to medium rack-based network closets
• Structured cabling for Cat6a installations
• Patch and distribution points in server cabinets

Key specifications

• Brand: DELOCK
• Model: 43310
• Form factor: 1U, 10" rack mount
• Ports: 12 (terminated on LSA blocks)
• Cable standard: Cat6a
• Material: Metal
• Colour: Black
• Dimensions: 254 mm x 44 mm x 109 mm
• MPN: 43310
• EAN: 4043619433100

How to use

Mount the patch panel in a compatible 10" rack using appropriate rack screws. Route each Cat6a cable to the rear of the panel, strip the outer jacket and position individual conductors into the LSA blocks according to the wiring scheme. Use a punch-down tool to terminate each conductor securely. After termination, tidy and label the cables as needed for identification.

Recommendations

For optimal performance, use Cat6a-rated cables and follow the T568A or T568B wiring standard consistently. Ensure proper cable management and strain relief to maintain connection reliability and to meet installation best practices.
